Remove front bumper cover
NOTE:
RISK OF DAMAGE
Failure to comply with the specifications for closing the hood.
Paintwork damage on the A-pillar, scratches or flaking of the paint.
Failure to comply with the specifications for closing the hood.
Paintwork damage on the A-pillar, scratches or flaking of the paint.
- Mask off the hood at the corners.
- Let the hood fall maximum 30-40 cm when closing it.
NOTE:
TECHNICAL INFORMATION
To ensure the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may only be repainted in compliance with the following instructions:
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning lamp is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.
To ensure the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may only be repainted in compliance with the following instructions:
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning lamp is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.
Preliminary work
- Refer to MOVING THE HOOD TO THE SERVICE POSITION .
- Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to REMOVING THE NUMBER PLATE BASEPLATE FOR THE FRONT LICENSE PLATE .
- Refer to REMOVING THE RADIATOR GRILLE FRAME .
- Refer to REMOVING THE FRONT ORNAMENTAL GRILLE/RADOME .
Deactivate vehicle-specific high-voltage or low-voltage vehicle electrical system
NOTE:
RISK OF DAMAGE
Damage to the high-voltage battery due to the failure to deactivate the high-voltage system before disconnecting the vehicle battery via the high-voltage service disconnect in BEV and PHEV vehicles.
Damage to high-voltage system!
Damage to the high-voltage battery due to the failure to deactivate the high-voltage system before disconnecting the vehicle battery via the high-voltage service disconnect in BEV and PHEV vehicles.
Damage to high-voltage system!
- Before disconnecting the vehicle battery, it is essential to deactivate the high-voltage system via the high-voltage service disconnect in BEV and PHEV vehicles.
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel. For additional information, see:
- Deactivate the vehicle electrical system.
NOTE:
Perform the steps on the right and left side.
NOTE:
Perform the steps on the right and left side.

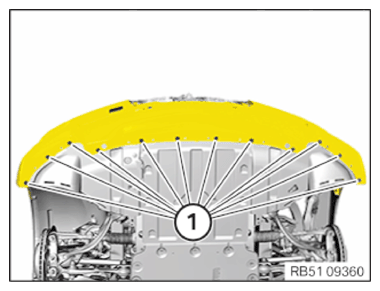

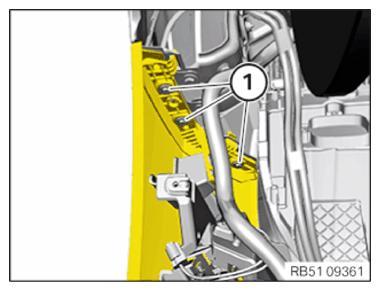

- Loosen screws (1).

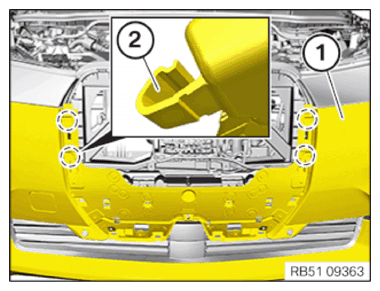

- Release the bumper cover (1) at the snap-in lugs (2) with a suitable screwdriver.

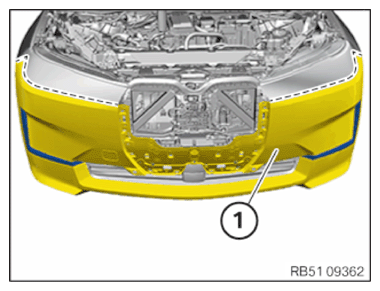

- Carefully release the bumper cover (1) from the detents in the area of the dotted line.
- Pull bumper cover (1) forward carefully and, if necessary, unlock and disconnect additional plug connections.
- Remove bumper cover (1) towards front.
