Retrofit taxi/rental vehicle equipment - AN82.25-P-0001EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 4/12/13 up to model year 2014 without CODE 1U9 (Lastenstufen-Konzept) without CODE 413 (Automatic panoramic sliding sunroof) without CODE 550 (Trailer coupling) without CODE 950 (AMG Sports package)

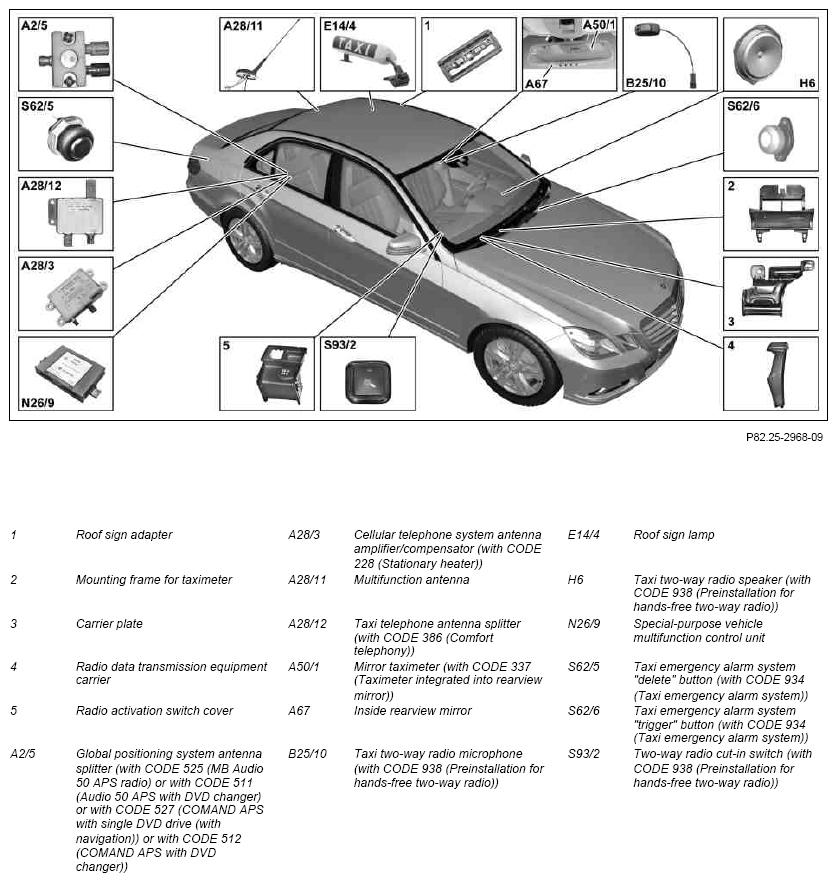

Fig 1: Vehicle Equipment Components (1 Of 2)
G09977512Courtesy of MERCEDES-BENZ USA

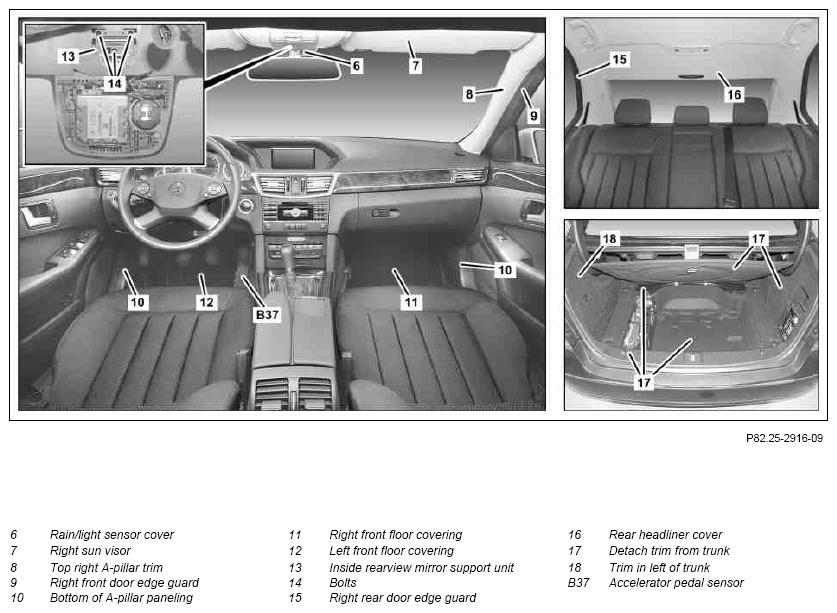

Fig 2: Vehicle Equipment Components (2 Of 2)
G09977513NOTESREMOVINGREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRIMPORTANTSPECIAL TOOLSPECIAL TOOLREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRIMPORTANTREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRINSTALLINGIMPORTANTREFER TO TESTING & REPAIRNOTESIMPORTANTTORQUE SPECIFICATIONSPECIAL TOOLSPECIAL TOOLTORQUE SPECIFICATIONIMPORTANTIMPORTANTREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRIMPORTANTREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRSPECIAL TOOLNOTESREFER TO TESTING & REPAIRIMPORTANTREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRIMPORTANTIMPORTANTREFER TO TESTING & REPAIRIMPORTANTREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRIMPORTANTSPECIAL TOOLSPECIAL TOOLREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRIMPORTANTREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRIMPORTANTREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRINSPECTIMPORTANTCourtesy of MERCEDES-BENZ USA
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVING Remove
1 Switch off ignition and remove transmitter key
2 Remove door lining on left front door Only if the CODE 938 (Preinstallation for hands-free two-way radio) is to be retrofitted.
REFER TO TESTING & REPAIR     AR72.10-P-1000CW
3 Remove left front door speaker Only if the CODE 938 (Preinstallation for hands-free two-way radio) is to be retrofitted.
REFER TO TESTING & REPAIR     AR82.62-P-7833-01EW
    IMPORTANT The left front door speaker is no longer required.
    SPECIAL TOOL Rivet milling cutter Fig 5
    SPECIAL TOOL Milling cutter crown Fig 4
4 Remove door sill moldings
REFER TO TESTING & REPAIR     AR68.30-P-4100EW
5 Remove right sun visor (7) with counterbearing
6 Remove right front grab handle
7 Detach right front door edge guard (9) in area of headliner
8 Remove glove compartment
REFER TO TESTING & REPAIR     AR68.10-P-1200EW
9 Remove right trim of A-pillar at top (8)
10 Remove right rear door edge guard (15)
11 Remove left-hand panel under instrument panel
12 Remove left paneling on A-pillar at bottom (10)
13 Remove accelerator pedal sensor (B37)   AR30.12-P-1321EW
14 Unclip and remove rain/light sensor cover (6)
15 Remove overhead control panel control unit or overhead control panel electronics
REFER TO TESTING & REPAIR     AR82.20-P-1000CW
    IMPORTANT Depending on vehicle equipment.
16 Remove inside rearview mirror (A67)
REFER TO TESTING & REPAIR     AR68.40-P-0001SX
17 Unscrew screws/bolts (14) and remove inside rearview mirror support unit (13)
18 Remove center console
REFER TO TESTING & REPAIR     AR68.20-P-2000EW
    The front stowage compartment or ashtray is no longer required.
19 Remove front seats
REFER TO TESTING & REPAIR     AR91.10-P-1000CW
20 Disconnect ground line of battery
REFER TO TESTING & REPAIR     AR54.10-P-0003EW
21 Remove bottom B-pillar panels
22 Remove seat cushion in the rear
REFER TO TESTING & REPAIR   MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 except CODE 224 (Design individual rear seat system) AR91.12-P-1020CW
REFER TO TESTING & REPAIR   MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 with CODE 224 (Design individual rear seat system) AR91.12-P-1020EW
23.1 Remove backrest in rear MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 except CODE 287 (Folding rear seat backrests)
REFER TO TESTING & REPAIR   MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 except CODE 224 (Design individual rear seat system) AR91.12-P-1620CW
REFER TO TESTING & REPAIR   MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 with CODE 224 (Design individual rear seat system) AR91.12-P-1620EW
23.2 Release backrests in rear and fold over MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 with CODE 287 (Folding rear seat backrests)
24 Remove side rear side paneling
REFER TO TESTING & REPAIR     AR68.30-P-4780CW
25 Remove left side trim in rear passenger compartment Only if the CODE 938 (Preinstallation for hands-free two-way radio) is to be retrofitted.
REFER TO TESTING & REPAIR     AR68.30-P-4780CW
26 Remove right front floor covering (11) and left front floor covering (12)
27 Remove floor covering in rear passenger compartment
28 Remove multifunction antenna mock-up or multifunction antenna (A28/11) Only if the multifunction antenna (A2811) for taxi with corresponding antenna lines is to be retrofitted.
REFER TO TESTING & REPAIR   Model 212.0## (except 212.074/075/076/092/093/094/095) 1# up to model year 2011 AR82.70-P-8951EW
REFER TO TESTING & REPAIR   Model 212.0## (except 212.074/075/076/092/093/094/095) 1# as of model year 2011 AR82.70-P-8951EL
29 Remove rear headliner cover (16) Only if the multifunction antenna (A28/11) for taxi with corresponding antenna lines is not to be retrofitted.
30 Remove cover (17) from trunk
REFER TO TESTING & REPAIR     AR68.30-P-4600EW
31 Remove left cover from trunk (18) Only if the CODE 938 (Preinstallation for hands-free two-way radio) is to be retrofitted.
REFER TO TESTING & REPAIR     AR68.30-P-4600EW
32 Remove rear SAM control unit with fuse and relay module and place to one side with electrical lines still connected
REFER TO TESTING & REPAIR     AR54.21-P-1258EW
33 Remove left drip rail Only if the CODE 342 (Roof sign connection for taxi) is to be retrofitted.
REFER TO TESTING & REPAIR     AR88.80-P-4000EW
INSTALLING Install
34 Retrofit wiring harness for roof sign lamp (E144) into left drip rail Only if the CODE 342 (Roof sign connection for taxi) is to be retrofitted.
      AN82.25-P-1000-02EW
    IMPORTANT The roof sign adapter (1) is to be handed over to the customer with the relevant screw. It will be required later on for mounting the roof sign lamp (E144).
35 Install left drip rail Only if the CODE 342 (Roof sign connection for taxi) is to be retrofitted.
REFER TO TESTING & REPAIR
    NOTES Make sure that the wiring harness for the roof sign lamp (E144) is not damaged by getting caught in moving parts when mounting the drip rail.
Otherwise the roof sign lamp (E14/4) may malfunction.
IMPORTANT Place the excess length of the wiring harness for the roof sign lamp (E144) into the engine compartment.		 AR88.80-P-4000EW
36 Retrofit special vehicle multifunction control unit (N269)   AN82.25-P-1000-03EW
37 Retrofit wiring harness for taxi/rental vehicle   AN82.25-P-1000-01EW
    TORQUE SPECIFICATION Right front seat crossmember ground point *BA00.19-P-1024-01D
    SPECIAL TOOL Wiring harness repair kit Fig 3
38 Connect wiring harness of roof sign lamp (E14/4) Only if the CODE 342 (Roof sign connection for taxi) is to be retrofitted.
      AN82.25-P-1000-22EW
    White sealing compound, 310 ml, DBL 6069.20 *BR00.45-Z-1003-01A
    SPECIAL TOOL Wiring harness repair kit Fig 3
39 Retrofit multifunction antenna (A2811) for taxi Only if the multifunction antenna (A2811) for taxi with corresponding antenna lines is to be retrofitted.
      AN82.71-P-1000-06EW
    TORQUE SPECIFICATION Bolt, antenna base to vehicle roof *BA82.62-P-1001-01D
40 Retrofit wiring harness for two-way radio   AN82.71-P-1000-01EW
41 Retrofit antenna line for GPS signal MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 except CODE 510 (Audio 20 with CD changer) and except CODE 523 (MB Audio 20 radio) AN82.62-P-0001-04EW
    MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 with CODE 510 (Audio 20 with CD changer), MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 with CODE 523 (MB Audio 20 radio) AN82.62-P-0001-04EWA
42 Retrofit cellular telephone system antenna amplifier/compensator (A283) MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 with CODE 228 (Stationary heater) and except CODE 386 (Comfort telephony)
      AN82.70-P-0008-04EW
43 Retrofit antenna line for telephone Only if the CODE 938 (Preinstallation for hands-free two-way radio) is to be retrofitted.
    MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 except CODE 228 (Stationary heater) and except CODE 386 (Comfort telephony) AN82.62-P-0001-04EWB
    MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 with CODE 386 (Comfort telephony) and except CODE 228 (Stationary heater) AN82.62-P-0001-04EWC
    MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 with CODE 228 (Stationary heater)
IMPORTANT MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 up to model year. 2014 with CODE 386 (Comfort telephony) except CODE 228 (Stationary heater)
If CODE 938 (Preinstallation for hands-free two-way radio) is retrofitted, comfort telephony can no longer be used, since the comfort telephony antenna signal is used for the hands-free two-way radio preinstallation.		 AN82.62-P-0001-04EWD
44 Install covering for rear headliner (16)
45 Install floor covering in rear passenger compartment
46 Install right front floor covering (11) and left front floor covering (12) IMPORTANT The individual branch-off lines of the taxi/rental vehicle wiring harness that are not yet connected must be placed over the right front floor covering (11) or the left front floor covering (12). They will be routed further later on.
47 Install accelerator pedal sensor (B37)
REFER TO TESTING & REPAIR     AR30.12-P-1321EW
48 Install right side trim panel in rear
REFER TO TESTING & REPAIR     AR68.30-P-4780CW
49 Install left side trim panel in rear Only if the CODE 938 (Preinstallation for hands-free two-way radio) was retrofitted.
REFER TO TESTING & REPAIR     AR68.30-P-4780CW
50.1 Install backrest in rear MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 except CODE 287 (Folding rear seat backrests)
REFER TO TESTING & REPAIR   MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 except CODE 224 (Design individual rear seat system) AR91.12-P-1620CW
REFER TO TESTING & REPAIR   MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 with CODE 224 (Design individual rear seat system) AR91.12-P-1620EW
50.2 Fold back rear backrests MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 with CODE 287 (Folding rear seat backrests)
IMPORTANT Do not engage backrests in the locks.
51 Install seat cushion in rear
REFER TO TESTING & REPAIR   MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 except CODE 224 (Design individual rear seat system) AR91.12-P-1020CW
REFER TO TESTING & REPAIR   MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 with CODE 224 (Design individual rear seat system) AR91.12-P-1020EW
52 Install bottom B-pillar panels
53 Install left paneling on A-pillar at bottom (10)
54 Install door sill moldings
REFER TO TESTING & REPAIR     AR68.30-P-4100EW
55 Install right trim of A-pillar at top (8)
56 Fasten right front door edge guard (9)
57 Install right rear door edge guard (15)
58 Install right front grab handle
59 Retrofit glove compartment with wiring harness for taxi/rental vehicle If the corresponding branch-off line of the wiring harness for the taxi/rental vehicle is to be routed in the glove compartment.
      AN82.25-P-1000-13EW
    SPECIAL TOOL Pliers Fig 6
60 Strap down branch-off line of wiring harness for taxi/rental vehicle and use cable ties to fix in the passenger side footrest area If the corresponding branch-off line of the wiring harness for the taxi/rental vehicle was not routed in the glove compartment.
NOTES Wrap the AUX connection electrical connector or Media Interface electrical connector on the branch-off line of the wiring harness for the taxi/rental vehicle with felt tape.
Damage due to chafing can otherwise occur.
61 Retrofit carrier plate (3) of radio data transmission equipment carrier (4)   AN82.25-P-1000-14EW
62 Install glove compartment If the corresponding branch-off line of the wiring harness for the taxi/rental vehicle was not routed in the glove compartment.
REFER TO TESTING & REPAIR     AR68.10-P-1200EW
    IMPORTANT The left panel under the instrument panel and the panel at the side of the instrument panel on the right are installed at a later point.
63 Install trim piece on instrument panel at right If the corresponding branch-off line of the wiring harness for the taxi/rental vehicle was routed in the glove compartment.
REFER TO TESTING & REPAIR     AR68.10-P-1180EW
64 Retrofit radio data transmission equipment carrier (4)   AN82.25-P-1000-15EW
65 Retrofit taxi two-way radio speaker (H6) Only if the CODE 938 (Preinstallation for hands-free two-way radio) is to be retrofitted.
      AN82.62-P-0002-01EW
    Blind/self-piercing riveting
66 Install door lining at left front door Only if the CODE 938 (Preinstallation for hands-free two-way radio) was retrofitted.
REFER TO TESTING & REPAIR     AR72.10-P-1000CW
67 Retrofit taxi emergency alarm system "Trigger" button (S626) Only if the CODE 934 (Taxi emergency alarm system) is to be retrofitted.
      AN82.25-P-1000-11EW
68 Install left panel below instrument panel
69 Install right panel below instrument panel
REFER TO TESTING & REPAIR     AR68.10-P-1520CW
70 Install panel at side of instrument panel at right
71 Install front seats
REFER TO TESTING & REPAIR     AR91.10-P-1000CW
72 Retrofit inside rearview mirror (A67) with mirror taximeter (A501) Only if the CODE 337 (Taximeter integrated into rearview mirror) is to be retrofitted.
      AN82.25-P-1000-17EW
73 Install inside rearview mirror support unit (13) and tighten with screws/bolts (14) Only if CODE 337 (Taximeter integrated into rearview mirror) was not retrofitted.
74 Install inside rearview mirror (A67) Only if CODE 337 (Taximeter integrated into rearview mirror) was not retrofitted.
REFER TO TESTING & REPAIR     AR68.40-P-0001SX
75 Install overhead control panel control unit or overhead control panel electronics
REFER TO TESTING & REPAIR     AR82.20-P-1000CW
    IMPORTANT Route wiring harnesses and electrical connectors such that the overhead control panel control unit or overhead control panel electronics can be installed free of tension.
IMPORTANT
MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 except CODE 414 (Sliding roof) Taxi-specific interior illumination cannot be realized on these vehicles as the overhead control panel electronics are not networked with the Controller Area Network (data bus). A change to a networked overhead control panel control unit is not to be conducted for costing reasons.
76 Install right sun visor (7) with thrust bearing
77 Retrofit taxi two-way radio microphone (B2510) Only if the CODE 938 (Preinstallation for hands-free two-way radio) is to be retrofitted.
      AN82.71-P-1000-10EW
78 Install rain/light sensor cover (6)
79 Retrofit two-way radio cut-in switch (S932) Only if the CODE 938 (Preinstallation for hands-free two-way radio) is to be retrofitted.
      AN82.71-P-1000-04EW
80 Install center console
REFER TO TESTING & REPAIR     AR68.20-P-2000EW
    IMPORTANT Do not install selector lever cover, rear stowage compartment or ashtray and rear air vent. Installation occurs at a later point.
81.1 Route and connect taxi/rental vehicle wiring harness in area of center console Only if the CODE 938 (Preinstallation for hands-free two-way radio) is to be retrofitted.
      AN82.25-P-1000-20EW
81.2 Route and connect taxi/rental vehicle wiring harness in area of center console Only if the CODE 938 (Preinstallation for hands-free two-way radio) is not to be retrofitted.
      AN82.25-P-1000-20EWA
82 Install rear ashtray or stowage compartment
REFER TO TESTING & REPAIR     AR68.20-P-2230EW
83 Install front A/C operating unit
REFER TO TESTING & REPAIR     AR83.40-P-6350EW
84 Retrofit taximeter installation frame (2) for taximeter in center console   AN82.25-P-1000-21EW
    IMPORTANT Installed in place of the front stowage compartment or ashtray.
85 Route and connect taxi/rental vehicle wiring harness in trunk   AN82.25-P-1000-18EW
    SPECIAL TOOL Right wheel arch trunk ground point *BA00.19-P-1011-01D
    SPECIAL TOOL Wiring harness repair kit Fig 3
86 Install rear SAM control unit with fuse and relay module
REFER TO TESTING & REPAIR     AR54.21-P-1258EW
87 Retrofit taxi emergency alarm system "Delete" button (S625) Only if the CODE 934 (Taxi emergency alarm system) is to be retrofitted.
      AN82.25-P-1000-10EW
88 Fold rear backrest forward MODEL 212.0## (except 212.074/075/076/092/093/094/095) 1# up to 12.04.13 with CODE 287 (Folding rear seat backrests)
89 Install paneling in luggage compartment (17)
REFER TO TESTING & REPAIR     AR68.30-P-4600EW
    IMPORTANT If CODE 941 (Preinstallation for radio data transmission) was retrofitted, the spare wheel well paneling is no longer to be installed. Hand it over to the customer.
90 Install left panel in luggage compartment (18) Only if the CODE 938 (Preinstallation for hands-free two-way radio) was retrofitted.
REFER TO TESTING & REPAIR     AR68.30-P-4600EW
91 Route radio data transmission wiring harness in trunk If the CODE 941 (Preinstallation for radio data transmission) was retrofitted.
      AN82.71-P-1000-12EW
92 Connect ground cable to battery
REFER TO TESTING & REPAIR     AR54.10-P-0003EW
  Update Vehicle Documentation (VeDoc)
93 Enter special equipment into the online vehicle data card IMPORTANT Code 965 (Electrical preinstallation for rental vehicle)
Code 342 (Roof sign connection for taxi)
Code 337 (Taximeter integrated in rearview mirror)
Code 934 (Taxi emergency alarm system) CODE 938 (Preinstallation for hands-free two-way radio) or
Code 941 (Preinstallation for radio data transmission)
94 Attach note "Taxi/rental vehicle equipment retrofitted as per AN82.25-P-0001EW " under field organization texts to design group 82
95 Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
REFER TO TESTING & REPAIR     AD00.00-P-2000-04A
96 Carry out variant coding using software calibration number (SCN)
97 Disconnect diagnostic system
REFER TO TESTING & REPAIR     AD00.00-P-2000-04A
INSPECT Check
98 Perform function test IMPORTANT See operating instructions entitled, "Supplementary Instructions for Taxi/Rental Vehicle".
99 Place supplementary instructions for taxi/rental vehicle into vehicle
GROUND POINTS

Number Designation MODEL 212
BA00.19-P-1011-01D Right wheel arch trunk ground point W7/8 Nm 10
GROUND POINTS

Number Designation MODEL 212
BA00.19-P-1024-01D Right front seat crossmember ground point W19 Nm 10
ANTENNA

Number Designation MODEL 212
BA82.62-P-1001-01D Bolt, antenna base to vehicle roof Nm 3
Fig 3: Identifying Wiring Harness Repair Kit (220 589 01 99 00)
G09977514Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Milling Cutter Crown (171 589 00 39 01)
G09977515Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Rivet Milling Cutter (171 589 00 39 00)
G09977516Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Pliers (169 589 00 37 00)
G09977517Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-01A White sealing compound, 310 ml, DBL 6069.20 A 001 989 63 20
PARTS ORDERING NOTE

Part no. Designation Quantity
KG 99 (see EPC) Scope of delivery for taxi/rental vehicle 1
scientia non olet · About LEMON Manuals
