Remove/install inside rearview mirror - AR68.40-P-0001SX
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212, 216.3, 218, 221.0
MODEL 221.1 except CODE (Z07) Top protection

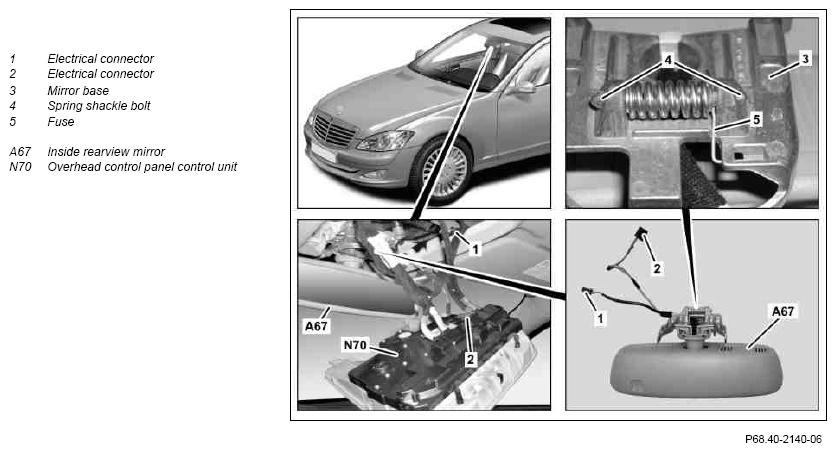

Shown on model 221 with code (414) Power glass tilting/sliding roof
MODIFICATION NOTES
| 10.11.10 | Adjust inside rearview mirror to steering variant added | Step 10 | AR68.40-P-0001-01A |
| Removing | |||
| Risk of injury Skin, eye and respiratory system irritation may occur through contact or inhalation of substances contained in the mirror lens | Wear protective gloves and safety glasses. | AS60.00-Z-0008-01R | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1.1 | Unclip rain sensor or rain/light sensor cover and remove | Model 204, 207.3, 212, 216, 218, 221 Model 207.4 without code (513) Speed Limit Assist or code (608) Automatic high beam control |
|
| 1.2 | Push rain sensor or rain/light sensor cover completely toward front and remove | Model 207.4 with code (513) Speed limit assist or code (608) Automatic high beam control | |
| 2 | Detach overhead control panel control unit (N70) or electronic overhead control panel and allow to hang down with electrical lines connected | Model 216, 221 | AR82.20-P-1000SX |
| Model 204, 207, 212, 218 | AR82.20-P-1000CW | ||
| 3 | Disconnect electrical connectors (1, 2) | ||
| 4.1 | Unclip inside rearview mirror (A67) from mirror holder with screwdriver | Models 204, 207.3, 212, 216, 218, 221 | |
| 4.2 | Turn inside rearview mirror (A67) on mirror base (3) to right with open end wrench and remove from mirror holder | Model 207.4 | |
| Install | |||
| 5 | Press together spring shackle bolts (4) on mirror base (3) using pliers | Models 204, 207.3, 212, 216, 218, 221 |
|
| 6 | Connect electrical connectors (1, 2) | ||
| 7.1 | Position inside rearview mirror (A67) on mirror support and arrest spring shackle bolt (4) in mirror support | Models 204, 207.3, 212, 216, 218, 221 |
|
| 7.2 | Position inside rearview mirror (A67) on mirror holder and turn mirror base (3) to left with open end wrench | Model 207.4 | |
| 8 | Install overhead control panel control unit (N70) or electronic overhead control panel | Model 216, 221 | AR82.20-P-1000SX |
| Model 204, 207, 212, 218 | AR82.20-P-1000CW | ||
| 9.1 | Clip in rain sensor or rain/light sensor cover | Model 204, 207.3, 212, 216, 218, 221 Model 207.4 without code (513) Speed Limit Assist or code (608) Automatic high beam control |
|
| 9.2 | Position rain sensor or rain/light sensor cover at front and push completely toward rear | Model 207.4 with code (513) Speed limit assist or code (608) Automatic high beam control | |
| 10 | Adjust inside rearview mirror to steering variant | Model 207.4, 218, model 204, 207.3, 212, 216, 221 as of model year 2011 When replacing inside rearview mirror (A67). |
AR68.40-P-0001-01A |
| 11.1 | Program national version on garage door opener transmitter unit | Model 216, 221 when replacing inside rearview mirror (A67) on vehicles with code (231) Garage door opener. | |
| Notes on programming garage door opener transmitter unit | AH68.05-P-0002-01A | ||
| 11.2 | Perform initial startup for garage door opener transmitter unit with Star Diagnosis | Model 204, 207, 212, 218 when replacing inside rearview mirror (A67) on vehicles with code (231) Garage door opener or code (232) Garage door opener with frequency of 284-390 MHz. | AD00.00-P-2000-04A |
| Notes on programming garage door opener transmitter unit | AH68.05-P-0002-01A |
