Remove paneling in trunk - AR68.30-P-4600EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/1
Shown with code (287) Through-loading feature
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||

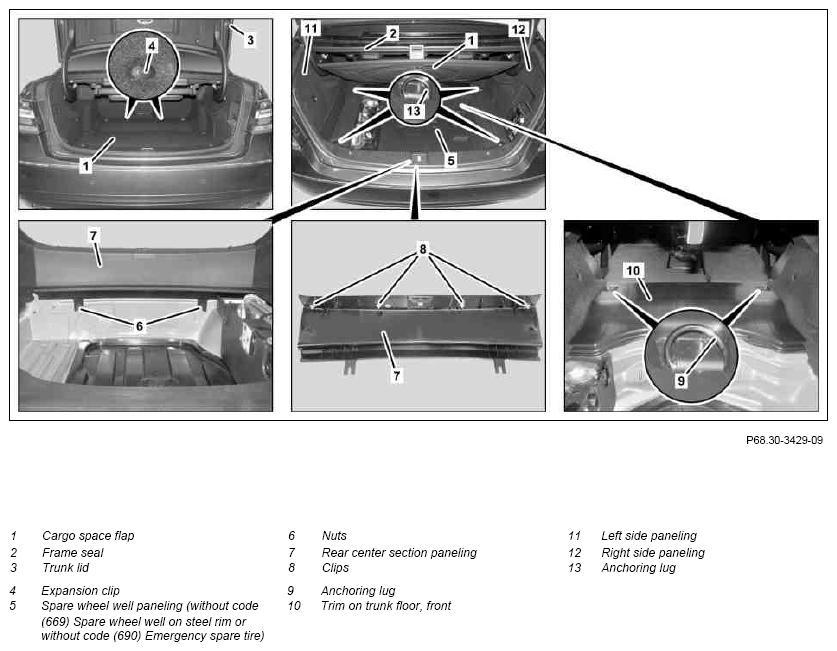

| 1.1 | Lift load compartment flap (1) and hook into sealing frame (2) on trunk lid (3) | If front trunk floor paneling (10) is not removed. | |
| 1.2 | Remove expansion clips (4) and load compartment flap (1) | If front trunk floor paneling (10) is removed. | |
| Figure | |||

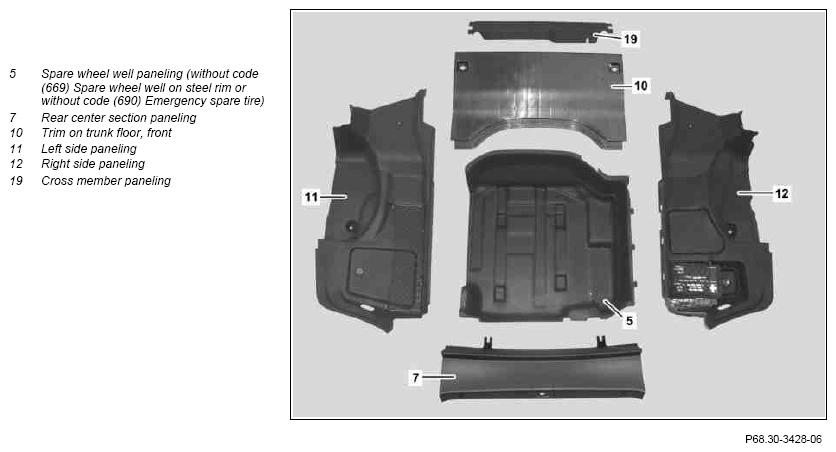

| 2 | Remove spare tire well paneling (5) | MODEL 212.0/1 without CODE 669 (Collapsible spare wheel) without CODE 690 (Collapsible spare wheel) |
|
| 3 | Loosen nuts (6) | ||
| 4 | Unclip rear center section paneling (7) with assembly wedge from clips (8) and remove upward | Figure | |
| 5.1 | Unlock rear seat backrest and push forward until left side paneling (11) and right side paneling (12) is exposed behind rear seat backrest | MODEL 212.0/1 without CODE 287 (Through-loading feature) When removing left side paneling (11) and right side paneling (12). |
|
| 5.2 | Fold over left and right rear seat backrest | MODEL 212.0/1 without CODE 287 (Through-loading feature) When removing left side paneling (11) and right side paneling (12). |
|
| 6.1 | Remove anchoring lug (9) on left and right on front trunk floor paneling (10) | MODEL 212.0/1 with CODE 287 (Through-loading feature) |
|
| *BA68.50-P-1001-03I | |||
| 6.2 | Remove anchoring lug on left and right on front trunk floor paneling (10) | MODEL 212.0/1 without CODE 287 (Through-loading feature) |
|
| *BA68.50-P-1001-03I | |||
| 7 | Remove front trunk floor paneling (10) | ||
| 8 | Remove anchoring lug (13) or anchoring hook from left side paneling (11) and right side paneling (12) | ||
| *BA68.50-P-1001-03I | |||

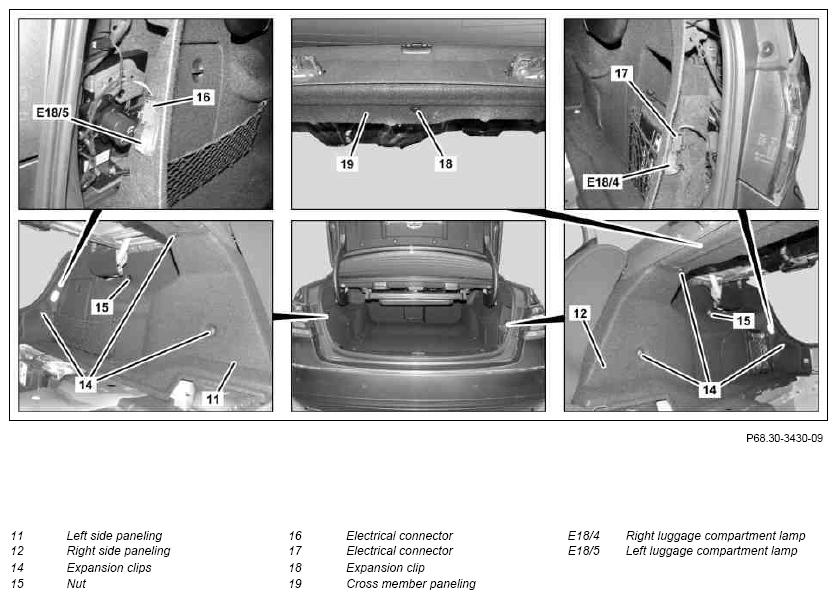

| 9 | Remove expansion clips (14) on left side paneling (11) and right side paneling (12) | Figure | |
| 10 | Unscrew nuts (15) | ||
| 11 | Disconnect electrical connector (16) from left trunk lamp (E18/5) | ||
| 12 | Disconnect electrical connector (17) from right trunk lamp (E18/4) | ||
| 13 | Loosen from left side paneling (11) and right side paneling (12) in lower area of wheel wells, pull toward center of trunk and remove | ||
| 14 | Remove expansion clip (18) from crossmember paneling (19) | Figure | |
| 15 | Remove cross member paneling (19) | ||
| 16 | Install in the reverse order |
CARGO RETAINERS
| Number | Designation | MODEL 212 | |
|---|---|---|---|
| BA68.50-P-1001-03I | Bolt of anchoring lug | Nm | 24 |
