Remove/install center console - AR68.20-P-2000EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212

Shown on vehicle with code (581) Comfort automatic air conditioning and without code (279) Electronic drive selection stage

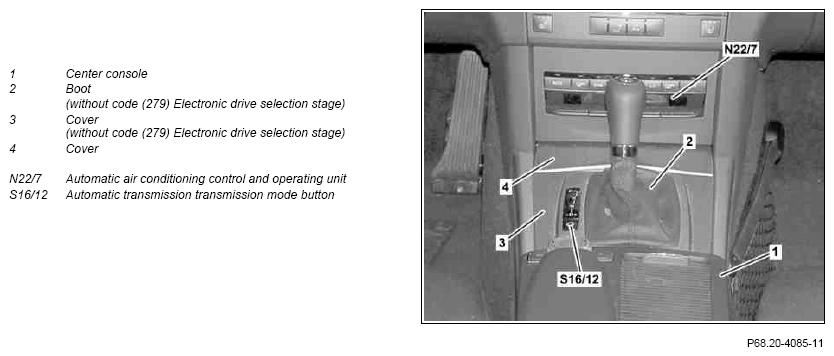

Fig 1: Center Console Remove/Install Components - Shown On Vehicle With Code 581

Courtesy of MERCEDES-BENZ USA

Shown on vehicle with code (279) Electronic drive selection stage

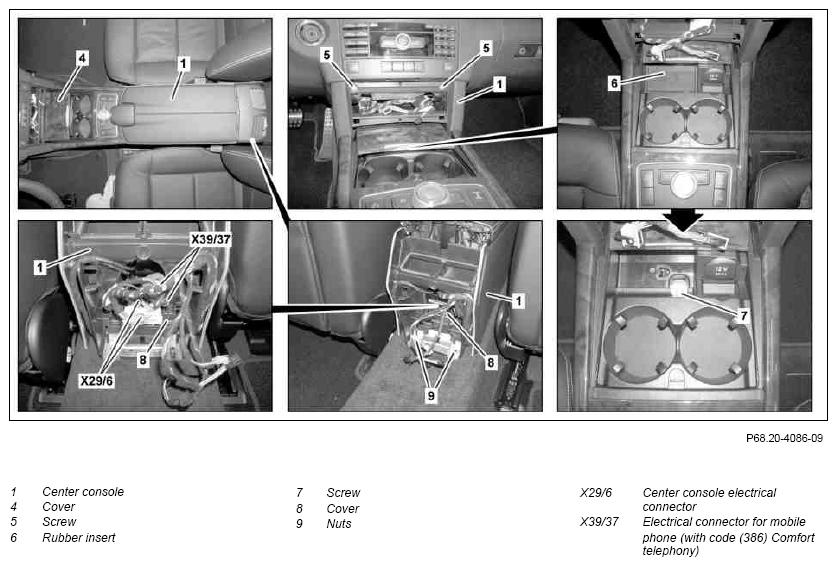

Fig 2: Center Console Remove/Install Components - Shown On Vehicle With Code 279

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove automatic air conditioning control and operating unit (N22/7)		AR83.40-P-6350EW
2	Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit	KEYLESS-GO start/stop button only on vehicles with code (889) Keyless-Go.
3	Remove bolts (5)
4	Unclip boot (2) from cover (3).	On vehicles without code (279) Electronic drive selection stage
4	Unclip boot (2) from cover (3).		Figure
5	Set selector lever in position "N" or gearshift lever to neutral position	On vehicles without code (279) Electronic drive selection stage Depending on vehicle configuration.
6	Open cover (4)
7	Unclip cover (3) in front area at top and lift until electrical connector on automatic transmission mode button (S16/12) is accessible.	On vehicles without code (279) Electronic drive selection stage Check cover mechanism (4) for proper function, if necessary loosen threaded connection of center console (1) and tighten center console (1) without tension.
8	Disconnect electrical connector from automatic transmission mode button (S16/12) and remove cover (3)	On vehicles without code (279) Electronic drive selection stage
9.1	Remove rubber insert (6) or ashtray insert	On vehicles with code (279) Electronic drive selection stage Depending on vehicle configuration.
9.2	Remove ashtray housing or front stowage compartment	On vehicles without code (279) Electronic drive selection stage
10	Unscrew bolt (7)
11	Remove rear ashtray or stowage compartment	Removal of the stowage compartment corresponds to removal of the rear ashtray.	AR68.20-P-2230EW
12	Unscrew nuts (9)
13	Fold up cover (8) toward rear and disconnect electrical connectors from center console (X29/6)
14	Slide back foam rubber jacketing and disconnect electrical connectors from mobile telephone (X39/37)	On vehicles with code (386) Comfort telephony
15	Remove center console (1) from vehicle	Guide wiring harnesses on automatic air conditioning control and operating unit (N22/7) through opening in center console (1). After positioning center console (1) on cover (4) check for proper function, if applicable, slide center console (1) toward rear again and move disturbing wiring harnesses to side.
16	Install in the reverse order

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
