Remove/install glove compartment lid - AR68.10-P-1200EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212
| Remove/install | |||
| 1 | Remove cover below right dashboard | AR68.10-P-1520CW | |

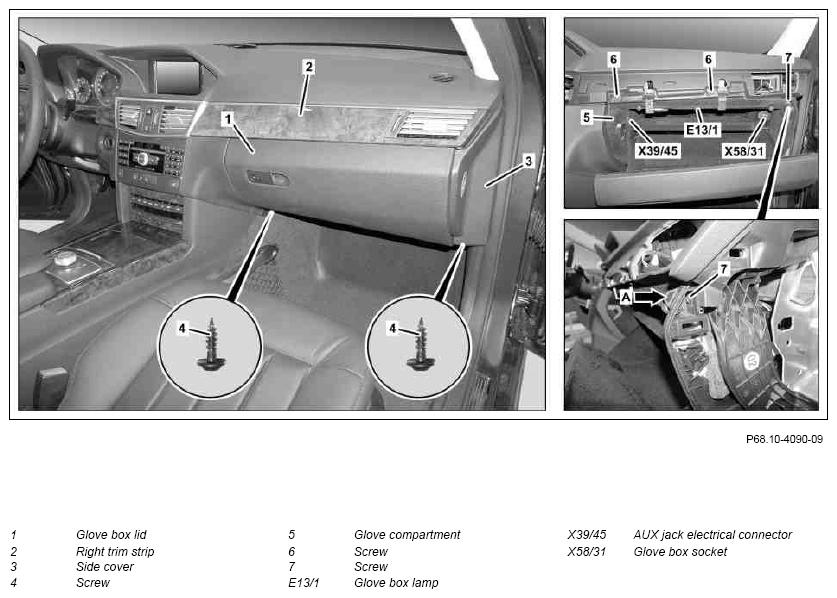

| 2 | Remove side cover (3) from instrument panel | Figure | |
| 3 | Unscrew bolts (4) at bottom of glove box (5) | ||
| 4 | Remove right trim strip (2) from instrument panel | AR68.10-P-1180EW | |
| 5.1 | Remove AUX jack electrical connector (X39/45) from glove box (5) | MODEL 212 up to model year 2014 without CODE 518 (Media Interface) |
|
| Vehicles without code (518) Media Interface | AR68.10-P-1400-01CW | ||
| 5.2 | Disconnect electrical connector on media interface on glove box (5) | MODEL 212 up to model year 2014 with CODE 518 (Media Interface) |
|
| Vehicles with code (518) Media Interface | AR68.10-P-1400-02CW | ||
| 6 | Remove screw/bolts (6) | ||
| 7 | Unclip cover (arrow A) | ||
| 8 | Unscrew bolt (7) | ||
| 9 | Lower glove box (5) until electrical connectors can be disconnected | ||
| 10 | Disconnect electrical connector from glove compartment lamp (E13/1) | ||
| 11 | Disconnect electrical connector from glove compartment socket (X58/31) | ||
| 12 | Remove glove box (5) and lay down on suitable protective surface | ||

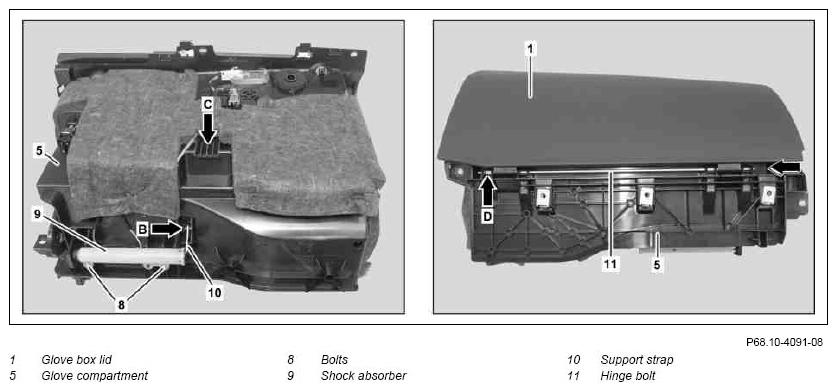

| 13 | Unscrew bolts (8) and pivot damper (9) to side | ||
| 14 | Unhook support strap (10) on damper (9) from pin (arrow B) and remove damper (9) | ||
| 15 | Knock hinge bolt (11) out of guide (arrow D) on glove box lid (1) in direction of arrow and pull out of glove box lid (1) | ||
| 16 | Remove glove compartment lid (1) from glove compartment (5) | ||
| 17 | Install in the reverse order | ||
