Remove/install rear seat cushion - AR91.12-P-1020CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/2/9

MODEL 212 without CODE 224 (Rear individual seat design)

Shown on model 204.0 without code (248) Rear seat with integrated child seat

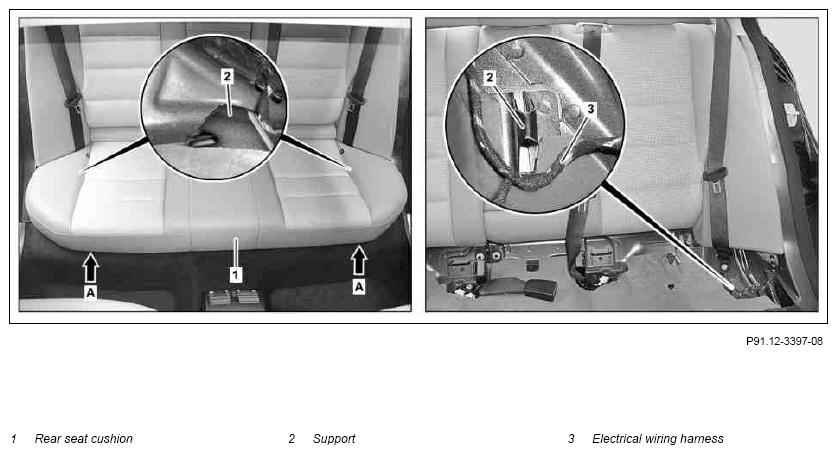

Fig 1: Rear Seat Cushion Remove/Install Components - Shown On Model 204.0 Without Code 248
G09977986Courtesy of MERCEDES-BENZ USA

Shown on model 204.0 with code (248) Rear seat with integrated child seat

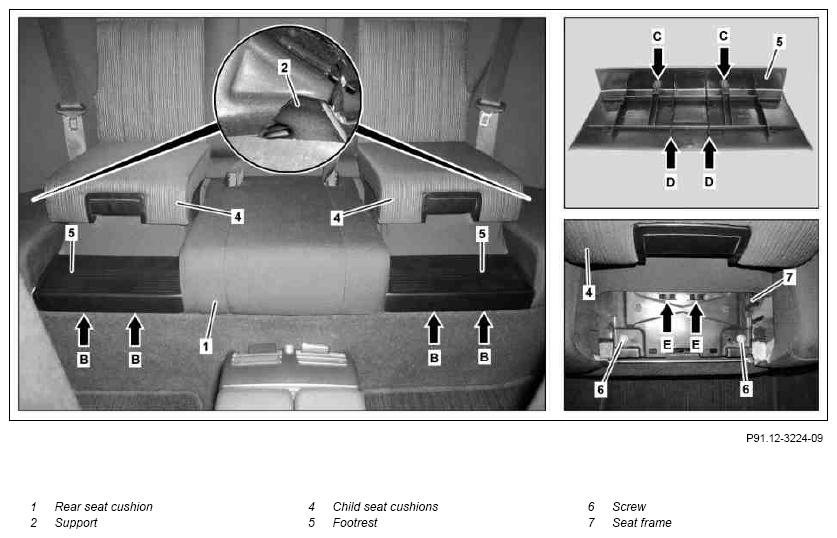

Fig 2: Rear Seat Cushion Remove/Install Components - Shown On Model 204.0 With Code 248
G09977987Courtesy of MERCEDES-BENZ USA

Shown on model 204.3, left side of vehicle

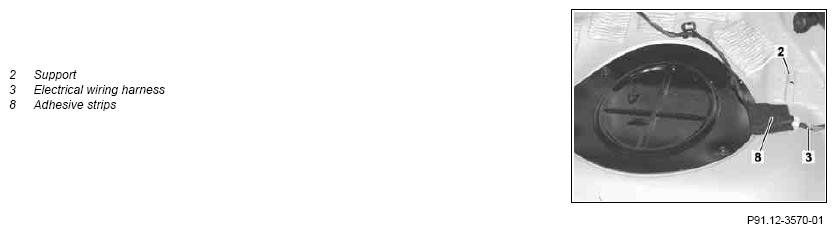

Fig 3: Rear Seat Cushion Remove/Install Components - Shown On Model 204.3
G09977988Courtesy of MERCEDES-BENZ USA

Shown on model 212

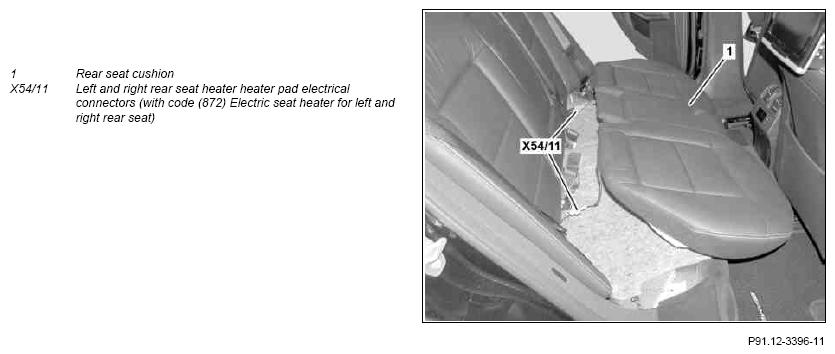

Fig 4: Rear Seat Cushion Remove/Install Components - Shown On Model 212
G09977989Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Move both front seats forwards
2 Pull rear seat cushion (1) upwards out of the guide sleeves (arrows A) For vehicles without code (248) Rear seat with integrated child seat
NOTES In model 212 with code (864) Rear entertainment system, catch rear seat cushion (1) while pulling it out.
Otherwise the DVD player will be damaged.
3 Extend child seat cushions (4) For vehicles with code (248) Rear seat with integrated child seat
4 Remove left and right footrests (5) For vehicles with code (248) Rear seat with integrated child seat
IMPORTANT At the marks (arrows B) on the footrests (5) insert a suitable screwdriver, alternately push back the catch hooks (arrows C), then remove the footrests (5) horizontally from the seat frame (7).
INSTALLATION IMPORTANT Insert guides (arrows D) of footrest (5) in cutouts (arrows E) of seat frame (7).
5 Remove bolts (6) on left and right seat frame (7) of rear seat cushion (1) For vehicles with code (248) Rear seat with integrated child seat
TORQUE SPECIFICATION Bolt, rear seat cushion to body *BA91.12-P-1010-03I
6 Remove DVD player paneling MODEL 212
with CODE 864 (Rear entertainment system)
without CODE 224 (Rear individual seat design)		 AR82.60-P-7505-01EW
7 Push rear seat cushion (1) far enough back to enable the retaining brackets on the bottom of the rear seat cushion (1) to be extended from the mounts (2) INSTALLATION IMPORTANT Ensure that mounting frame bow is seated correctly in mounts (2).
8 Guide rear seat cushion (1) forward and disconnect left and right rear seat heater, heater pad electrical connectors (X5411) MODEL 212
with CODE 872 (Electrically heated left and right rear seats)
9 Remove rear seat cushion (1) NOTES Carefully remove rear seat cushion (1) from vehicle.
Otherwise components in vehicle interior or at rear doors will be damaged.
INSTALLATION NOTES
Note routing and fastening of electrical wiring harness (3) in front of mounts (2).
Otherwise the electrical wiring harness (3) will be damaged.
INSTALLATION IMPORTANT Note position of center seat belt buckle.
10 Install in the reverse order
REAR SEATS

Number Designation MODEL 204 MODEL 212
BA91.12-P-1010-03I Bolt, rear seat cushion to body Nm 8 10
