Remove/install drip rail - AR88.80-P-4000EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.3, 207.3, 212

Shown on model 212.0 with CODE (413) Panoramic sliding roof

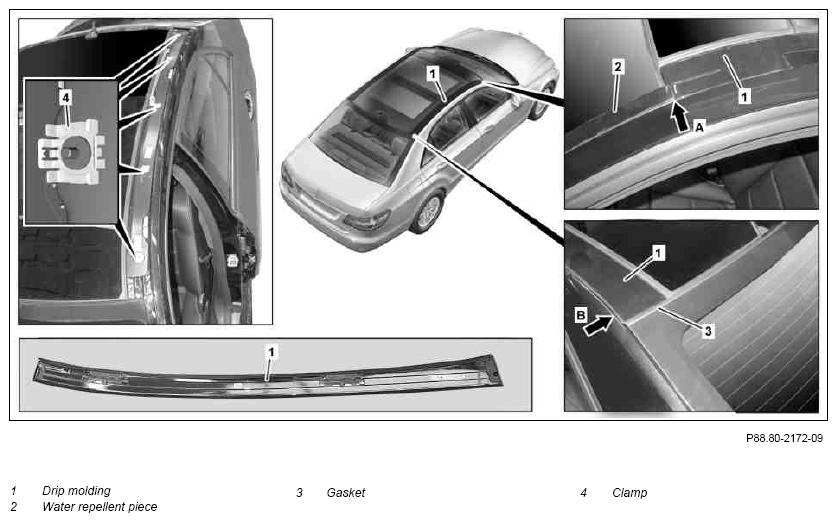

Fig 1: Drip Rail Remove/Install Components - Shown On Model 212.0 With Code (413) (1 Of 2)
G09977946Courtesy of MERCEDES-BENZ USA

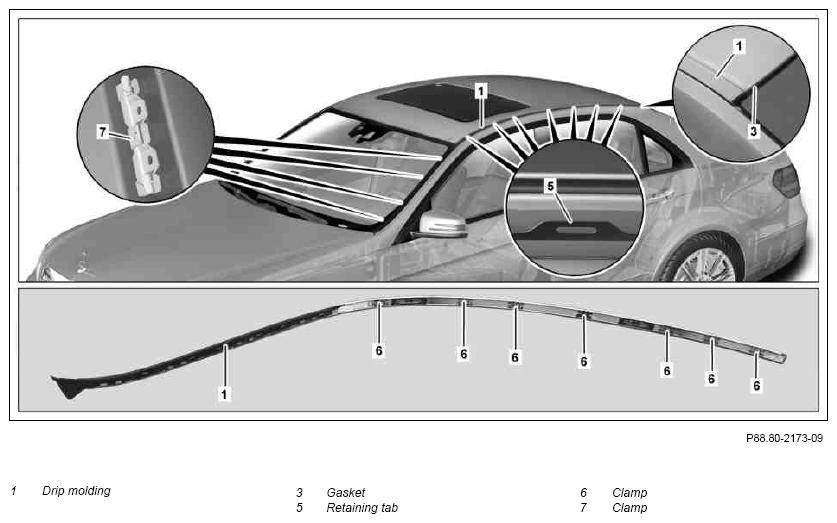

Fig 2: Drip Rail Remove/Install Components - Shown On Model 212.0 With Code (413) (2 Of 2)
G09977947Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove roof railing Model 212.2 only
2.1 Unclip drip rail (1) from clips (4) starting at rear (arrow B) and remove On vehicles with CODE (413) Panoramic sliding roof
IMPORTANT Installation: Insert drip rail (1) into water deflector (2) in front area (arrow A) and clip into clips (4). Ensure that the sealing ring (3) is located above the drip rail (1).
SPECIAL TOOL Mounting wedge Figure
2.2 Unclip drip rail (1) from clips (7) and retaining tabs (5) starting at front and remove On vehicles without CODE (413) Panoramic sliding roof
IMPORTANT Check clips (6) for damage, replace if necessary.
IMPORTANT Installation: Ensure that the sealing ring (3) is located above the drip rail (1).
SPECIAL TOOL Mounting wedge Figure
3 Install in the reverse order
Fig 3: Identifying Mounting Wedge (110 589 03 59 00)
G09977948Courtesy of MERCEDES-BENZ USA
