Remove/install antenna - AR82.70-P-8951EL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0/2 as of model year 2011 with CODE 228 (Auxiliary heater)

MODEL 212.0/2 as of model year 2011 with CODE 348 (Emergency call/assistant system)

MODEL 212.0/2 as of model year 2011 with CODE 355 (Preinstallation for retrofitting navigation system)

MODEL 212.0/2 as of model year 2011 with CODE 359 (TELE AID emergency call system)

MODEL 212.0/2 as of model year 2011 with CODE 386 (Comfort telephony)

MODEL 212.0/2 as of model year 2011 with CODE 511 (Audio 50 APS with DVD changer)

MODEL 212.0/2 as of model year 2011 with CODE 512 (COMAND APS with DVD changer)

MODEL 212.0/2 as of model year 2011 with CODE 514 (COMAND APS China)

MODEL 212.0/2 as of model year 2011 with CODE 522 (Audio 20 radio)

MODEL 212.0/2 as of model year 2011 with CODE 525 (MB Audio 50 APS radio)

MODEL 212.0/2 as of model year 2011 with CODE 527 (COMAND APS with single DVD drive (with navigation))

MODEL 212.0/2 as of model year 2011 with CODE 528 (HIGH Class USA)

MODEL 212.0/2 as of model year 2011 with CODE 531 (COMAND APS)

MODEL 212.0/2 as of model year 2011 with CODE 536 (SIRIUS satellite radio)

MODEL 212.0/2 as of model year 2011 with CODE 537 (Digital radio (DAB))

MODEL 218 with CODE 228 (Auxiliary heater)

MODEL 218 with CODE 348 (Emergency call/assistant system)

MODEL 218 with CODE 350 (Mercedes-Benz emergency call system)

MODEL 218 with CODE 359 (TELE AID emergency call system)

MODEL 218 with CODE 386 (Comfort telephony)

MODEL 218 with CODE 508 (Navigation box preinstallation)

MODEL 218 with CODE 509 (Navigation box)

MODEL 218 with CODE 511 (Audio 50 APS with DVD changer)

MODEL 218 with CODE 512 (COMAND APS with DVD changer)

MODEL 218 with CODE 514 (COMAND APS China)

MODEL 218 with CODE 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT)

MODEL 218 with CODE 525 (MB Audio 50 APS radio)

MODEL 218 with CODE 527 (COMAND APS with single DVD drive (with navigation))

MODEL 218 with CODE 528 (HIGH Class USA)

MODEL 218 with CODE 531 (COMAND APS)

MODEL 218 with CODE 536 (SIRIUS satellite radio)

Illustrated in model 218.3

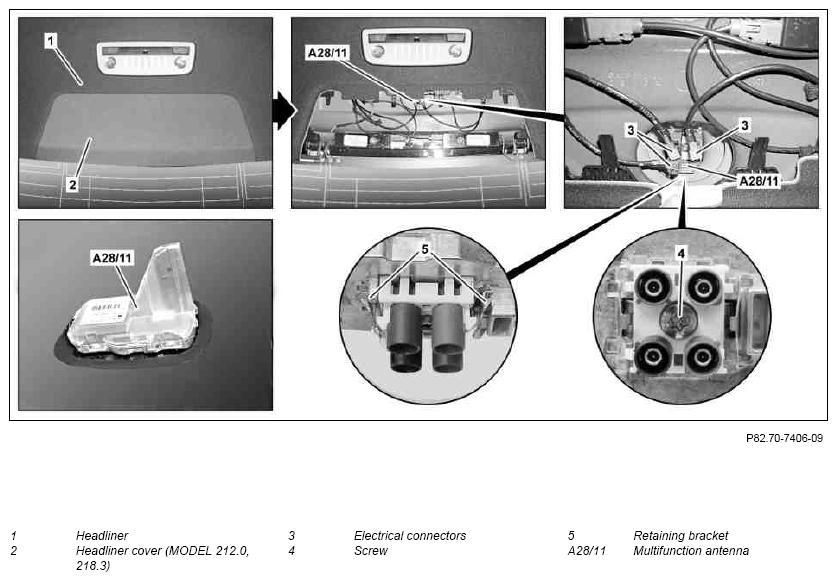

Fig 1: Antenna Remove/Install Components - Shown On Model 218.3

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover for multifunction antenna (A28/11)		AR82.70-P-8952EW
2.1	Unclip and remove headliner cover (2)	MODEL 212.0, 218.3 MODEL 212.0, 218.3 with CODE 220 (PARKTRONIC) Allow headliner cover (2) to hang down with wiring harness connected.
2.2	Remove headliner (1)	MODEL 212.2, 218.9
3	Disconnect electrical connectors (3) from multifunction antenna (A28/11)
4	Remove screw/bolt (4) until retaining brackets (5) are released	Screw/bolt (4) remains at multifunction antenna (A28/11).
		Model 212.0/2	*BA82.62-P-1001-01D
		MODEL 218	*BA82.62-P-1001-01A
5	Remove multifunction antenna (A28/11) toward top from body
6	Install in the reverse order

ANTENNA

Number	Designation		MODEL 218
BA82.62-P-1001-01A	Bolt/nut of antenna base to vehicle roof	Nm	3

ANTENNA

Number	Designation		MODEL 212
BA82.62-P-1001-01D	Bolt, antenna base to vehicle roof	Nm	3
