Remove/install rear seat cushion - AR91.12-P-1020EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 with CODE (224) Design individual rear seat system

Shown on right side of vehicle, vehicle with code (872) Electric seat heater for left and right rear seat

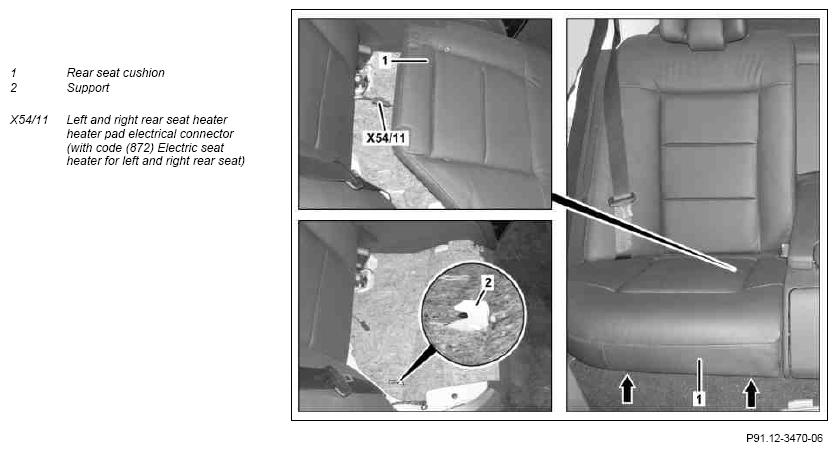

Fig 1: Rear Seat Cushion Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Adjust front seat forward
2	Pull rear seat cushion (1) upwards out of guide sleeves (arrows)
3	Slide back rear seat cushion (1) until retaining bracket on bottom of rear seat cushion (1) is guided out of mount (2)	Ensure that retaining bracket on bottom of rear seat cushion (1) is seated correctly in mount (2).
4	Guide rear seat cushion (1) forward and disconnect left or right rear seat heater, heater pad electrical connector (X54/11)	For vehicles with code (872) Electrically heated left and right rear seats
5	Remove rear seat cushion (1)	Remove rear seat cushion (1) from the vehicle carefully, to avoid damage to components in the vehicle interior or on the rear doors.
6	Install in the reverse order
