Remove/install door sill - AR68.30-P-4100EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212

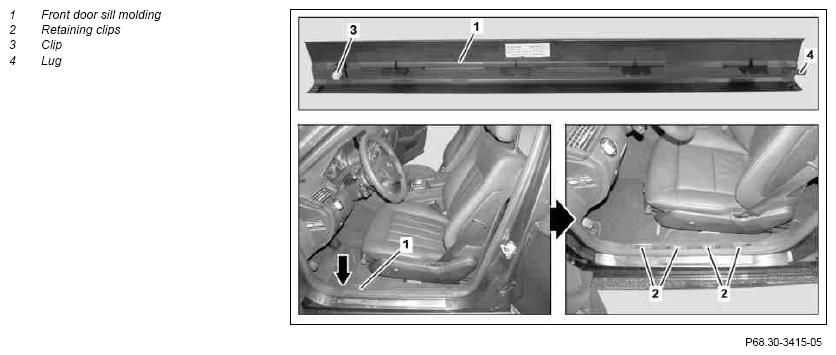

Fig 1: Door Sill Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

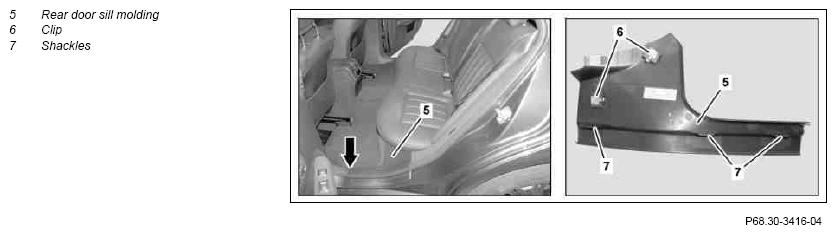

Fig 2: Door Sill Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip front door sill (1) or rear door sill (5) in front area (arrow) upward	The front door sill (1) is secured in the front area (arrow) with a clip (3). Check clip (3) and replace if necessary.
2	Loosen front door sill (1) from front toward rear from retaining clips (2)	When removing front door sill (1). Do not lift front door sill (1) upward in rear area to prevent damaging lug (4).
3	Pull front door sill (1) toward front out of B-pillar paneling at bottom and remove	When removing front door sill (1). Pull front door sill (1) out of B-pillar paneling at bottom until lug (4) is exposed.
4	Loosen lugs (7) from rear door sill (5) from front toward rear from retaining clips, unclip clips (6) and remove rear door sill (5).	When removing rear door sill (5). Check clips (6) and replace, if necessary.
5	Install in the reverse order
