Retrofit Reversing Camera With Display In Inside Rearview Mirror - An54.65-D-0031TS

Model 907

with code F61 (Rear mirror inside)

except code FR3 (Reversing camera inside rearview mirror display)

except code FV1 (Pre-installation for reversing camera with inside rearview mirror display)

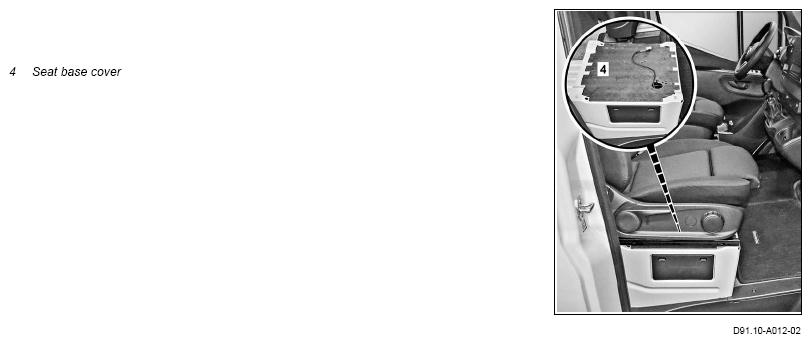

Shown on front passenger seat

G13792617

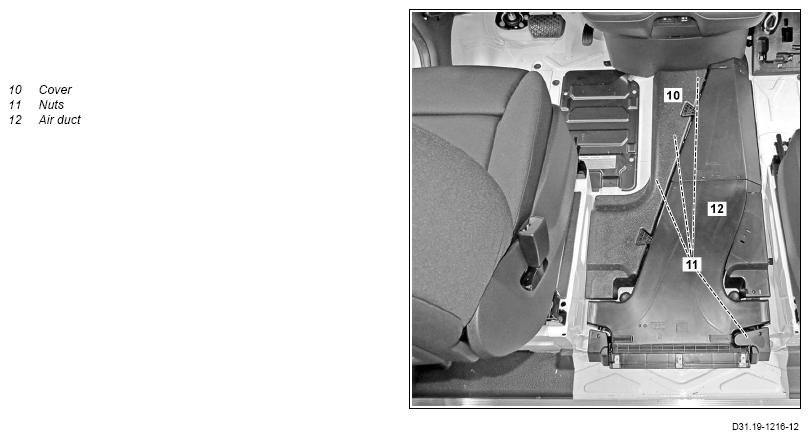

Shown on model 907.6 except code S23 (Front passenger bench seat) with code H00 (Hot air duct to passenger compartment)

G13792618

Shown on model 907.6 with code S23 (Front passenger bench seat) and with code H00 (Hot air duct to passenger compartment)

G13792619

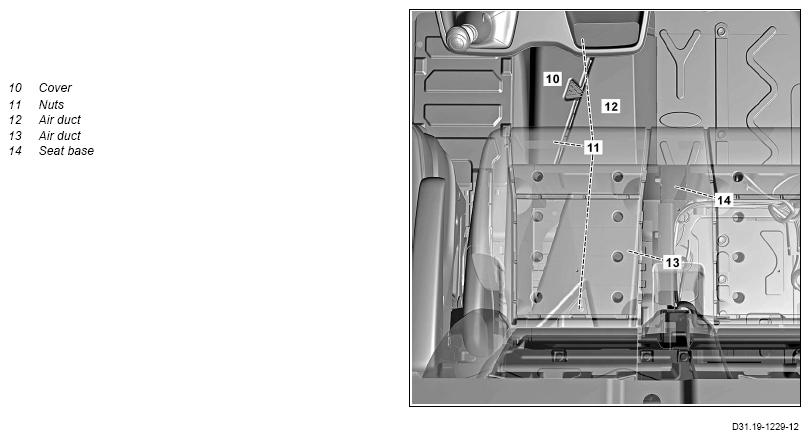

Shown on model 907.6 with code H00 (Hot air duct to passenger compartment)

G13792620

Shown on model 907.6 with code V94 (Cable duct on side wall) and code V95 (Cable duct on rear portal)

G13792621

Shown on model 907.6

G13792622

Shown on model 907.6 left-hand drive vehicle

G13792623
G13792624
  Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC. No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers AS54.10-Z-0001-01A
  Risk of death  caused by falling from vehicle roof. Risk of injury  to other persons caused by falling objects during work in roof area.   AS65.00-Z-0002-01A
CAUTION Caution Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
INSPECT Check

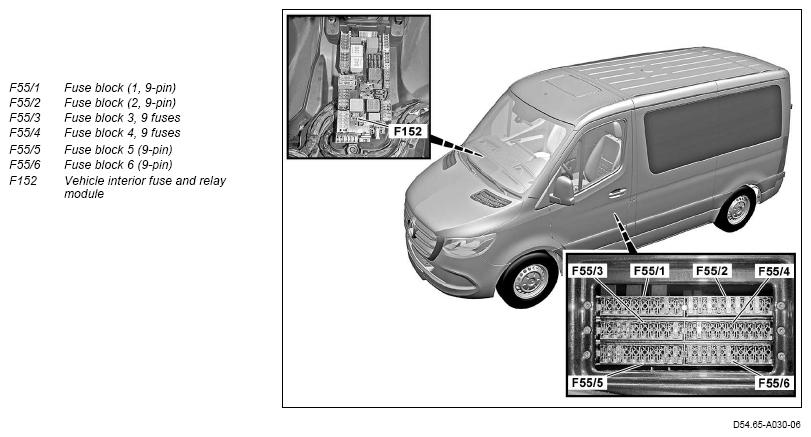

1 Check whether there is a free fuse slot for terminal 15 on fuse blocks 1 - 6 (F55/1, F55/2, F55/3, F55/4, F55/5 or F55/6).
REFER TO BASIC KNOWLEDGE Assignment of fuse holders on seat base If there is no free fuse slot for terminal 15 on fuse blocks 1 - 6 (F55/1, F55/2, F55/3, F55/4, F55/5 or F55/6):

Use fuse slot for terminal 15 on vehicle interior fuse and relay module (F152)
GF54.15-D-1257-11TSA
REFER TO BASIC KNOWLEDGE   Assignment of passenger-side footwell fuse and relay module GF54.15-D-1256-28TSA
REFER TO TESTING & REPAIR   Remove/install vehicle tool kit carrier plate AR68.30-D-5021TS
REMOVING Remove
2 Remove inside rearview mirror.
REFER TO TESTING & REPAIR     AR68.40-D-0001TS
3 Remove A-pillar trim at top right.
REFER TO TESTING & REPAIR     AR68.30-D-4051TS
4.1 Remove left front seat. Model 907.6/7 except code SR8 (Driver's seat bogie)
REFER TO TESTING & REPAIR     AR91.10-D-1000TS
4.2 Remove turn plate with attached left front seat. Model 907.6/7 with code SR8 (Driver seat bogie)
REFER TO TESTING & REPAIR   IMPORTANT Do not disconnect left front seat from turn plate. AR91.10-D-1456TS
5 Remove seat base cover (4) of driver's seat.

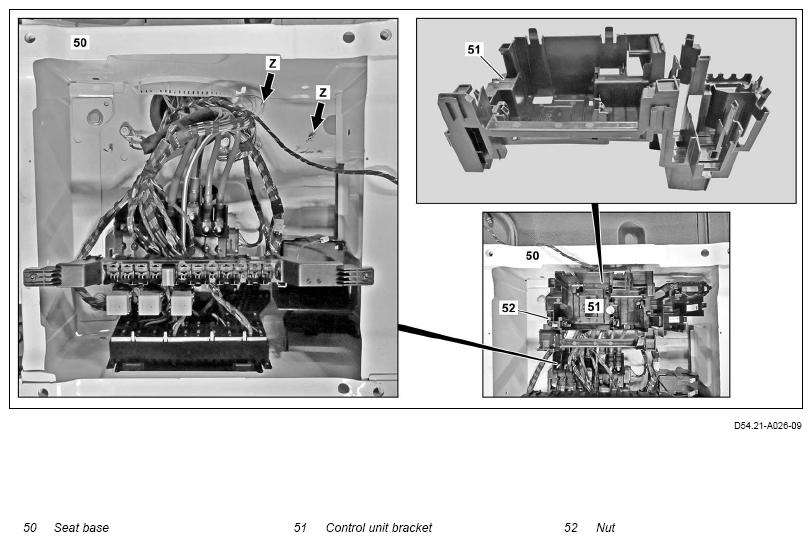

6 Remove control unit holder (51). If control unit holder (51) is installed.
NOTES
Do not kink subharness during installation of control unit holder (51) and ensure that it is routed free of chafing.
This prevents damage.
IMPORTANT To do so, remove nut (52).
Position control unit holder (51) so that ground points are accessible.
The number of control units varies depending on the vehicle equipment.
If control units are installed in control unit holder (51):

Unclip control units.
Do not disconnect plugs of control units.

7 Remove front floor coverings.
REFER TO TESTING & REPAIR   Model 907.6/7 AR68.80-D-0006TSR
REFER TO TESTING & REPAIR
8 Loosen screws of seat base (50) at left.
REFER TO TESTING & REPAIR     AR91.10-D-3521TS
    IMPORTANT Only loosen the two screws facing the doors.
9 Remove A-pillar trim at bottom right.
REFER TO TESTING & REPAIR   Model 907.6/7 AR68.30-D-0012TSR
REFER TO TESTING & REPAIR
10 Remove lower trim for center instrument panel.
REFER TO TESTING & REPAIR
11 Remove left B-pillar trim.
REFER TO TESTING & REPAIR   Model 907.7 AR68.30-D-4707TS
REFER TO TESTING & REPAIR   Model 907.6 AR68.30-D-4705TS
12 Remove front left door sill trim.
REFER TO TESTING & REPAIR     AR68.30-D-1306TS
13 Remove cover (10). Model 907.6/7 with code H00 (Hot air duct to passenger compartment)
14 Fold seat cushion padding forward. Model 907.6/7 with code S23 (Front passenger bench seat)
15.1 Remove air duct (12). Model 907.6/7 except code S23 (Front passenger bench seat)
IMPORTANT To do so, remove nuts (11).

    TORQUE SPECIFICATION M6 *BA00.10-N-1002-01A
15.2 Remove air duct (12, 13). Model 907.6/7 with code S23 (Front passenger bench seat)
IMPORTANT To do so, remove nuts (11).
TORQUE SPECIFICATION M6
*BA00.10-N-1002-01A

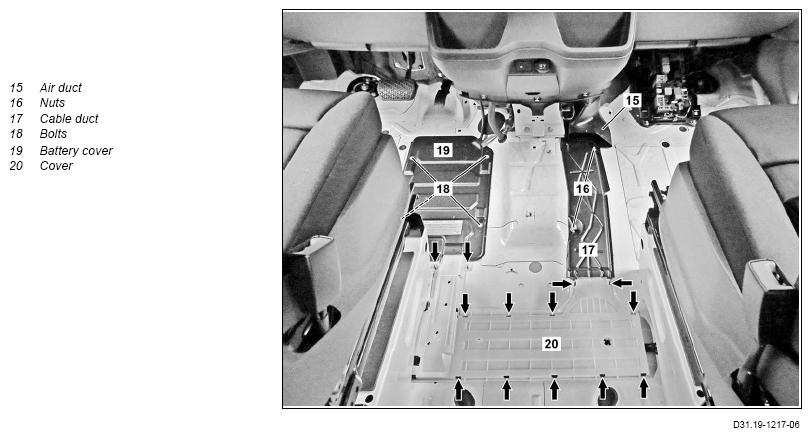

16 Remove air duct (15). Model 907.6/7 with code H00 (Hot air duct to passenger compartment)
17 Remove cable duct (17). IMPORTANT To do so, remove nuts (16).
TORQUE SPECIFICATION M6
*BA00.10-N-1002-01A
18 Remove battery cover (19). Model 907
IMPORTANT To do so, remove screws (18).

19 Release seat base (14) for front passenger bench seat.
REFER TO TESTING & REPAIR   Model 907.6/7 with code S23 (Front passenger bench seat) AR91.10-D-3523TS
20 Release cover (20). IMPORTANT Release cover (20) using a suitable screwdriver (arrows).
IMPORTANT Release cover (20) until wiring harness can be routed.

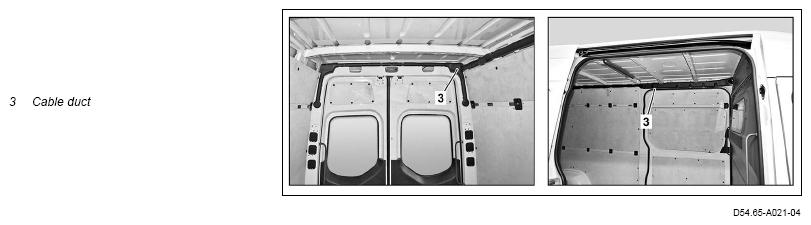

21 Remove cable duct (3). Model 907.6/7 with code V94 (Cable duct on side wall), Model 907.6/7 with code V95 (Cable duct on rear portal)
IMPORTANT Model 907.6/7 with code T19 (Left sliding door) with code V94 (Cable duct on side wall)
To do so, loosen screws.

22 Remove center roof lining. Model 907.6 with code V36 (Roof lining) Model 907.7
REFER TO TESTING & REPAIR     AR68.30-D-7609TSR
23 Remove center rear roof linings. Model 907.6 with code V36 (Roof lining) Model 907.7
REFER TO TESTING & REPAIR     AR68.30-D-7612TSR
24 Remove rear roof lining. Model 907.6 with code V36 (Roof lining) Model 907.7
REFER TO TESTING & REPAIR     AR68.30-D-7608TSR
25 Remove dome lamp in load compartment.
REFER TO TESTING & REPAIR   Model 907.6
IMPORTANT Remove electrical wiring harness of dome lamp from working area.
AR82.20-D-5615TS
26 Remove additional brake lamp.
REFER TO TESTING & REPAIR   Model 907.6/7 AR82.10-D-5376TS
INSTALLING Install

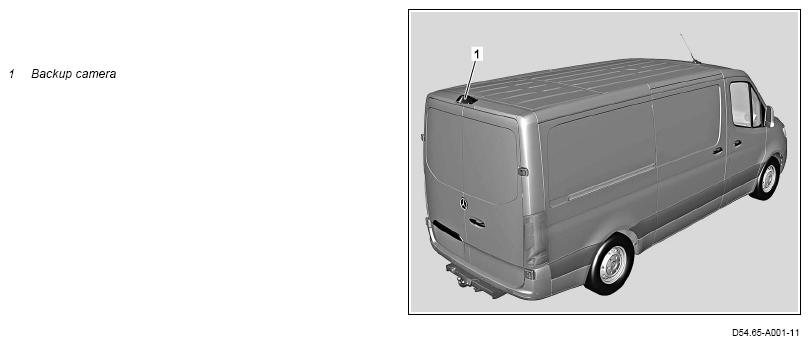

27 Retrofit camera. Model 907.6 except code D05 (Super-high roof) except code D06 (Super-high roof painted in vehicle color), Model 907.7 AN54.65-D-0030-02TS
    Model 907.6 with code D05 (Super high roof) or code D06 (Super high roof painted in vehicle color)
IMPORTANT Model 907.1/2
Observe current van body/equipment mounting directives
https://bb-portal.Mercedes-Benz.com/de
AN54.65-D-0030-02TSB
    Cleaner *BR00.45-Z-1025-04A
    Masking tape *BR00.45-Z-1026-07A
    1K-zinc dust paint *BR00.45-Z-1056-07A
    Cavity preservation (free of solvents), 1 liter *BR00.45-Z-1003-05A
28 Install new inside rearview mirror.
REFER TO TESTING & REPAIR     AR68.40-D-0001TS
29 Remove front passenger side fuse and relay module. There is no free fuse slot for terminal 15 on fuse blocks 1 - 6 (F55/1, F55/2, F55/3, F55/4, F55/5 or F55/6).
REFER TO TESTING & REPAIR   IMPORTANT Do not disconnect relays, fuses and plugs of fuse and relay module. AR54.15-D-0004TS
30 Retrofit reversing camera wiring harness. when terminal 15 is provided via fuse block (9-pin) in seat base AN54.65-D-0031-01TS
    when terminal 15 is provided via vehicle interior fuse and relay module (F152) AN54.65-D-0031-01TSB
IMPORTANT Overview of wiring diagrams for electrical system, equipment and instruments Model 907 PE54.00-D-1100LAA
IMPORTANT Overview of wiring diagrams for electrical system, equipment and instruments
IMPORTANT Survey of wiring diagrams of interior equipment IMPORTANT Model 907.1/2
The routing of the extension of the reversing camera wiring harness may deviate from the described variant depending on the model, wheelbase or box body.
Observe current van body/equipment mounting directives  .
https://bb-portal.Mercedes-Benz.com/de

    Adhesive fabric tape *BR00.45-Z-1062-02A
    TORQUE SPECIFICATION M6 *BA00.10-N-1002-01A
31 Install in the reverse sequence. j/ IMPORTANT Operation steps 26 to 2.
32 Enter special equipment into online vehicle data card. IMPORTANT Designation of corresponding special equipment: Code FR3 (reversing camera with inside rearview mirror display).
IMPORTANT Attach a note "Reversing camera retrofitted as per AN54.65-D-0031 TS" under field organization texts to KG54.

33 Enter note in online vehicle data card. IMPORTANTAttach note "Reversing camera power supply via F ________ fuse slot ________ ." in accordance with fuse holder used under field organization texts to KG54.
Furthermore, note the changed fuse assignment in the "Fuse assignment" supplement included with the vehicle.

INSPECT Check
34 Perform function check of reversing camera. IMPORTANT To do so, switch on ignition and engage reverse gear.
Picture is shown in inside rearview mirror.

TORQUE SPECIFICATION HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number Designation 8.8 10.9
BA00.10-N-1002-01A M6 Galvanized Nm 9 13
Phosphated Nm 9 12
TORQUE SPECIFICATION HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Number Designation 12.9
BA00.10-N-1002-01A M6 Galvanized Nm 16
Phosphated Nm 14
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-05A Cavity preservation (free of solvents), 1 liter A 000 986 72 70 10
BR00.45-Z-1025-04A Cleaner A 005 989 19 71
BR00.45-Z-1026-07A Masking tape Use corresponding commercially available repair materials.
BR00.45-Z-1056-07A 1K-zinc dust paint A 000 986 28 00
BR00.45-Z-1062-02A Adhesive fabric tape A 007 989 28 85
PARTS ORDERING NOTE

Part no. Designation Quantity
A 910 810 03 03 Inside rearview mirror with display 1
  Analog reversing camera (see "ODUS") 1
  Cockpit wiring harness (see "ODUS") 1
  Extension of reversing camera wiring harness (see "ODUS") 1
  Fuse 5 A (see XENTRY parts information) n.B.
  Cable tie (see XENTRY parts information) n.B.
