Remove/Install Rear Center Headliner - Ar68.30-D-7612TSR
Model 907.6/7

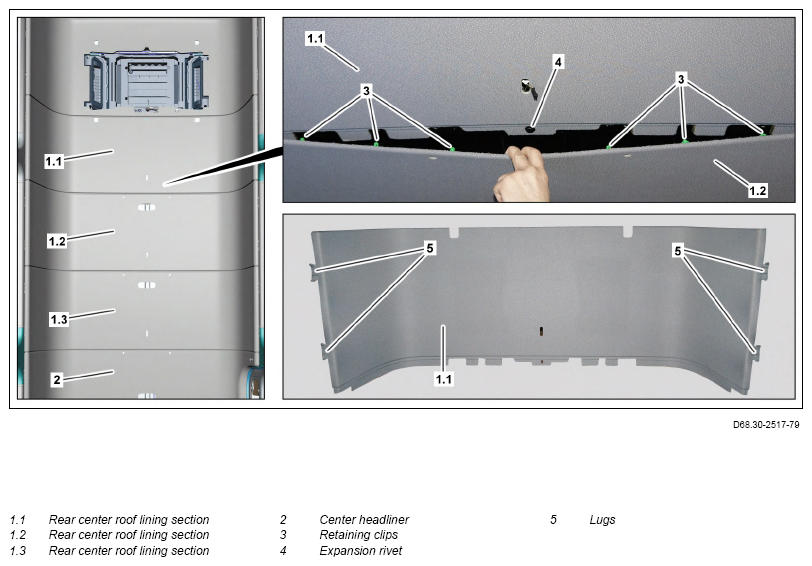

Shown on rear center roof lining section (1.1) on model 907.7 with code IR6 (wheelbase 4,325 mm, overhang 1,615 mm)
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Remove corresponding dome lamp. | If required. | AR82.20-D-0117TSR |
The number of sections (1.1, 1.2, 1.3) varies depending on the wheelbase and overhang. |
|||
| 2 | Remove corresponding air duct of the roof-mounted air conditioning system. | Model 907.6/7 with code H08 (Roof-mounted air conditioning system, reinforced) Model 907.6/7 with code HH7 (Roof-mounted air conditioning system, basic) Model 907.6/7 with code HK4 (Rear air conditioning, reinforced) |
|
| AR83.50-D-7980TSR | |||
| 3 | Unclip retaining clips (3) of the rear center roof lining front section (1.2) and carefully pull downward. | ||
| Fig 1 | |||
| 4 | Remove expansion rivet (4) from rear center roof lining section (1.1). | Fig 1 | |
| 5 | Unclip retaining clips (3) of the rear center roof lining section (1.1) at the rear. | ||
| Fig 1 | |||
| 6 | Unhook shackles (5) of the rear center roof lining section (1.1) sideways out of the body. | ||
| 7 | Carefully lower rear center roof lining section (1.1) at the rear and remove from the vehicle. | ||
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Perform function test of the dome lamps. | If a dome lamp was removed. |
