Retrofit Camera - An54.65-D-0030-02TSB

	Risk of death  caused by falling from vehicle roof. Risk of injury  to other persons caused by falling objects during work in roof area.		AS65.00-Z-0002-01A
Caution	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S

Model 907.6

with code D05 (Super-high roof)

Model 907.6

with code D06 (Super-high roof painted in vehicle colour)

1. Remove cover (9).

   Remove screw/bolt (10) to do this.

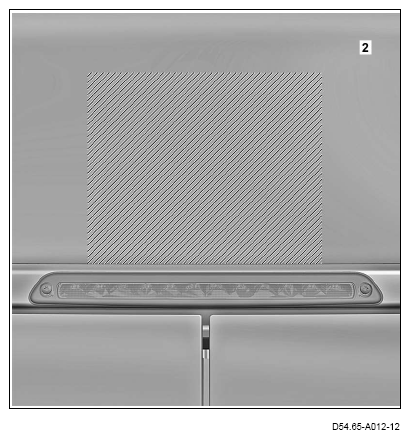

2. Clean contact surface in hatched area of super-high roof (2).

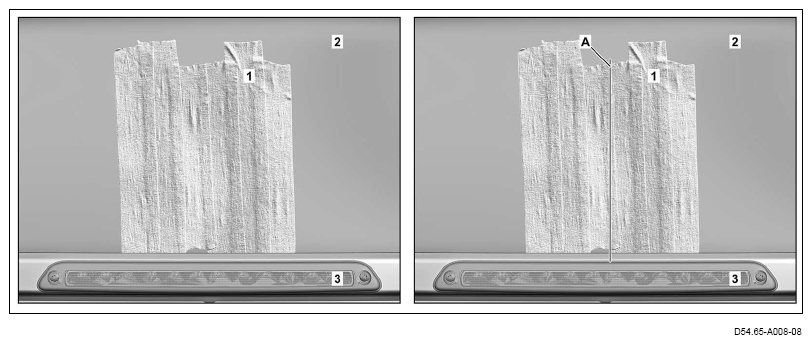

3. Glue masking tape (1) to super-high roof (2).
4. Mark datum line (A) on masking tape (1).

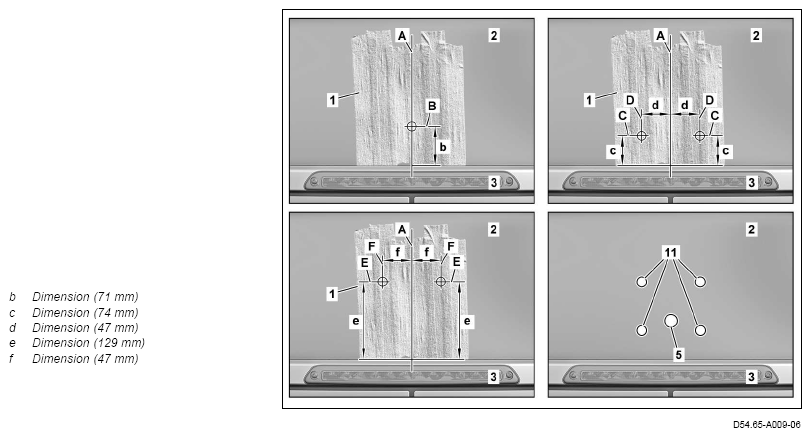

5. Transfer dimensions (b, c, d, e and f) and associated datum lines (B, C, D, E and F) to masking tape (1) as shown.
6. Using a suitable stepped drill bit, drill out hole (5) at intersection point of datum lines (A, B) to 0 19 mm and drill out holes (11) at intersection points of datum lines (C, D and E, F) to 0 10 mm.
7. Deburr holes (5, 11).
8. Remove drilling chips.

   The datum line (A) is marked vertically and centrally relative to the additional brake lamp (3).

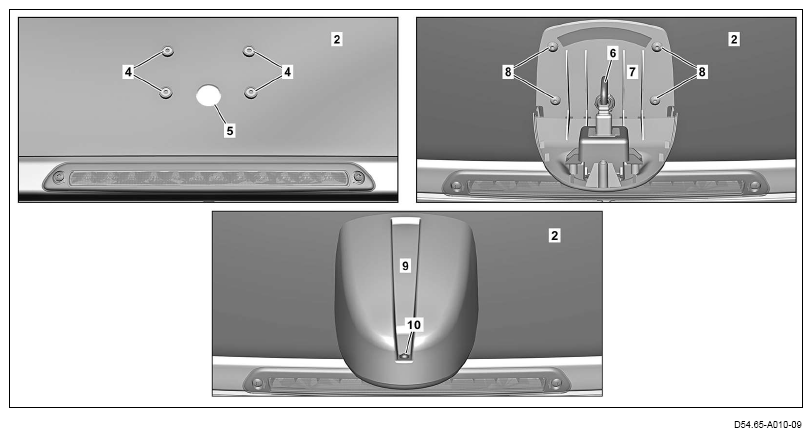

9. Install rivet nuts (4).
10. Guide electrical wiring harness (6) of reversing camera (7) inwards through hole (5).
11. Retrofit reversing camera (7).

    Screw in bolts (8) to do this.

12. Install cover (9).

    Screw in screw (10) to do this.

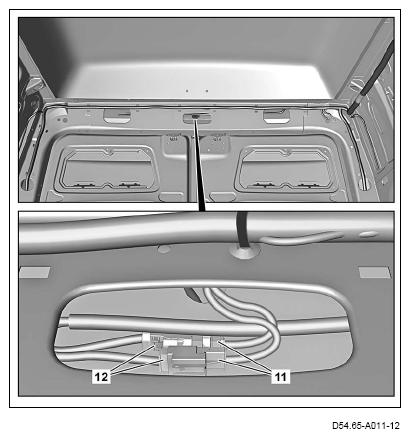

13. Connect plugs (12) to couplings (11).
