Remove/Install Front Floor Coverings - Ar68.80-D-0006TSR
Model 907

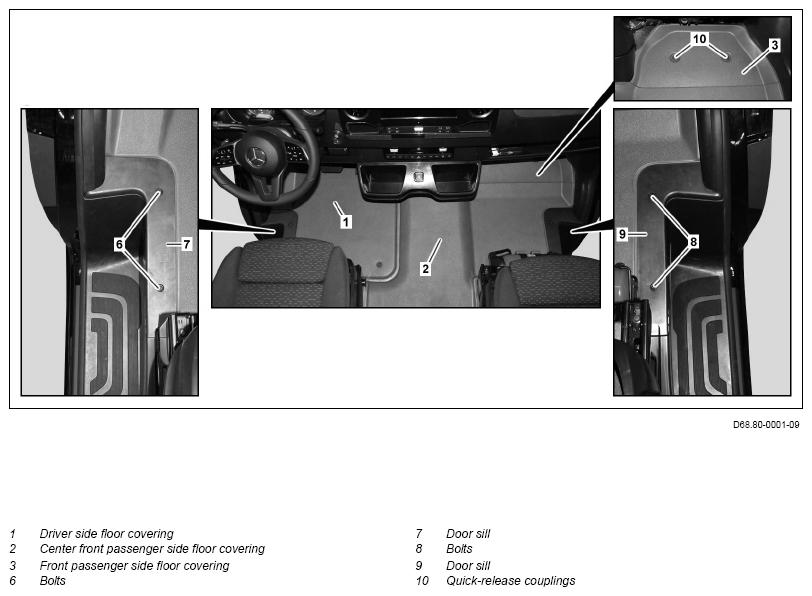

Shown with code B25 (Electrical parking brake), with code H00 (Hot air duct to passenger compartment) and with code SB2 (Comfort front passenger seat)

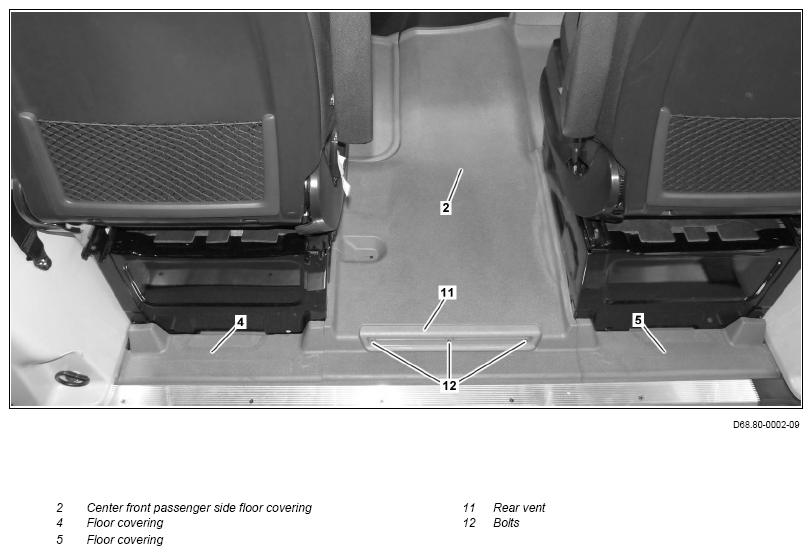

Shown with code B25 (Electrical parking brake), with code H00 (Hot air duct to passenger compartment) and with code SB2 (Comfort front passenger seat)

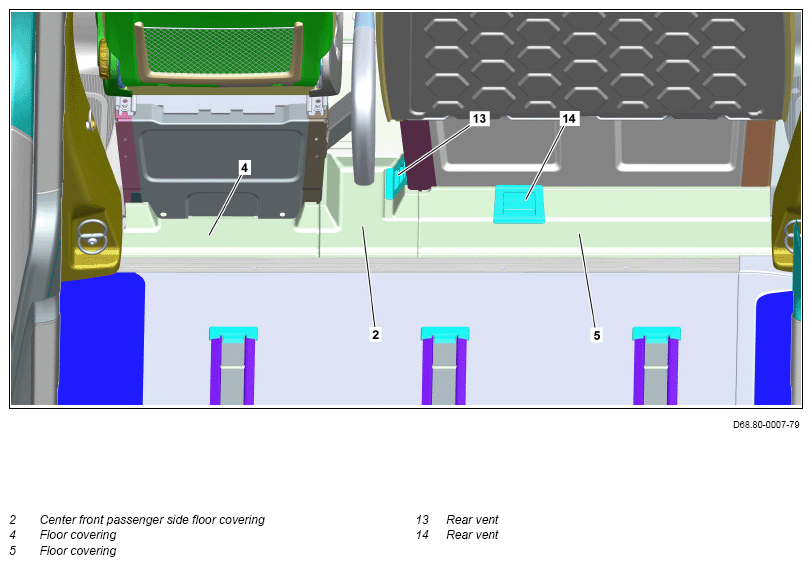

Shown with code H00 (Hot air duct to passenger compartment) and with code S23 (Two-seater front passenger seat)
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Remove screw/bolts (6). | ||
| 2 | Remove door sill (7). | ||
| 3 | Remove driver's side floor covering (1). | ||
| 4 | Turn quick-release fasteners (10) with a suitable tool 90° counterclockwise and remove front floor covering of front passenger side (3). | ||
| 5 | Remove floor covering (4). | ||
| 6 | Unclip and remove rear air vent (14). | Model 907 with code H00 (Hot-air duct to passenger compartment) with code S23 (Co-driver's seat double seat) |
|
| Fig 1 | |||
| 7 | Remove floor covering (5). | ||
| 8 | Remove bolts (8). | ||
| 9 | Remove door sill (9). | ||
| 10.1 | Remove screws (12) and remove rear air vent (11). | Model 907 with code H00 (Hot-air duct to passenger compartment) except code S23 (Co-driver's seat double seat) |
|
| 10.2 | Unclip and remove rear air vent (13). | Model 907 with code H00 (Hot-air duct to passenger compartment) with code S23 (Co-driver's seat double seat) |
|
| Fig 1 | |||
| 11 | Remove center front passenger side floor covering (2). | ||
| 12 | Install in the reverse order. |
