Remove/Install Entrance Paneling - Ar68.30-D-1306TS
Model 907
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||

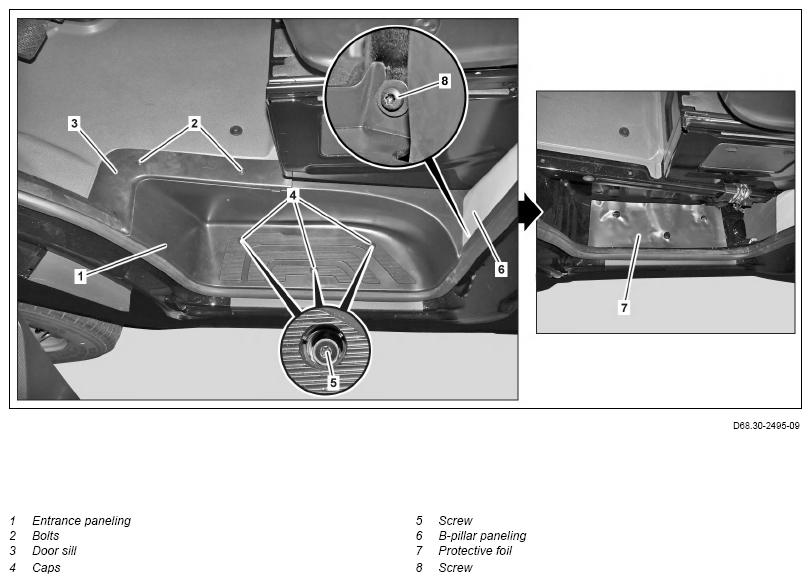

| 1 | Unscrew bolts (2). | ||
| 2 | Remove door sill (3). | ||
| 3 | Remove covers (4) from the door sill trim (1) with a suitable tool. | ||
| 4 | Remove bolts (5). | ||
| 5 | Pull B-pillar trim (6) in bottom area slightly to the side and remove screw (8). | ||
| 6 | Lift floor covering in the front area of the door sill trim (1) and remove door sill trim (1) upward. | Insert door sill trim (1) first in the rear area under the B-pillar trim (6). To prevent movement of the protective foil (7) during installation of the door sill trim (1), fix it in place with two adhesive strips. |
|
| 7 | Install in the reverse order. |
