Remove/Install Dome Lamp In Load Compartment - Ar82.20-D-5615TS
Model 907.6
Shown on model 910.6 with code FY1 (Anti-Theft Protection Package)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||

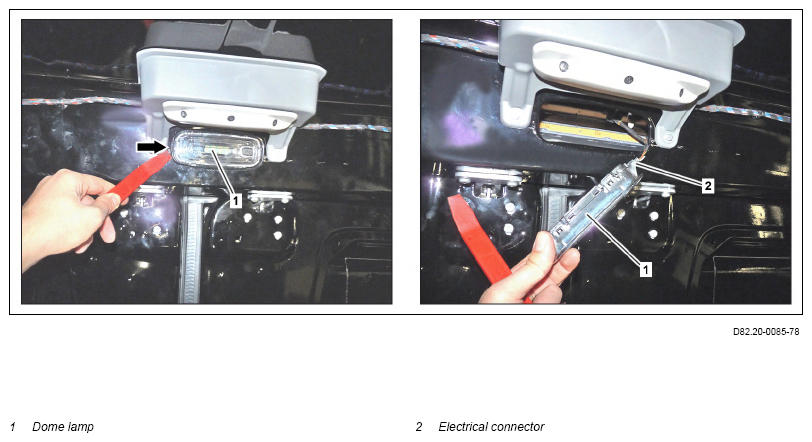

| 1 | Unclip dome lamp (1) at side (arrow) | Fig 1 | |
| 2 | Remove dome lamp (1) until the electrical connector (2) is accessible | ||
| 3 | Disconnect electrical connector (2) and remove the dome lamp (1) | ||
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Perform function check of dome lamp (1) |
