Retrofit Wiring Harness For Reversing Camera With Display In Inside Rearview Mirror - An54.65-D-0031-01TSB

	Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers	AS54.10-Z-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Overview of wiring diagrams for electrical system, equipment and instruments	Model 907	PE54.00-D-1100LAA
	Overview of wiring diagrams for electrical system, equipment and instruments
	Survey of wiring diagrams of interior equipment

Model 907.6/7

with code F61 (Rear mirror inside)

except code FR3 (Reversing camera inside rearview mirror display)

except code FV1 (Pre-installation for reversing camera with inside rearview mirror display) when terminal 15 is provided via vehicle interior fuse and relay module (F152)

Headless screws/bolts: screws/bolts and nuts, coarse-pitch thread

HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD

Do not kink any electric lines and ensure that they are routed without any chafing.

This prevents damage.

The following fuse slots can be used:

Electrical fuse 15-1 (F152f15-1)

Electrical fuse 15-2 (F152f15-2)

Model 907.6/7 except code E2I (Auxiliary battery for retrofit consumer, vehicle interior) except code E2M (Auxiliary battery for retrofit consumer, engine compartment)

The following fuse slots can be used:

Electrical fuse 24 (F152f24)

Electrical fuse 25 (F152f25)

Electrical fuse 26 (F152f26)

Electrical fuse 27 (F152f27)

Shown on model 907.6

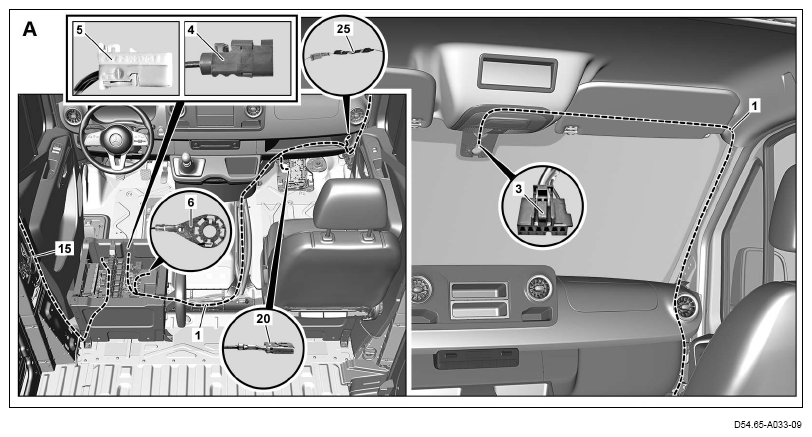

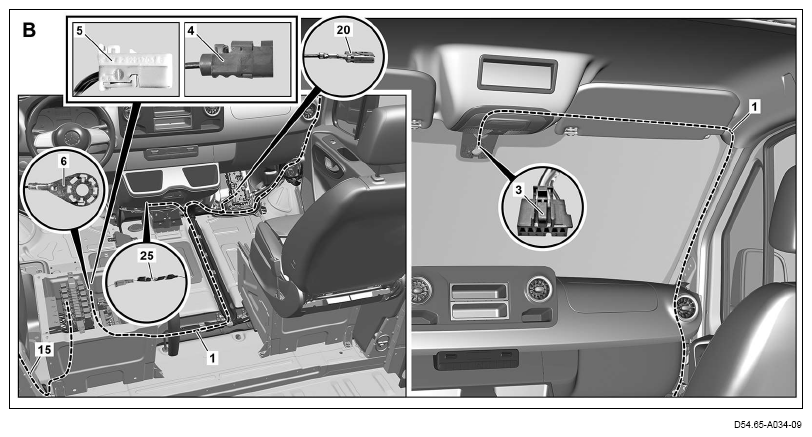

1. Route electrical wiring harness (1) as shown.

   Loosely fasten electrical wiring harness (1) in sections at factory-installed electrical wiring harness or at a suitable position using cable ties.

   Model 907

   See Fig. A.

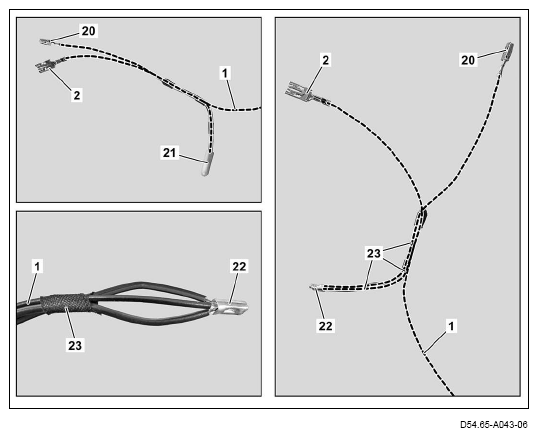

2. Disconnect fabric tape (23) of electrical wiring harness (1).
3. Remove cover (21) of line connector (22).
4. Disconnect electric line of contact socket (2) of electrical wiring harness (1) that is no longer required from line connector (22).
5. Attach cover (21) to line connector (22).
6. Fasten cover (21) with fabric tape and insulate.
7. Attach new fabric tape (23) as shown.

   Shown on model 907

8. Check plug (27) for free contact cavity.

   If a free contact cavity is present in plug (27):

   ↓

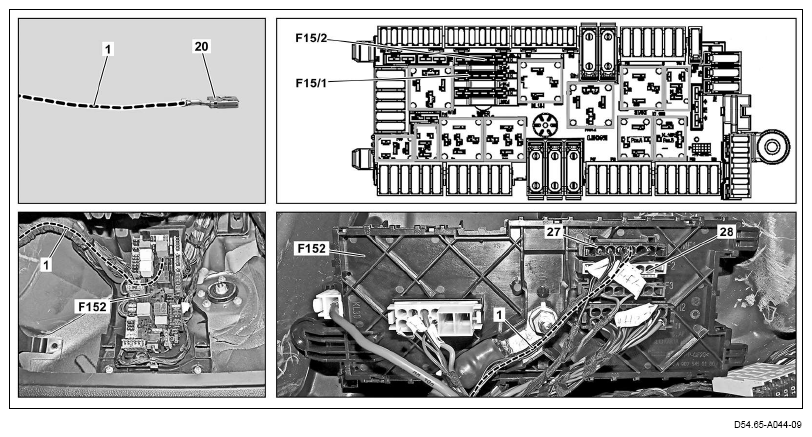

   Disconnect plug (27) from vehicle interior fuse and relay module (F152).

   To do so, remove fuse (F15/2).

   If there is no free contact cavity in plug (27):

   ↓

   Disconnect plug (28) from vehicle interior fuse and relay module (F152).

   To do so, remove fuse (F15/1).

9. Install contact socket (20) of electrical wiring harness (1) into free contact cavity in corresponding plug (27, 28).
10. Connect corresponding plug (27, 28) to vehicle interior fuse and relay module (F152).
11. Install corresponding fuse (F15/2, F15/1).

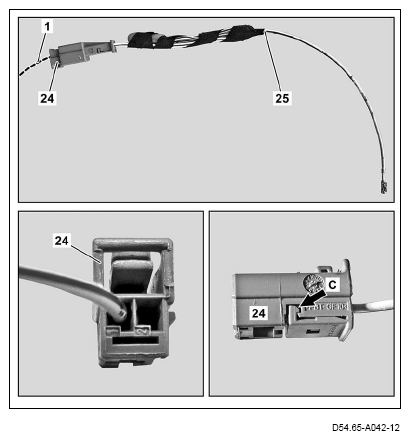

12. Disconnect plug (24) of electrical wiring harness (1) from electrical wiring harness (25).
13. Release plug (24) (arrow C).

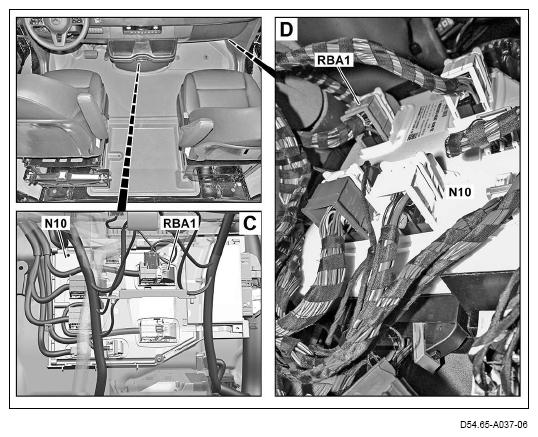

14. Release and disconnect electrical connector (RBA1) from signal acquisition and actuation module (SAM) control unit (N10).

    Model 907

    See fig. D.

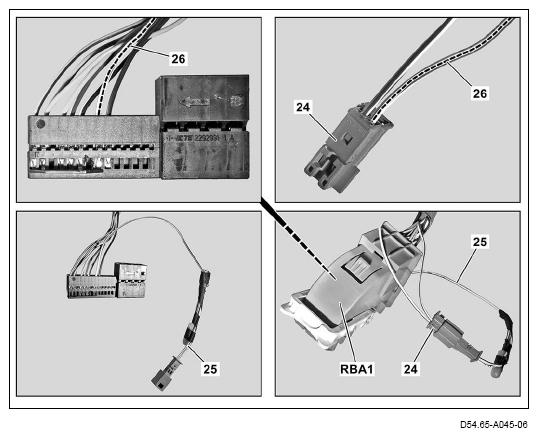

15. Disassemble electrical connector (RBA1).

    To do so, release plug housing, guide out plugs and disconnect from each other.

16. Remove electric line (26) "BU/WH" of contact cavity 11 of electrical connector (RBA1).
17. Install electric line "BU/WH" of electrical wiring harness (25) in contact cavity 11 of electrical connector (RBA1).
18. Install removed electric line (26) "BU/WH" in plug (24).
19. Lock plug (24).
20. Connect plug (24) to electrical wiring harness (25).
21. Assemble electrical connector (RBA1).

    To do so, connect plugs, guide into plug housing and lock.

22. Strap down extended length of electric line (26) "BU/WH" and electrical wiring harness (25) at a suitable point using fabric tape.
23. Connect electrical connector (RBA1) to SAM control unit (N10).

    Model 907

    See fig. D.

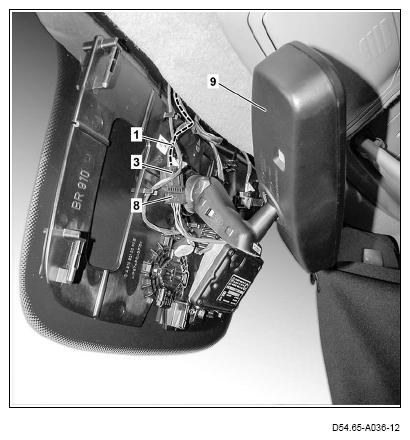

24. Connect plug (3) of electrical wiring harness (1) to plug (8) of inside rearview mirror (9).

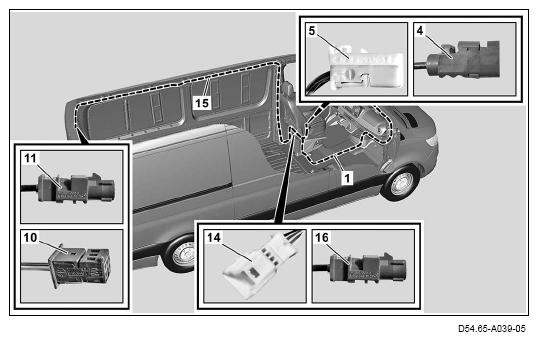

25. Route electrical wiring harness (15) as shown.

    Loosely fasten electrical wiring harness (15) in sections at factory-installed electrical wiring harness or at a suitable position using cable ties.

26. Connect plug (4) of electrical wiring harness (1) to plug (16) of electrical wiring harness (15).
27. Connect plug (5) of electrical wiring harness (1) to plug (14) of electrical wiring harness (15).

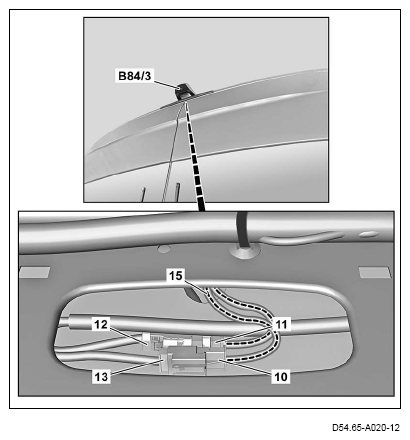

28. Connect plug (10) of electrical wiring harness (15) to plug (13) of reversing camera (B84/3).
29. Connect plug (11) of electrical wiring harness (15) to plug (12) of reversing camera (B84/3).
30. Tighten loosely attached cable ties on complete electrical wiring harness (15).

    If necessary,

    ↓

    Strap down extended length of electrical wiring harness (15) at a suitable point.

    Shown on model 907.6

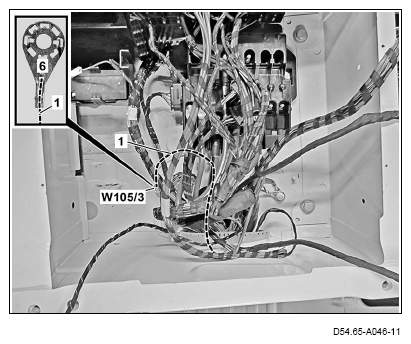

31. Remove nut of MWH cockpit ground point (W105/3).
32. Connect cable lug (6) of electrical wiring harness (1) to MWH cockpit ground point (W105/3).
33. Attach nut of MWH cockpit ground point (W105/3) S.
34. Tighten loosely attached cable ties on complete electrical wiring harness (1).

    If necessary,

    ↓

    Strap down extended length of electrical wiring harness (1) at a suitable point.
