Remove/Install Vehicle Tool Kit Carrier Plate - Ar68.30-D-5021TS
Model 907

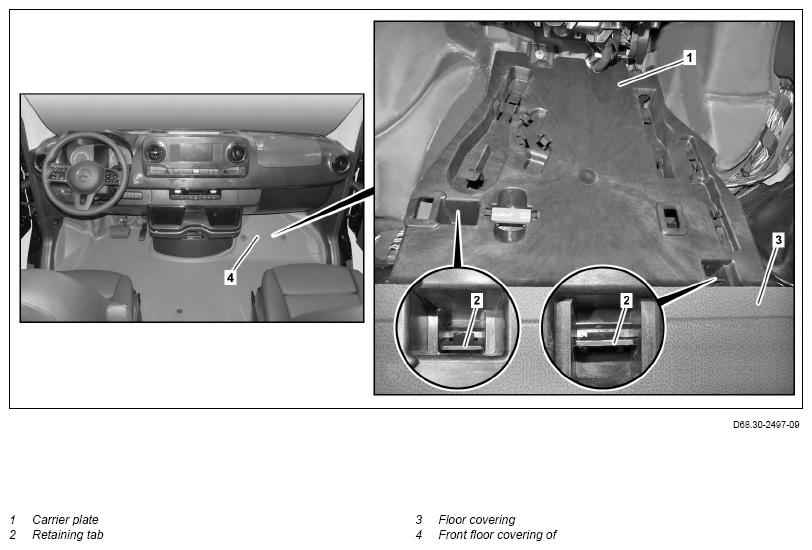

Shown on model 910
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Remove front floor covering of front passenger footwell (4) | Model 907 | AR68.80-D-0006TSR |
| 2 | Unclip carrier plate (1) at retaining tabs (2) with a suitable tool | ||
| 3 | Lift floor covering (3) and remove carrier plate (1) | ||
| 4 | Install in the reverse order |
