Remove/Install Rear Roof Paneling - Ar68.30-D-7608TSR
Model 907.6/7
Shown on model 907.7 with code H08 (roof-mounted air conditioning system, enhanced)
Shown on model 907.7 with code H08 (roof-mounted air conditioning system, enhanced)
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove interior protection sensor in passenger compartment. | Model 907.6/7 with code FY1 (Anti-Theft Protection package) |
AR80.50-D-9835TSR |
| 2 | Remove corresponding dome lamps in the passenger compartment. | AR82.20-D-0117TSR | |
| 3 | Remove rear section of the air duct of the roof-mounted air conditioning system. | Model 907.6/7 with code H08 (Roof-mounted air conditioning system, reinforced) Model 907.6/7 with code HH7 (Roof-mounted air conditioning system, basic) Model 907.6/7 with code HK4 (Rear air conditioning, reinforced) |
|
| AR83.50-D-7980-02TSR | |||
| 4 | Remove D-pillar trims. | AR68.30-D-4497TSR | |

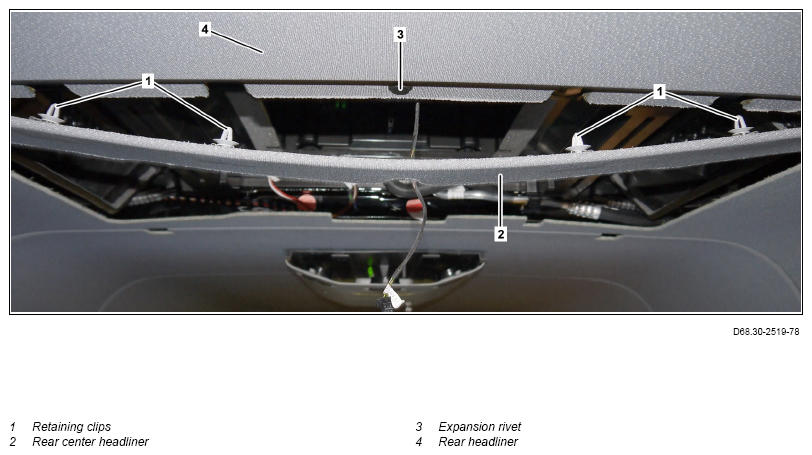

| 5 | Unclip retaining clips (1) of the rear center roof lining section (2). | ||
| Fig 1 | |||
| 6 | Remove expansion rivet (3) of the rear roof lining (4). | ||
| Fig 1 | |||

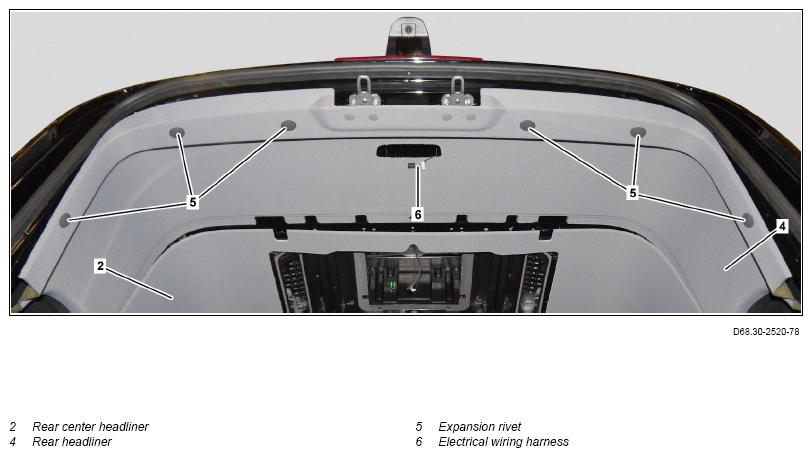

| 7 | Remove expansion rivets (5) of the rear roof lining (4). | ||
| Fig 1 | |||
| 8 | Guide electrical wiring harness (6) out of the rear roof lining (4). | ||
| 9 | Carefully lower rear roof lining (4) and take out of the vehicle. | ||
| 10 | Install in the reverse order. | ||
| Check | |||
| 11 | Perform function test of the dome lamps. | ||
| 12 | Perform function test of the interior protection sensor. | Model 907.6/7 with code FY1 (Anti-Theft Protection package) |
