Remove/Install B-Pillar Trim - Ar68.30-D-4705TS
Model 907.1/6

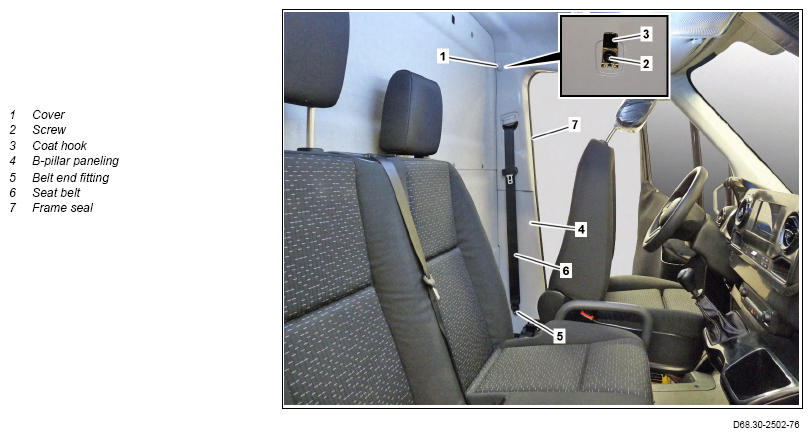

Shown on model 910.6 on left side of vehicle with code D50 (Full-width partition wall) and code SF1 (Electrically adjustable driver's seat)

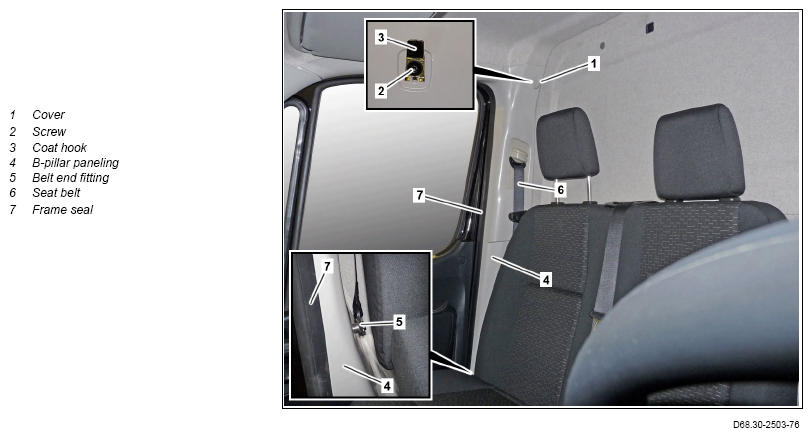

Shown on model 910.6 on right side of vehicle with code D50 (Full-width partition wall) and code S23 (Front passenger bench seat)
Shown on model 910.6 on right side of vehicle with code D50 (Full-width partition wall) and code S23 (Front passenger bench seat)

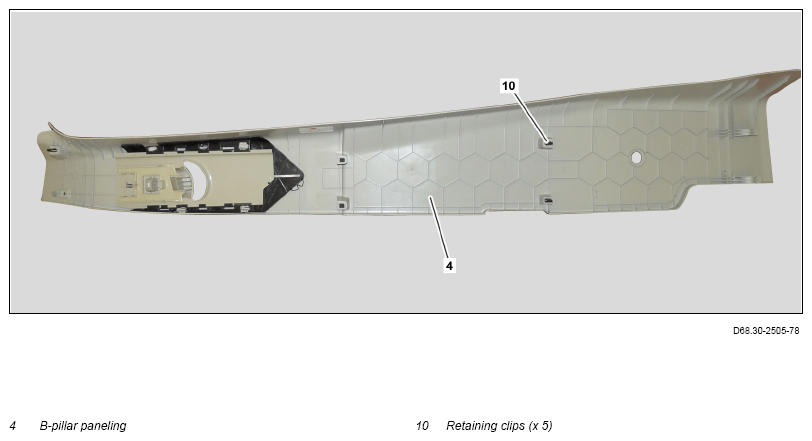

Shown on right B-pillar trim (4)
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Move corresponding front seat and seat backrest of front seat to front-most position | Model 907.1/6 with code S02 (Driver's seat) Model 907.1/6 with code S04 (Front passenger seat (standard seat)) Model 907.1/6 with code SB1 (Luxury driver's seat) Model 907.1/6 with code SB2 (Comfort co-driver's seat) Model 907.1/6 with code SF1 (Electrically adjustable driver's seat) Model 907.1/6 with code SF2 (Electrically adjustable co-driver's seat) Model 907.1/6 with code SL1 (Co-driver's seat) Model 907.1/6 with code SB3 (Suspension seat, comfort version, driver's seat) Model 907.1/6 with code SB4 (Suspension seat, comfort version, co-driver's seat) Model 907.1/6 with code SB9 (Driver's seat plus) |
|
| 2 | Remove cover (1) | Fig 2 | |
| 3 | Remove screw (2) and remove coat hook (3) from B-pillar | ||
| 4.1 | Remove seat belt end fitting (5) from B-pillar | Model 907.1/6 with code S02 (Driver's seat) Model 907.1/6 with code S04 (Front passenger seat (standard seat)) Model 907.1/6 with code SB1 (Luxury driver's seat) Model 907.1/6 with code SB2 (Comfort co-driver's seat) Model 907.1/6 with code SF1 (Electrically adjustable driver's seat) Model 907.1/6 with code SF2 (Electrically adjustable co-driver's seat) Model 907.1/6 with code S23 (Co-driver's seat double seat) Model 907.1/6 with code SB9 (Driver's seat plus) Model 907.6 with code S20 (Co-driver's seat, static, folding) |
|
| Note on calculation of tightening torque when using insertion or socket tools with various effective lengths | Model 907.1/6 with code S23 (Co-driver's seat double seat) |
AH00.00-P-0015-01CW | |
with code S23 (Co-driver's seat double seat) Installation: Commercially available devices/tools 17 mm open end wrench bit for torque wrench |
|||
| *BA91.40-N-1002-03TS | |||
| 4.2 | Remove seat belt end fitting (5) from front seat | Model 907.1/6 with code SL1 (Co-driver's seat) Model 907.1/6 with code SB3 (Suspension seat, comfort version, driver's seat) Model 907.1/6 with code SB4 (Suspension seat, comfort version, co-driver's seat) |
|
| AR91.40-D-1030-01TS | |||
| *BA91.40-N-1005-03TS | |||
| Fig 1 | |||
| 5 | Unclip B-pillar trim (4) from top to bottom | Position sealing frame (7) correctly on B-pillar trim (4). |
|
| Fig 1 | |||
| 6 | Remove B-pillar trim (4) from B-pillar and thread seat belt (6) with seat belt end fitting (5) through seat belt opening | ||
| Check | |||
| 7 | Check retaining clips (10) for damage and correct fit | If retaining clip (10) is damaged. ↓ Replace retaining clip (10). If retaining clip (10) is not correctly positioned in mount on B-pillar trim (4). ↓ Position retaining clip (10) correctly. |
|
| 8 | Install in the reverse order | ||
| Check | |||

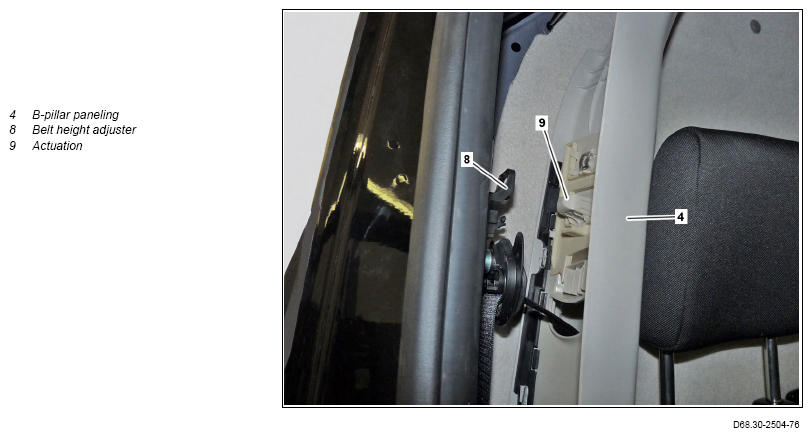

| 9 | Perform function check of seat belt height adjuster (8) |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA91.40-N-1002-03TS | Bolt, belt end fitting to B-pillar | Nm | 35 |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA91.40-N-1005-03TS | Bolt, seat belt end fitting on seat frame for front seat | Nm | 35 |
