Remove/Install Center Roof Trim - Ar68.30-D-7609TSR

Model 907.6/7

Shown on model 907.7 with code T16 (right sliding door)

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install

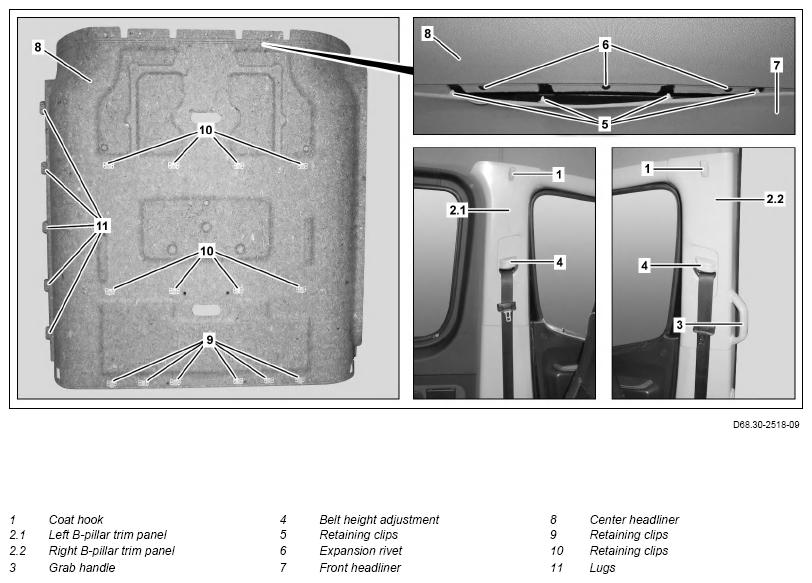

1	Remove covers of the clothes hooks (1) upward.	Long wedge	Fig 1
2	Remove screws and remove clothes hooks (1) from the B-pillar trims (2.1, 2.2).
3	Remove cover of the grab handle (3).	Model 907.6/7 with code T74 (Handle for entrance)
		Clip remover	Fig 2
4	Remove screws and remove grab handle (3).	Model 907.6/7 with code T74 (Handle for entrance)
5	Unclip B-pillar trims (2.1, 2.2) in top area.	: Ensure that the seat belt height adjustment is assembled correctly (4).
6	Remove corresponding dome lamps.		AR82.20-D-0117TSR
7	Remove front section of the air duct of the roof-mounted air conditioning system.	Model 907.6/7 with code H08 (Roof-mounted air conditioning system, reinforced) Model 907.6/7 with code HH7 (Roof-mounted air conditioning system, basic) Model 907.6/7 with code HK4 (Rear air conditioning, reinforced)
			AR83.50-D-7980-01TSR
8	Unclip retaining clips (5) in the rear area of the front roof lining (7).	: Replace damaged retaining clips (5). Clip remover	Fig 2
9	Remove expansion rivets (6) of the center roof lining (8) in the front area.	The front roof lining (7) conceals the expansion rivets (6).
		Clip remover	Fig 2
10	Remove top expansion rivet from the C-pillar on the side of the sliding door.	Model 907.6/7 with code T16 (Sliding door right) Model 907.6/7 with code T19 (Sliding door left)
		Clip remover	Fig 2
11	Detach sealing frame in sliding door portal in the area of the center roof lining (8).	Model 907.6/7 with code T16 (Sliding door right) Model 907.6/7 with code T19 (Sliding door left)
12	Unclip retaining clips (9) in the rear area of the center roof lining (8).	: Replace damaged retaining clips (9).
		Clip remover	Fig 2
13	Unclip retaining clips (10) in the center area of the center roof lining (8).	: Replace damaged retaining clips (10).
		Clip remover	Fig 2
14	Unhook shackles (11) of the center roof lining (8) on the opposite side of the sliding door	Removal:  Slightly press the shackles (11) upward in the area of the cutouts with the long wedge; while doing so, pull outward and unhook.
		Long wedge	Fig 1
15	Guide electrical wiring harnesses of the dome lamps out of the center roof lining (8).
16	Pull center roof lining (8) out of the front roof lining (7) and out of the B-pillar trims (2.1, 2.2), lower carefully, and remove from the vehicle.	Helper required.
17	Install in the reverse order.
	Check
18	Perform function test of the dome lamps.

Fig 1: Long Wedge (115 589 03 59 00)

Fig 2: Clip Remover (452 589 01 63 00)
