Remove/Install Lower A-Pillar Trim On Front Passenger Side - Ar68.30-D-0012TSR
Model 907
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||

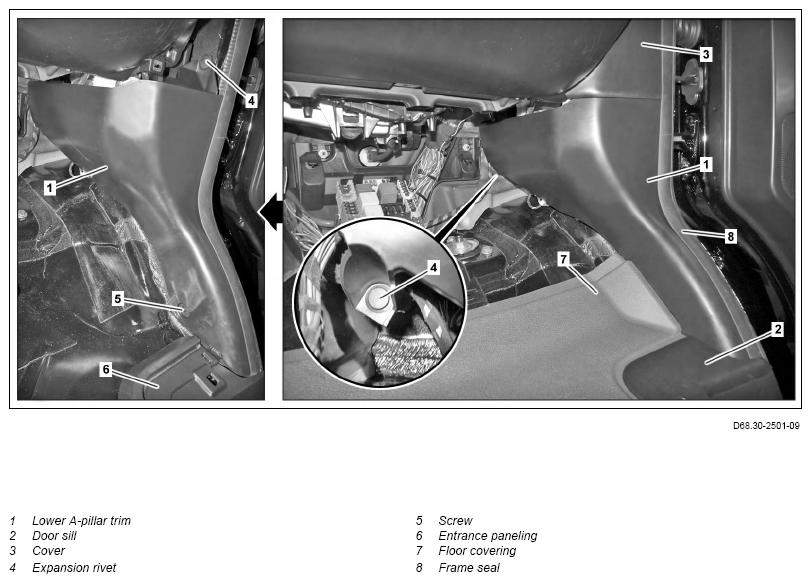

| 1 | Remove carrier plate vehicle tool kit | AR68.30-D-5021TS | |
| 2 | Remove door sill molding (2) | AR68.30-D-1306TS | |
| 3 | Remove panel (3) | AR83.10-D-4719TS | |
| 4 | Remove expansion rivet (4) | ||
| 5 | Fold back floor covering (7) and remove screw (5) | ||
| 6 | Slightly lift door sill trim (6) in front area and remove lower A-pillar trim (1) | ||
| 7 | Install in the reverse order |
