Remove/Install B-Pillar Trim On Driver's Side - Ar68.30-D-4707TS
Model 907.2/7

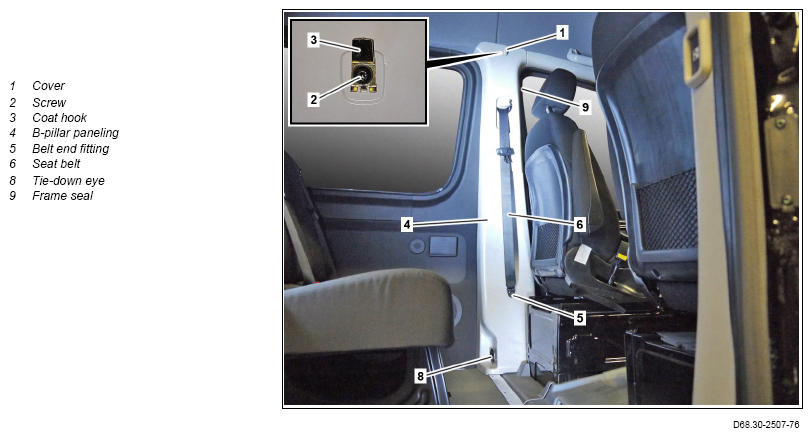

Shown on model 907.7 with code SF1 (Electrically adjustable driver's seat)

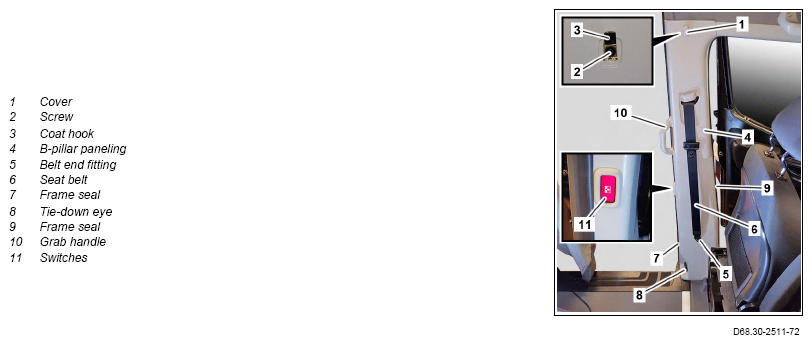

Shown on model 907.7 with code SB1 (Comfort driver's seat), code T19 (Left sliding door), code T56 (Electrical actuator for left sliding door), and code T74 (Grab handle for entrance)
Shown on model 907.7 with code SB1 (Comfort driver's seat), code T19 (Left sliding door), code T56 (Electrical actuator for left sliding door), and code T74 (Grab handle for entrance)
Shown on model 907.7 with code T56 (Electrical actuator for left sliding door) and code T74 (Grab handle for entrance)
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Move front seat and seat backrest of front seat to front-most position | ||
| 2 | Remove cover (1) | Fig 2 | |
| 3 | Remove screw (2) and remove coat hook (3) from B-pillar | ||
| 4 | Remove tie-down eye (8) from B-pillar | *BA68.50-D-1001-03TS | |
| 5 | Remove grab handle (10) from B-pillar | Model 907.2/7 with code T74 (Handle for entrance) |
|
| Fig 2 | |||
| 6.1 | Remove seat belt end fitting (5) from B-pillar | Model 907.2/7 with code S02 (Driver's seat) Model 907.2/7 with code SB1 (Luxury driver's seat) Model 907.2/7 with code SB9 (Driver's seat plus) Model 907.2/7 with code SF1 (Electrically adjustable driver's seat) |
|
| *BA91.40-N-1002-03TS | |||
| 6.2 | Remove seat belt end fitting (5) from front seat | Model 907.2/7 with code SB3 (Suspension seat, comfort version, driver's seat) |
|
| AR91.40-D-1030-01TS | |||
| *BA91.40-N-1005-03TS | |||
| Fig 1 | |||
| 7 | Unclip B-pillar trim (4) from top to bottom | Model 907.7 with code T19 (Sliding door left) Installation: Position sealing frame (7) correctly on B-pillar trim (4). |
|
| Fig 1 | |||
| 8 | Disconnect electrical connector for switch (11) | Model 907.7 with code T56 (Electric operation of sliding door on left) |
|

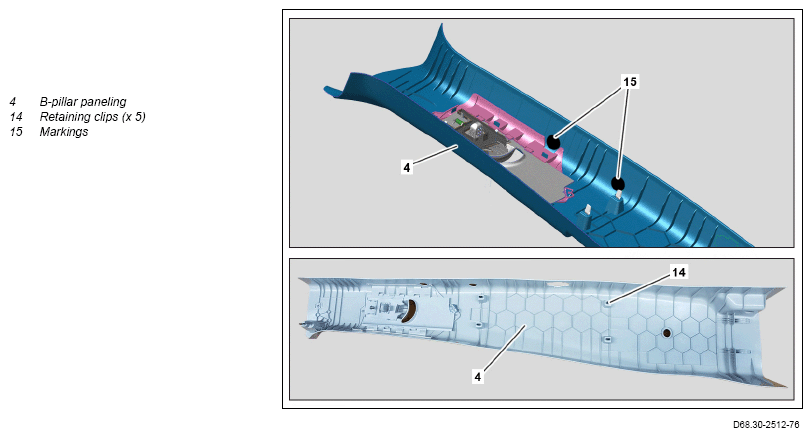

| 9 | Remove B-pillar trim (4) from B-pillar and thread seat belt (6) with seat belt end fitting (5) through seat belt opening | with code T74 (Handle for entrance) Installation: When replacing the B-pillar trim (4), drill 2 holes on the basis of the existing markings (15). |
|
| Check | |||
| 10 | Check retaining clips (14) for damage and correct fit | If retaining clip (14) is damaged. ↓ Replace retaining clip (14). If retaining clip (14) is not correctly positioned in mount on B-pillar trim (4). ↓ Position retaining clip (14) correctly. |
|
| 11 | Install in the reverse order | ||
| Check | |||

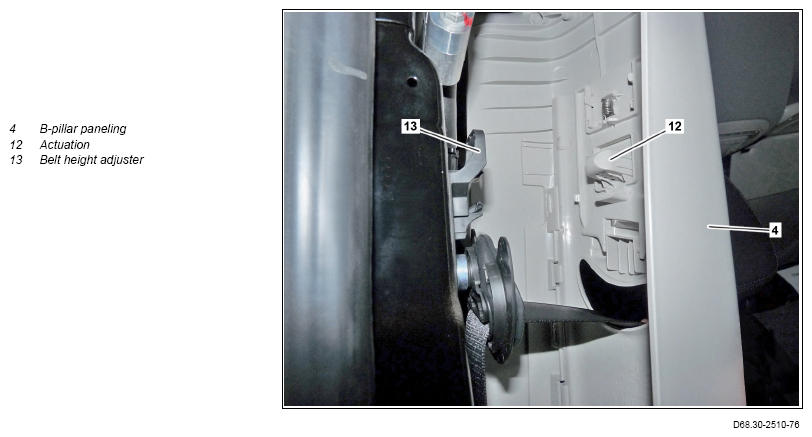

| 12 | Perform function check of seat belt height adjuster (13) |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA68.50-D-1001-03TS | Screw, tie-down eye to B-pillar | Nm | 18 |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA91.40-N-1002-03TS | Bolt, belt end fitting to B-pillar | Nm | 35 |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA91.40-N-1005-03TS | Bolt, seat belt end fitting on seat frame for front seat | Nm | 35 |
