Remove/Install Front Passenger Side Fuse And Relay Module - Ar54.15-D-0004TS

Model 907

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Detach ground line of on-board electrical system battery.		AR54.10-D-0029TS
2	Detach ground line from additional battery.	Model 907 with code E2M (Auxiliary battery for retrofit consumers, engine compartment)	AR54.10-D-0004TSR
		Model 907 with code E2I (Auxiliary battery for retrofitted consumers, interior)	AR54.10-D-0004TS
3	Remove vehicle tool kit carrier plate.		AR68.30-D-5021TS

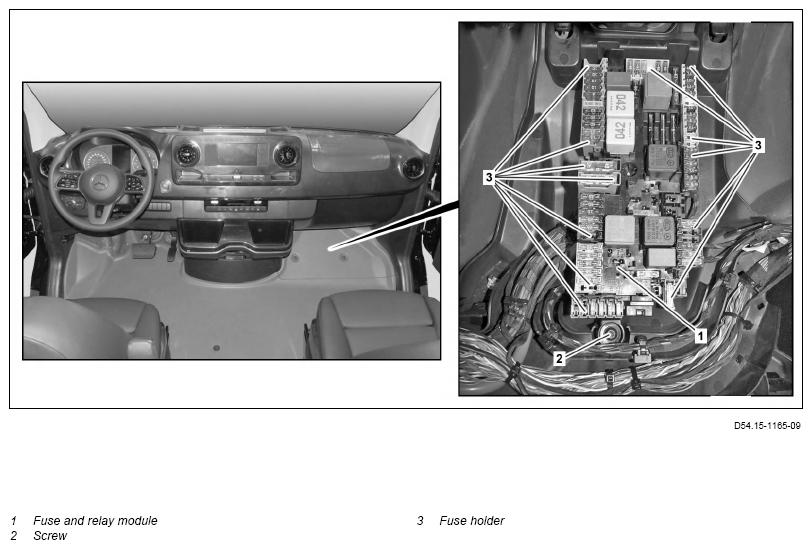

4	Remove screw/bolt (2).
5	Loosen fuse and relay module (1) and detach fuse holders (3) from fuse and relay module (1) with electrical lines connected.	: Insert fuse and relay module (1) into guides at the front first. Mark installation position of fuse holders (3) relative to fuse and relay module (1). The number of fuse holders (3) may vary depending on the vehicle equipment.

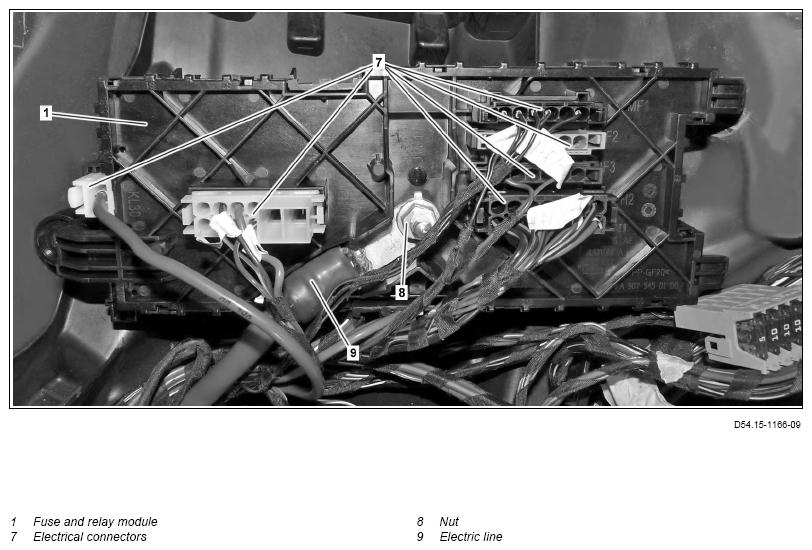

6	Disconnect electrical connectors (7) on back of fuse and relay module (1).	The number of electrical connectors (7) may vary depending on the vehicle equipment
7	Unscrew nut (8) and remove electrical line (9).	: Observe torque specification on housing of fuse and relay module (1).
8	Remove fuse and relay module (1).
9	Install in the reverse order.
