Overall network (GVN) function - GF00.19-P-0001T
MODEL 211.0/2 up to 31.5.06 except CODE (494) USA version except CODE (498) Japan version
MODEL 211.0/2 up to 30.6.06 with CODE (494) USA version with CODE (498) Japan version

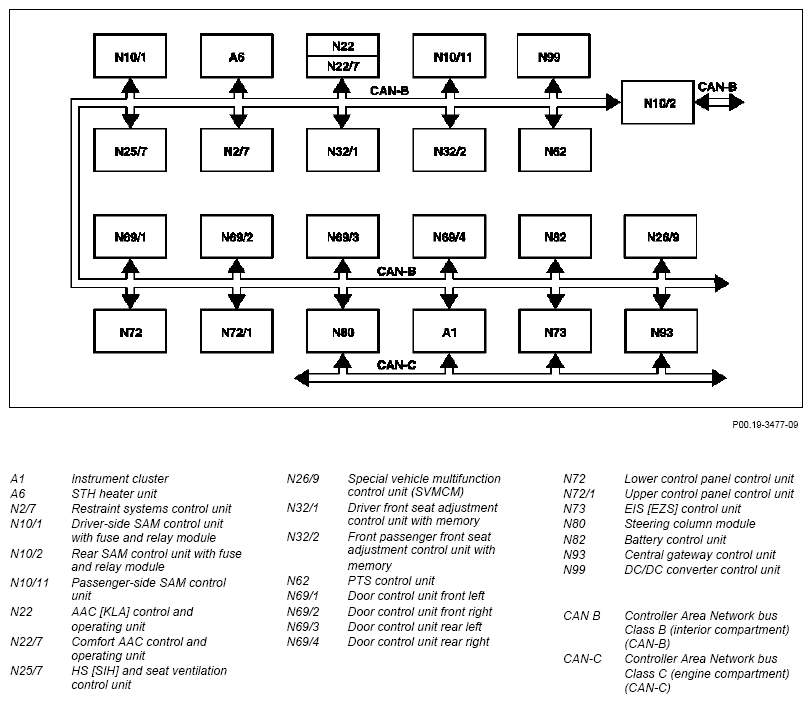

Networking of control units on CAN-B

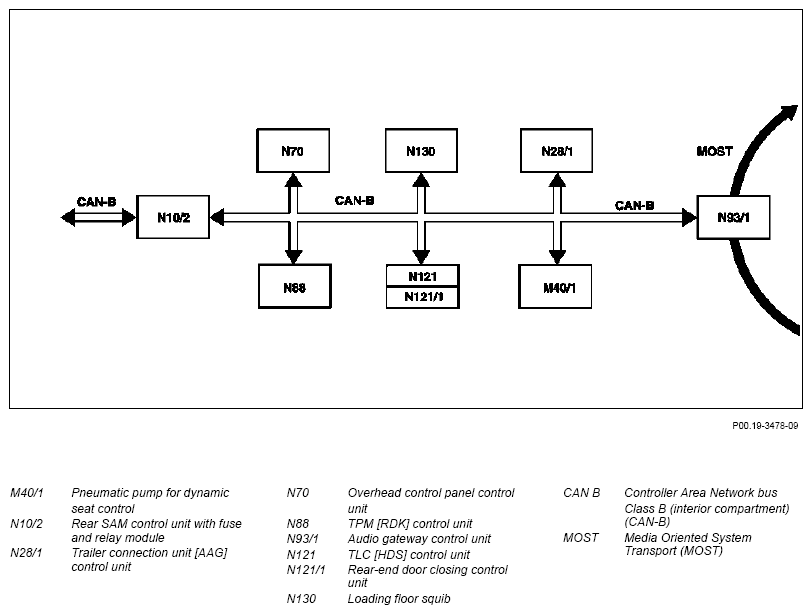

Networking of control units on CAN-B (Continuation)

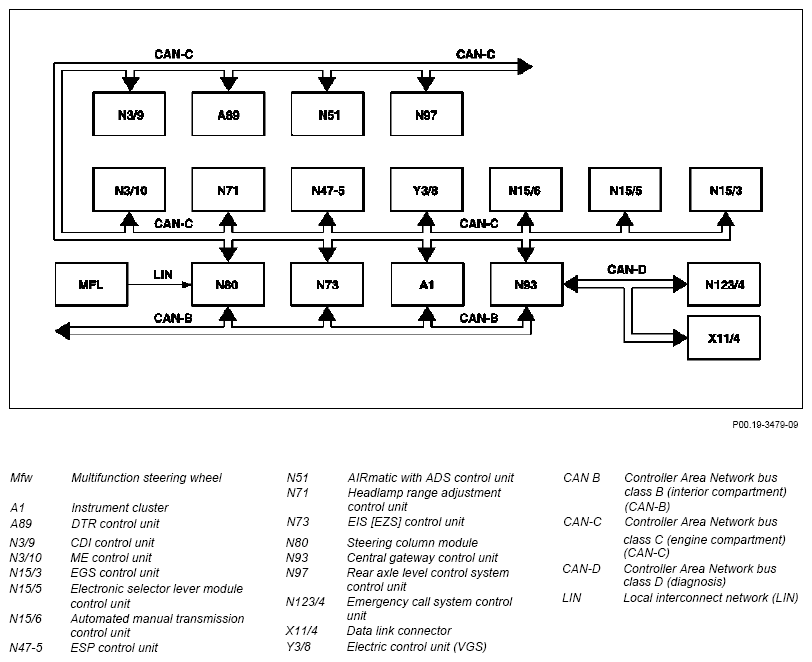

Networking of control units on CAN-C
Representation of MOST

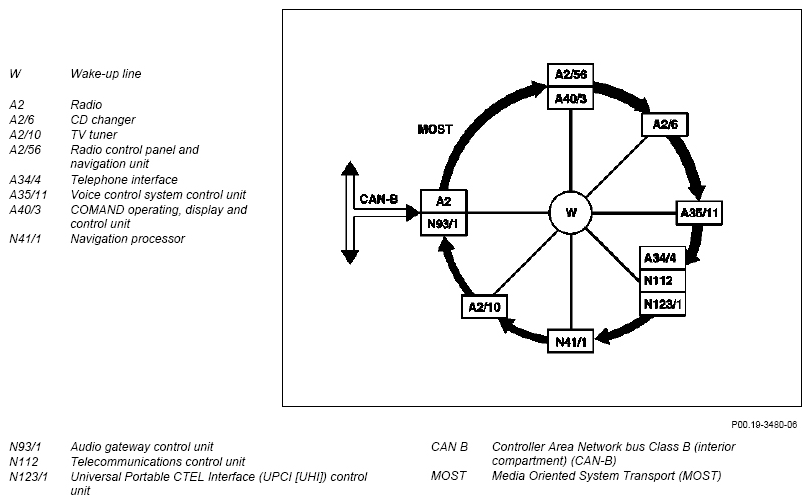

Except code (494) USA version and except code (498) Japan version

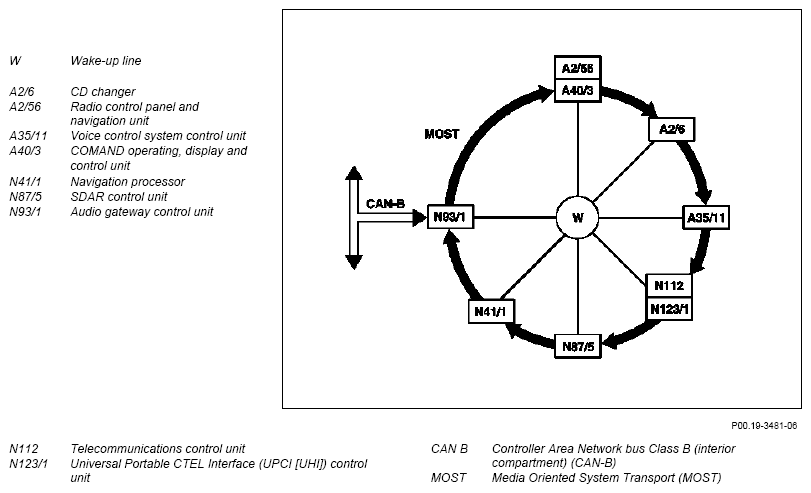

Representation of MOST with code (494) USA version

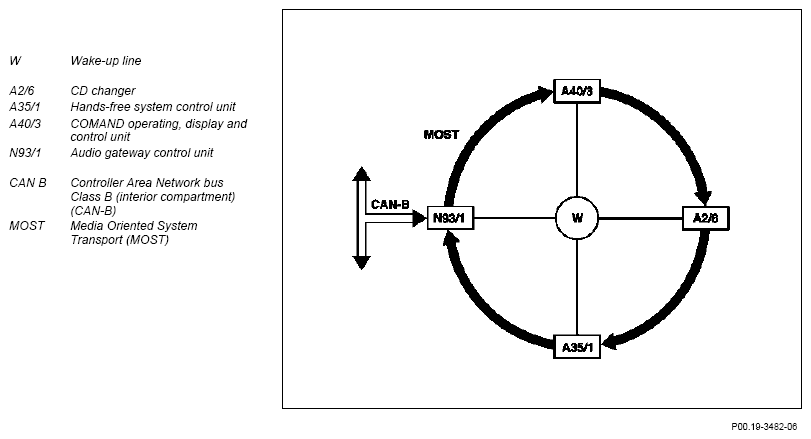

Representation of MOST with CODE (498) Japanese version
Overall network
The further development of driver information systems as well as the spread of video-based driver-supporting systems (e.g. backup camera, ambient sensor technology), for example, are reflected in the requirements placed on bus systems.
In automotive engineering, the term "Controller Area Network (data bus/CAN bus)" means that data are exchanged between the majority of control units in a vehicle via a CAN data bus.
A CAN data bus is a data collecting line, the data of which can be used by almost all connected control units.
Function of networking
Most control units of the vehicle are linked to each other via CAN data bus systems, in other words there is no electrical connection between a sensor and the executing actuator. A corresponding CAN message is generated from the sensor signal and made available to the CAN data bus system.
The message is sent in a message-oriented or address-oriented manner and is evaluated by the respective control units; it can, however, be received by other control units and evaluated if necessary.
The corresponding actuators are then actuated by these control units. In certain cases, various received messages are also combined in a control unit to form a new message. The new message is then also available for other control units on the CAN data bus system.
Data bus systems
Basically, the following data bus systems are involved in the networking:
- Controller area network bus class B (interior compartment) (CAN B)
- Controller Area Network bus, class C (engine compartment) (CAN C)
- Controller Area Network bus class D (diagnosis) (CAN-D) media-oriented system transport (MOST)
- Local interconnect network bus (LIN)
The operational field is differentiated as follows:
- CAN-B links the control units of systems located in the vehicle interior (e.g. power windows, heated rear window etc.).
- CAN-C links the control units for the drive and chassis systems (e.g. engine, transmission control etc.).
- CAN-D links the central gateway control unit with the data link connector to perform diagnosis on all networked control units.
- MOST links the control units of the audio systems and navigation systems (e.g. telephone, voice control etc.) via a fiber optic cable.
- The LIN bus is used where rather simple control and monitoring tasks are to be performed in the vehicle.
Higher requests are placed on the CAN-C with regard to immunity to interference, e.g. with respect to electromagnetic effect or radiation and the high data transfer rate.
CAN bus systems
The CAN bus systems are two-wire bus systems. They differ from one another in terms of transfer rate. CAN-B is the slower bus.
MOST bus
The MOST bus is an optical bus system. Here the data are transferred via fiber optical cables to the connected control units for information, navigation, and communication systems. It has the fastest transfer rate.
LIN
The LIN is a single-wire bus system. Compared to the other bus systems, the LIN is slow. It is used between the multifunction steering wheel and the steering column module (N80).
Data exchange between data bus systems
The radio or the COMAND operating, display and control unit forms the interface (gateway) for data exchange between the MOST and CAN-B. The central gateway control unit (N93) is the interface for data interchange between the CAN B bus and CAN C bus. At the same time, it is the interface via CAN-D to the data link connector (X11/4), in order to test the control units connected to the different bus systems using STAR DIAGNOSIS.
The steering column module, instrument cluster (A1) and EIS [EZS] control unit (N73) are connected both to CAN-B and CAN-C. However, they do not act as an interface (gateway) between the two data bus systems. The steering column module reads in the switch actuations on the steering column module and all button actuations on the multifunction steering wheel (MFL) over the LIN bus and places them on the CAN-B. The steering wheel angle is recorded by the steering angle sensor (N49) and sent over the steering column module to the CAN-C.
Data exchange procedure using wheel speed sensing for navigation as an example
The COMAND operating display and control unit (A40/3) requires the wheel speeds from the left front rpm sensor (L6/1) and the right front rpm sensor (L6/2).
The "wheel speed" and "wheel rotation direction" signals of the left front rpm sensor and right front rpm sensor are read in via discrete lines by the ESP, SPS [PML] and BAS control unit (N47-5). The "wheel speed" and "wheel rotation direction" signals are processed in the ESP, SPS [PML] and BAS control unit and placed as a CAN message on the CAN-C. The central gateway control unit (N93) operates as an interface (gateway) and transmits the CAN message to the CAN-B.
If necessary the COMAND operating, display and control unit picks up the message via the interface (gateway) of the audio gateway control unit (N93/1) and processes it. The instrument cluster is likewise able to pick up this CAN message and to process it.
| Central gateway control unit, location/task | GF00.19-P-4100T | |
| CDI control unit, location/task/function | Engine 646.951/961 with engine 647.961 with engine 648.961 |
GF07.16-P-3102IB |
| ME-SFI control unit, location/task/design/function | with engine 113.990 | GF07.61-P-5000AM |
| with engines 112.913/917/949/954 Engine 113.967/969 |
GF07.61-P-5000F | |
| with engine 271.942 | GF07.61-P-5000KE | |
| SEQ control unit, location/task/design | TRANSMISSION 716.6 in model 211 with code (424) Sequentronic automated manual transmission (SEQ) | GF26.19-P-4009T |
| ETC control unit, location/task | Transmission 722.6 | GF27.19-P-4012G |
| Electronic selector lever module control unit, location/task/design | Transmission 722.6 | GF27.19-P-5138P |
| DTR control unit, location/task/design/function | With engines 112, 113, 271, 646, 647, 648 up to 31.5.04 with code (219) Distronic (DTR) | GF30.30-P-3104K |
| AIRmatic with ADS control unit, location/task/function | With code (489) AIRmatic (semi-active air suspension) | GF32.22-P-4200E |
| Rear axle level control system control unit, location/task | Model 211.2 except CODE (489) AIRmatic (semi-active air suspension) | GF32.33-P-3300A |
| Tire pressure monitor control unit, location/task/design | 211.0 Up to 31.5.05 with code (475) Tire pressure monitor except code (494) USA version except CODE (498) Japanese version 211.0 Up to 30.6.05 with code (475) Tire pressure monitor with code (494) USA version with CODE (498) Japanese version |
GF40.15-P-3001T |
| Tire pressure monitor control unit, location/task/design | 211.2 Up to 31.5.05 with code (475) Tire pressure monitor except code (494) USA version except CODE (498) Japanese version 211.2 Up to 30.6.05 with code (475) Tire pressure monitor with code (494) USA version with CODE (498) Japanese version |
GF40.15-P-3001TA |
| Tire pressure monitor control unit, component description | As of 1.6.05 with code (475) Tire pressure monitor (Siemens) except code (494) USA version except code (498) Japan version As of 1.7.05 with code (475) Tire pressure monitor (Siemens) with code (494) USA version with code (498) Japan version |
GF40.15-P-5124TR |
| ESP control unit, location/task/function | GF42.45-P-4500SL | |
| Steering wheel heater (LRH) voltage converter, location/task | Up to 31.5.04 with code (443) Steering wheel heater | GF46.11-P-4000T |
| Upper control panel control unit, location/task/design/function | Model 211.0 | GF54.21-P-4105T |
| Model 211.2 | GF54.21-P-4105TS | |
| Driver-side SAM control unit with fuse and relay module, location/task/design | GF54.21-P-4109T | |
| Front passenger-side SAM control unit with fuse and relay module, location/task/design | GF54.21-P-4111T | |
| Lower control panel control unit, location/task/design/function | GF54.21-P-4116T | |
| Battery control unit location/task | GF54.21-P-4121T | |
| Steering column module, location/task | GF54.21-P-4125T | |
| Rear SAM control unit with fuse and relay module, location/task | Model 211.0 | GF54.21-P-4130T |
| Model 211.2 | GF54.21-P-4130TA | |
| Instrument cluster (IC), location/task | GF54.30-P-3039T | |
| PTS control unit, location/task | with code (220) Parktronic system (PTS) | GF54.65-P-4100T |
| Loading floor control unit, location/task | Model 211.2 with CODE (943) Automatically extendable main loading floor |
GF68.80-P-4001TA |
| Rear-end door control unit, location/task | Model 211.2 | GF68.80-P-4002TA |
| Driver front door control unit, location/task | GF72.29-P-4115T | |
| Passenger-side front door control unit, location/task | GF72.29-P-4116T | |
| Door control unit rear, location/task/function | GF72.29-P-4117T | |
| RTL control unit, location/purpose | Model 211.0 With code (881) Remote trunk closing (RTC [HDFS]) |
GF80.20-P-4120T |
| Electronic ignition switch control unit, location/task | GF80.57-P-4120T | |
| Headlamp leveling system control unit, location/task/design/function | Bi-xenon headlamp unit Code 614. with code (615) Bi-xenon headlamp unit with integrated curve illumination |
GF82.10-P-2102T |
| Trailer recognition control unit, location/task | Model 211.004/006/016/026/028/042/043/061/065/070/076/206/216/226/242/261/265 with code (550) Trailer hitch |
GF82.10-P-2106T |
| Overhead control panel control unit, location/task/design | GF82.20-P-4110T | |
| TV tuner, location/task/design/function | up to 31.5.05 with code (527) COMAND APS (with navigation) With code (860) TV tuner |
GF82.60-P-3109TA |
| as of 1.6.05 with code (527) COMAND APS (with navigation) With code (863) Digital/analog TV tuner |
GF82.60-P-3109TB | |
| Radio control panel, location/task/design/function | Models 211.004/006/016/026/028/042/043/061/065/070/076 up to 28.2.03 | GF82.60-P-3115TB |
| as of 01.03.03 | GF82.60-P-3115TC | |
| Radio and navigation unit, location/task/design/function | with CODE (525) MB Audio 50 APS radio | GF82.61-P-4109T |
| Audio gateway control unit, location/task/design/function | GF82.62-P-3102T | |
| with code (529) HIGH Class Japan | GF82.62-P-3102TJ | |
| with code (528) HIGH Class USA | GF82.62-P-3102TU | |
| CD player with changer, location/task/design/function | GF82.64-P-3113T | |
| with code (529) HIGH Class Japan | GF82.64-P-3113TJ | |
| with code (528) HIGH Class USA | GF82.64-P-3113TU | |
| Telephone interface, location/task/design/function | GF82.70-P-3107T | |
| with code (528) HIGH Class USA | GF82.70-P-3107TU | |
| Telecommunications control unit, location/task/design/function | GF82.70-P-3114T | |
| with code (528) HIGH Class USA | GF82.70-P-3114TU | |
| Voice control system control unit, location/task | with code (813) Voice control system (VCS) | GF82.70-P-4113T |
| with code (528) HIGH Class USA | GF82.70-P-4113TU | |
| Hands-free system control unit location/task | with code (529) HIGH Class Japan | GF82.70-P-4115TJ |
| Universal Portable CTEL Interface (UPCI [UHI]) control unit, location/task | As of 1.6.04 with code (388) Telephone "Handy", UPCI system with code (387) Preinstallation for telephone "Handy", UPCI system, USA/Canada with code (386) Preinstallation for telephone "Handy", UPCI system |
GF82.70-P-5100T |
| Navigation processor, location/task/design/function | with code (527) COMAND APS (with navigation) | GF82.85-P-3103TA |
| with code (527) COMAND APS (with navigation) with code (528) HIGH Class USA |
GF82.85-P-3103TU | |
| Satellite radio, location/task | with code (528) HIGH Class USA | GF82.85-P-3113TU |
| With code (536) SIRIUS satellite radio | GF82.85-P-3113TUA | |
| Operating, display and control unit, location/task/design/function | with code (527) COMAND APS (with navigation) | GF82.85-P-3114TA |
| with code (529) HIGH Class Japan | GF82.85-P-3114TJ | |
| with code (528) HIGH Class USA | GF82.85-P-3114TU | |
| TELE AID control unit, location/task/design/function | with code (359) TELE AID emergency call system with code (494) USA version |
GF82.95-P-4100TMU |
| Control and operating unit for automatic air conditioning, location/task | Except code (581) Comfort automatic air conditioning | GF83.40-P-2180T |
| Comfort automatic air conditioning control and operating unit, location/task | with code (581) Comfort automatic air conditioning | GF83.40-P-2181TT |
| Stationary heater/heater booster control unit, location/task | with code (228) stationary heater | GF83.70-P-4002T |
| Left front seat adjustment control unit with memory location/task | with code (275) Memory package (driver seat, steering column, mirrors) | GF91.29-P-2106T |
| Right front seat adjustment control unit, with memory location/task | with code (242) Electrically adjustable front passenger seat with memory With code (275) Memory package (driver seat, steering column, mirrors) |
GF91.29-P-2107T |
| Heated seats/seat ventilation control unit, location/task | up to 31.5.05 With code (401) Front deluxe seats, incl. seat heating and seat ventilation with CODE (872) Electric seat heater left and right rear seats with CODE (873) Seat heater left and right front seats as of 1.6.05 with code (401) Front deluxe seats, incl. seat heating and seat ventilation with CODE (872) Electric seat heater left and right rear seats As of 01.06.04 with code (443) Steering wheel heater |
GF91.30-P-3005T |
| Supplemental restraint systems control unit, location/task/design | GF91.60-P-4018T |
