Voice control system control unit, location/task - GF82.70-P-4113T

MODEL 211.0/2 with CODE (813) Voice control system (VCS [SBS])

MODEL 211.0/2 as of 1.7.06 with CODE (530) COMAND APS USA (with navigation system)

Shown on model 211.0

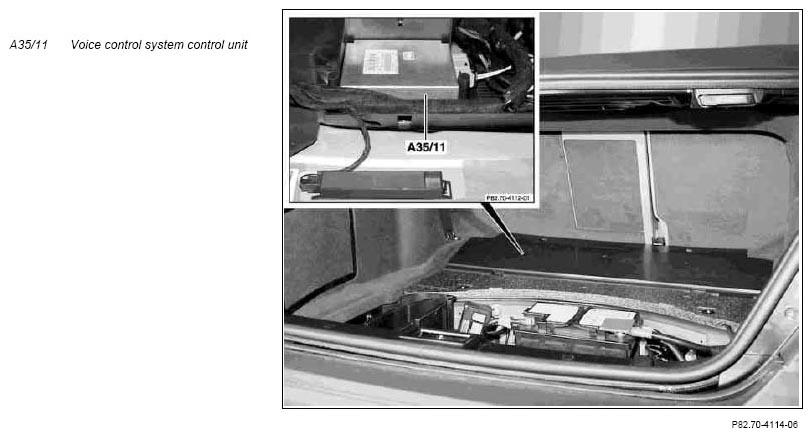

Fig 1: Locating Voice Control System Control Unit - Shown On Model 211.0

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Voice control system control unit, location	The voice control system control unit (A35/11) is installed at the trunk floor on the left behind the rear bench seat.
Voice control system control unit, location	Model 211.2	GF82.70-P-4113-01TS
Voice control system control unit, task	Control of the communications and navigation systems via voice input Enables a volume control which is dependent on the surroundings Interface to the hands-free system microphone group (A67b1)
