TV tuner, location/task/design/function - GF82.60-P-3109TB

Model 211.0/2 as of 1.6.05 with CODE (527) COMAND APS (with navigation) with CODE (863) Digital/analog TV tuner

Shown on model 211.0

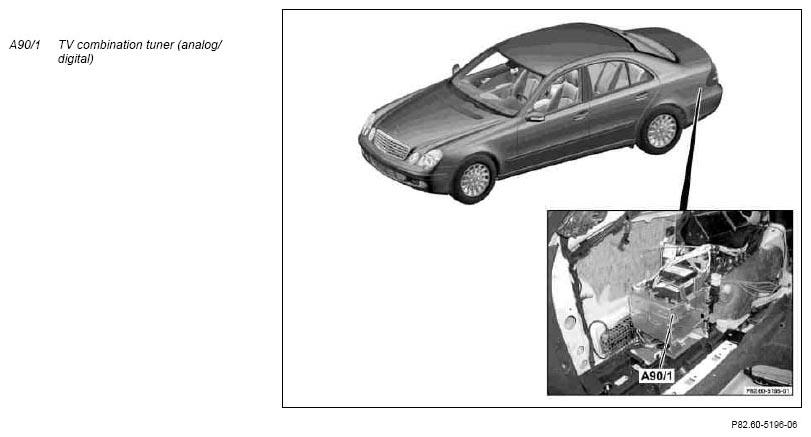

Fig 1: Locating TV Combination Tuner (Analog/Digital) - Shown On Model 211.0

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

TV tuner location	The TV combination tuner (analog/digital) (A90/1) on models 211.0/2 is located on the side wall behind the left, inner wheelhouse liner above the navigation processor (N41/1).
TV tuner, task	Reception of analog and terrestrial digital TV signals Forwarding of video and audio signals to the COMAND operating, display and control unit (A40/3) and the audio gateway control unit (N93/1)
TV tuner, design	4-fold antenna diversity, separated into video and audio signals TV-tuner modules for audio and video reception Multistandard receiver Multistandard signal processing
TV tuner, function		GF82.60-P-3109-02TB
