Rear SAM control unit with fuse and relay module, location/task - GF54.21-P-4130TA

MODEL 211.2

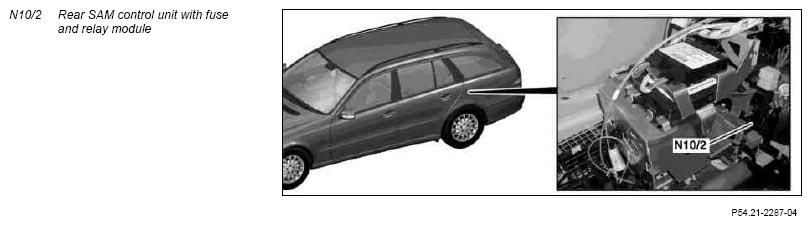

Fig 1: Locating Rear SAM Control Unit With Fuse And Relay Module
G07274715Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Rear SAM control unit with fuse and relay module, location The rear SAM control unit with fuse and relay module (N10/2) is installed in the luggage compartment on the inner wheelhouse on the left viewed in the direction of travel.
Rear SAM control unit with fuse and relay module, task   GF54.21-P-4112-01TJ
