Left front seat adjustment control unit, with memory location/task - GF91.29-P-2106T

MODELS 211.0/2/6 with CODE (275a) Memory package (driver's seat, steering column, mirrors)

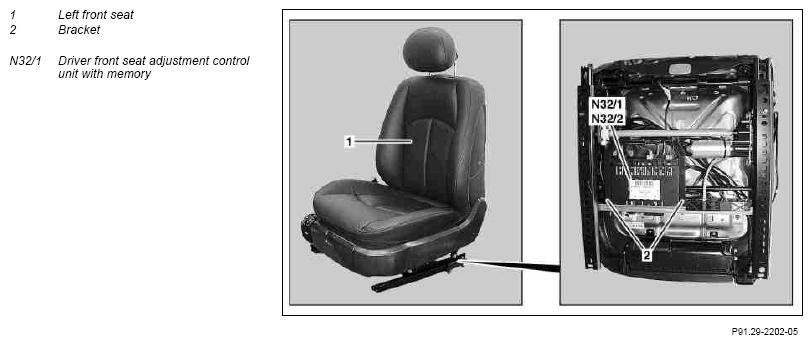

Fig 1: Locating Driver Front Seat Adjustment Control Unit With Memory
G07286246Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Left front seat adjustment control unit, with memory, location The driver-side front seat adjustment control unit with memory (N32/1) is located in the seat frame of the left front seat (1).
Left front seat adjustment control unit, with memory, purpose   GF91.29-P-2106-02T
