CD player with changer, location/task/design/function - GF82.64-P-3113TU

MODEL 211.0/2 with CODE (528) HIGH Class USA

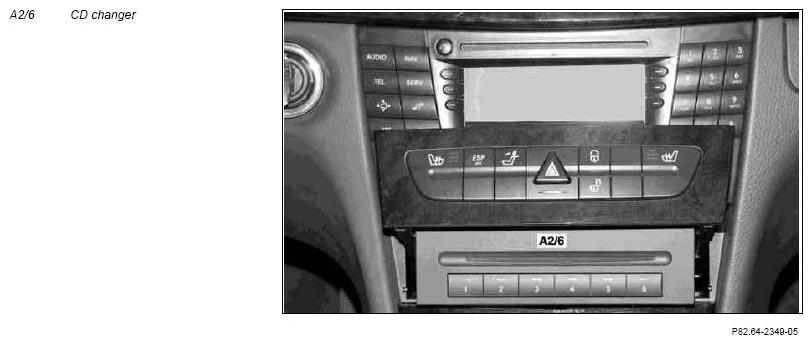

Fig 1: View Of CD Changer

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

CD player with changer, location	The CD changer (A2/6) is installed in the third radio opening in the center console under the COMAND operating, display and control unit (A40/3). It is concealed by the upper control panel control unit (N72/1).
CD player with changer, purpose	Playing audio CDs (Compact Disc) Changing CDs contained in the magazine
CD player with changer, design	6-disk CD changer magazine MOST interface Wake up line The installation position of the CD changer (A2/6) planned by the plant is horizontal. However, other installation positions are possible through the spring adaptation.
CD player with changer, function		GF82.64-P-3113-02TU
