Voice control system control unit, location/task - GF82.70-P-4113TU

MODEL 211.0/2 up to 30.6.06 with CODE (528) HIGH Class USA

Shown on model 211.0

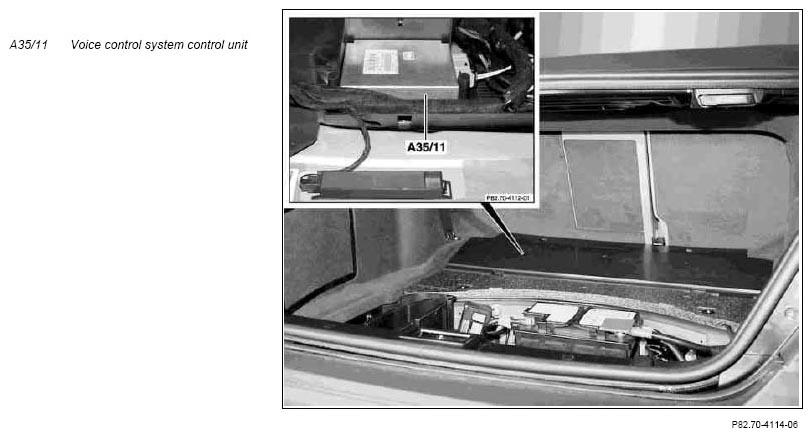

Fig 1: Locating Voice Control System Control Unit - Shown On Model 211.0

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Voice control system control unit, location	The voice control system control unit (A35/11) is installed on the luggage compartment floor on the left behind the rear bench seat.
Voice control system control unit, location	Model 211.2	GF82.70-P-4113-01TSU
Voice control system control unit, task	Control of the communication and navigation systems via voice input Enable a volume control which is dependent on the surroundings Interface with the hands-free system microphone group (A67b1)
