Right front seat adjustment control unit, with memory location/task - GF91.29-P-2107T

MODELS 211.0/2/6 with CODE (242b) Electrically adjustable front passenger seat with memory with CODE (275a) Memory package (driver's seat, steering column, mirrors)

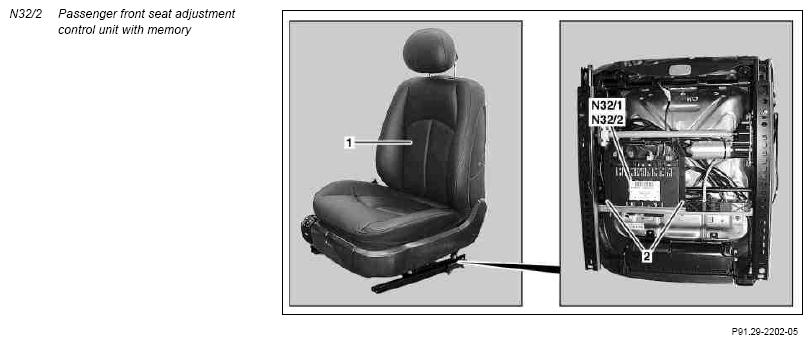

Fig 1: Locating Passenger Front Seat Adjustment Control Unit With Memory
G07286247Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Right front seat adjustment control unit, with memory, location The passenger-side front seat adjustment control unit with memory (N32/2) is located in the seat frame of the front passenger seat.
Right front seat adjustment control unit, with memory, task   GF91.29-P-2107-02T
