Telecommunications control unit, location/task/design/function - GF82.70-P-3114T

MODEL 211.0/2

Shown on model 211.0

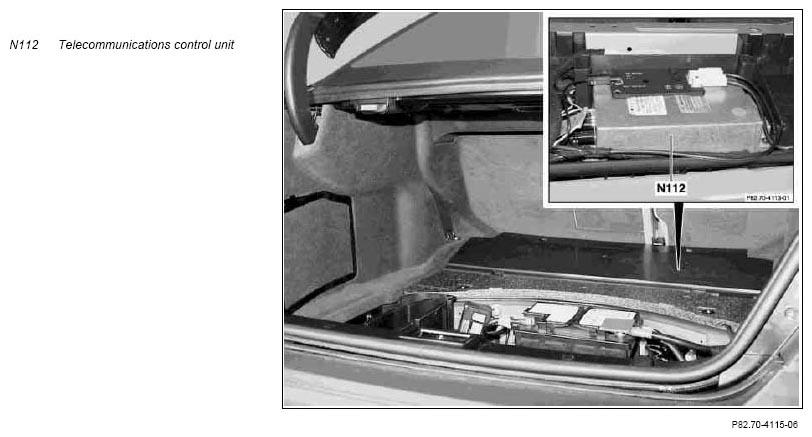

Fig 1: Locating Telecommunications Control Unit - Shown On Model 211.0

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Telecommunications control unit location	The telecommunications control unit (N112) is located on the luggage compartment floor behind the rear bench seat.
	Model 211.2 up to 31.5.06	GF82.70-P-3114-01T
Telecommunications control unit, task	The telecommunications control unit is the communications platform for: Telephone/SMS Emergency call Service and breakdown assistance Traffic services Internet
Telecommunication control unit design	up to 31.5.06	GF82.70-P-3114-03T
Telecommunications control unit function	up to 31.5.06	GF82.70-P-3114-04T
