Instrument cluster (IC), location/task - GF54.30-P-3039T

MODEL 211.0/2 up to 31.5.06 except CODE (494) USA version except CODE (498) Japan version

MODEL 211.0/2 up to 30.6.06 with CODE (494) USA version with CODE (498) Japan version

Location

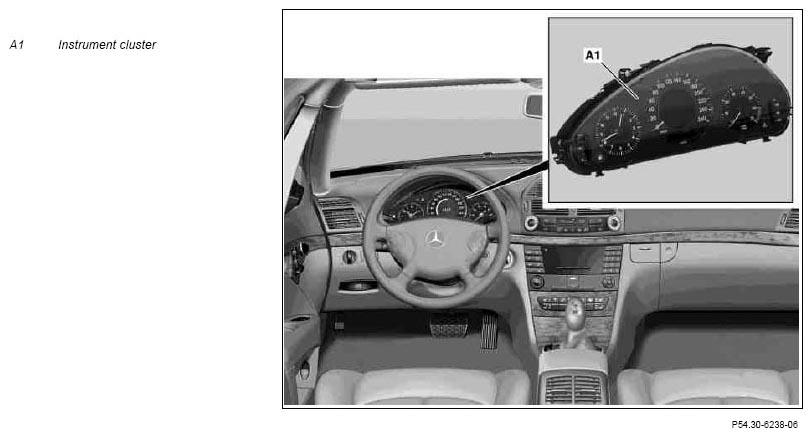

Fig 1: View Of Instrument Cluster

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Instrument cluster (IC), location	The instrument cluster (A1) is located in the instrument panel.
Instrument cluster (IC), task		GF54.30-P-3039-02T
