Audio gateway control unit, location/task/design/function - GF82.62-P-3102T

MODEL 211.0/2 except CODE (529) HIGH Class Japan

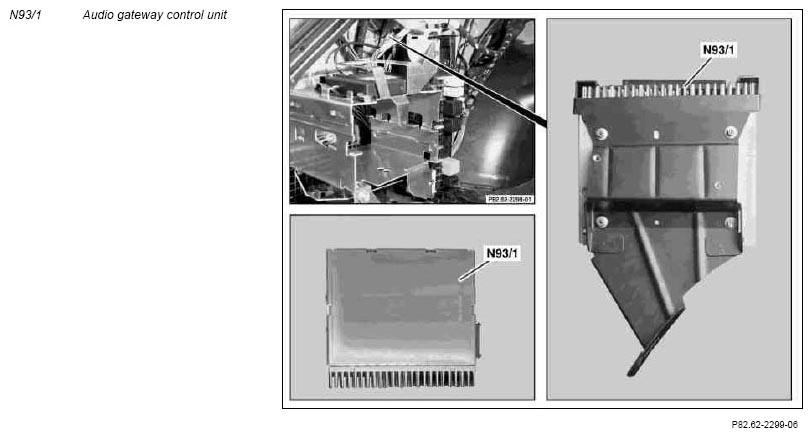

Fig 1: View Of Audio Gateway Control Unit

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Audio gateway control unit, location	The audio gateway control unit (N93/1) is located on the side wall behind the left wheelhouse.
Audio gateway control unit, task	Central control of audio processing and amplification stages Sound settings AM/FM receiver, RDS decoder CAN-B/MOST interface MOST central diagnostic interface DRO microphone input
Audio gateway control unit, design		GF82.62-P-3102-03T
Audio gateway control unit, function		GF82.62-P-3102-04T
