CD player with changer, location/task/design/function - GF82.64-P-3113TJ

MODEL 211.0/2 with CODE (529) HIGH Class Japan

Shown on model 211.0

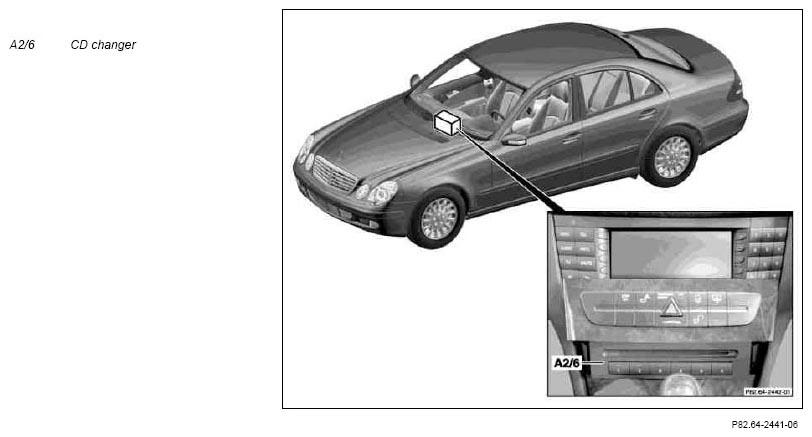

Fig 1: Locating CD Changer - Shown On Model 211.0

G07285128

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

CD player with changer, location	The CD changer (A2/6) is located in the third radio opening of the center console below the COMAND operating, display and control unit (A40/3). It is concealed by the lower control panel.
CD player with changer, task	Playing audio CDs (Compact Disc) Changing the CDs in the magazine
CD player with changer, design	CD changer magazine for 6 CD's MOST interface Wake-up line The factory-planned installation position of the CD changer (A2/6) is horizontal. However, other installation positions are possible through the spring adaptation.
CD player with changer, function		GF82.64-P-3113-02TJ
