CD player with changer, location/task/design/function - GF82.64-P-3113T

Model 211.0/2

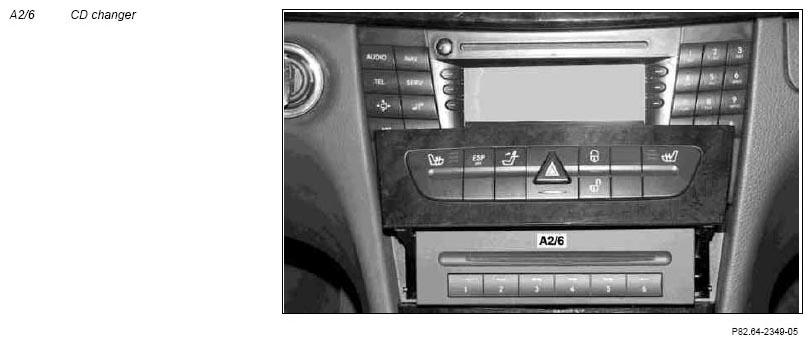

Fig 1: View Of CD Changer

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

CD player with changer, location	The CD changer (A2/6) is installed in the 3rd radio opening of the center console and is concealed by the upper control panel control unit (N72/1). The standard installation position of the CD changer (A2/6) is horizontal. However, other installation positions are possible through the spring adaptation.
CD player with changer, purpose	Playing audio CDs Changing the CDs in the magazine
CD player with changer, design	6-disk CD changer magazine MOST interface Wake-up line input
CD player with changer, function		GF82.64-P-3113-02T
