Navigation processor, location/task/design/function - GF82.85-P-3103TA

MODELS 211.0/2 with CODE (527) navigation module for COMAND

Shown on model 211.0

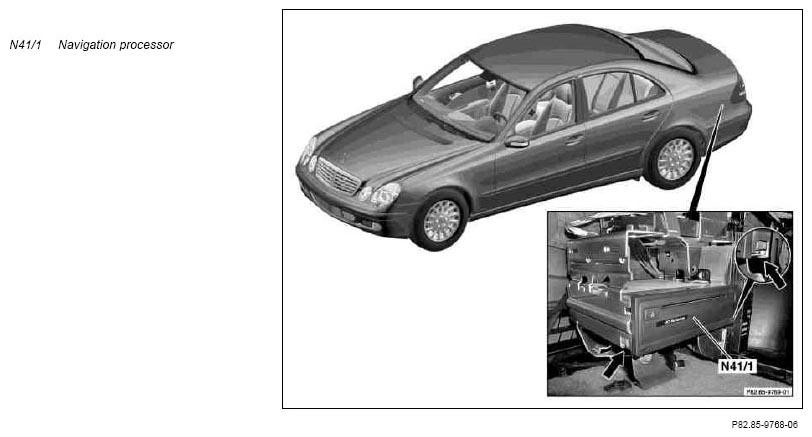

Fig 1: View Of Navigation Processor - Shown On Model 211.0

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Navigation processor, location	On models 211.0/2 the navigation processor (N41/1) is located in the luggage compartment on the left side wall under the TV tuner (A2/10).
Navigation processor, task		GF82.85-P-3103-03TA
Navigation processor, design	The navigation processor (N41/1) includes the following components: GPS computer Yaw rate sensor (gyro sensor) DVD disk drive MOST interface
Navigation processor, function		GF82.85-P-3103-07TA
