Audio gateway control unit location/task/design/function - GF82.62-P-3102TU

MODEL 211.0/2 up to 30.6.06 with CODE (528) HIGH Class USA

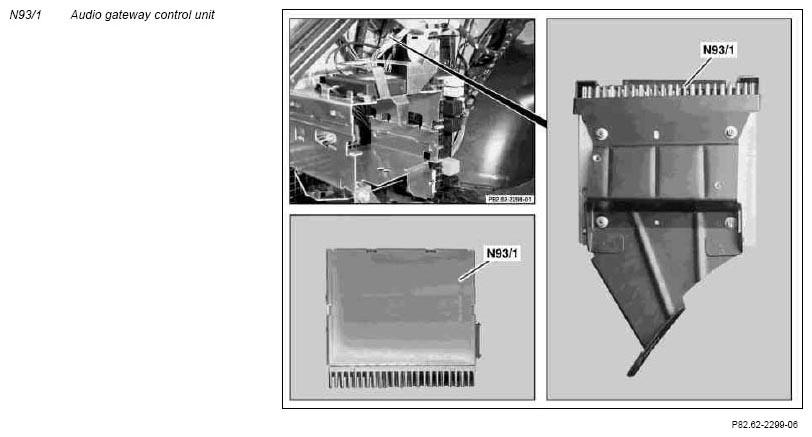

Fig 1: View Of Audio Gateway Control Unit

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Audio gateway control unit Location	The audio gateway control unit (N93/1) is located on the side wall behind the left wheelhouse.
Audio gateway control unit Purpose	Central control of the audio processing stages and audio amplifier stages Sound settings AM/FM receiver, RDS decoder CAN-B/MOST interface Central MOST diagnostic interface Microphone input (Sound Control)
Audio gateway control unit Body		GF82.62-P-3102-03TU
Audio gateway control unit Function		GF82.62-P-3102-04TU
