Body Panels Location Index

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

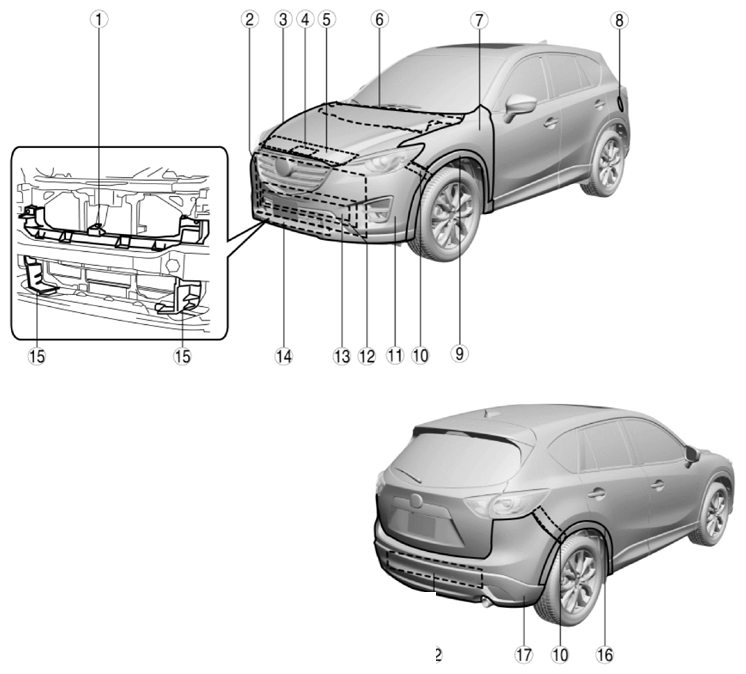

Fig 1: Body Panels Related Components

G10938284

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Set plate (See SET PLATE REMOVAL/INSTALLATION .)
2	Shroud panel (See SHROUD PANEL REMOVAL/INSTALLATION .)
3	Hood (See HOOD REMOVAL/INSTALLATION .) (See HOOD DISASSEMBLY/ASSEMBLY .) (See HOOD ADJUSTMENT .)
4	Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
5	Shroud upper member (See SHROUD UPPER MEMBER REMOVAL/INSTALLATION .)
6	Cowl panel (See COWL PANEL REMOVAL/INSTALLATION .)
7	Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
8	Fuel-filler lid (See FUEL-FILLER LID REMOVAL/INSTALLATION .) (See FUEL-FILLER LID ADJUSTMENT .)
9	Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
10	Bumper slider (See BUMPER SLIDER REMOVAL/INSTALLATION .)
11	Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION .) (See FRONT BUMPER DISASSEMBLY/ASSEMBLY .)
12	Bumper reinforcement (See FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION .) (See REAR BUMPER REINFORCEMENT REMOVAL/INSTALLATION .)
13	Energy-absorbing form (See ENERGY-ABSORBING FORM REMOVAL/INSTALLATION .)
14	Bumper stiffener lower (See BUMPER STIFFENER LOWER REMOVAL/INSTALLATION .)
15	Seal plate (See SEAL PLATE REMOVAL/INSTALLATION .)
16	Rear over fender (See REAR OVER FENDER REMOVAL/INSTALLATION .)
17	Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION .) (See REAR BUMPER DISASSEMBLY/ASSEMBLY .)
