Seal Board Upper Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

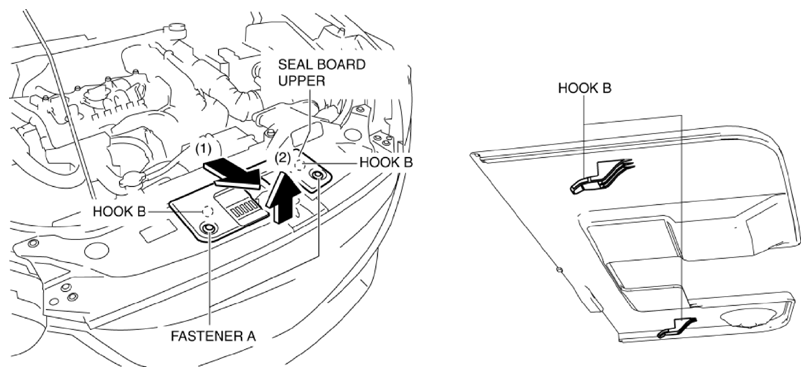

- Remove fasteners A.
Courtesy of MAZDA MOTORS CORP.
- Pull the seal board upper in the direction of the arrow in the order of (1), (2) and remove it while detaching hooks B.
- Install in the reverse order of removal.
