Seal Plate Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  4. Remove fasteners A.

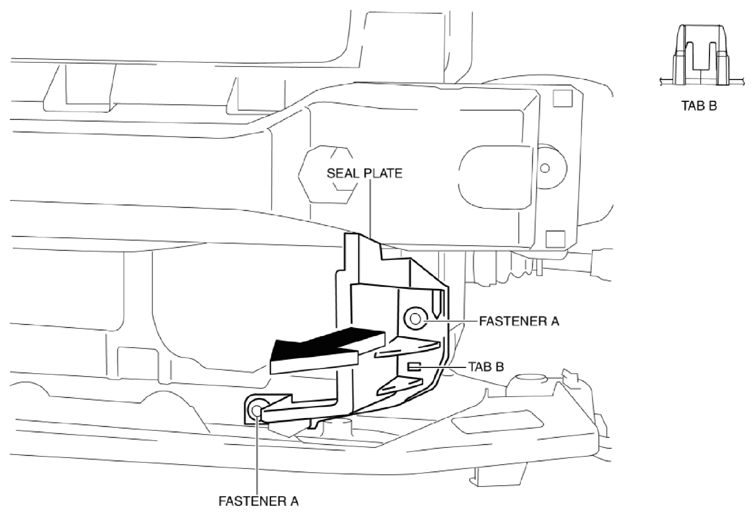

    Fig 1: Removing Seal Plate
    G10938314Courtesy of MAZDA MOTORS CORP.
  5. Remove the seal plate in the direction of the arrow shown in the figure while detaching tab B.
  6. Install in the reverse order of removal.
