Front Bumper Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Affix the protective tape to the position (vehicle body side) shown in the figure to prevent scratches and damage.

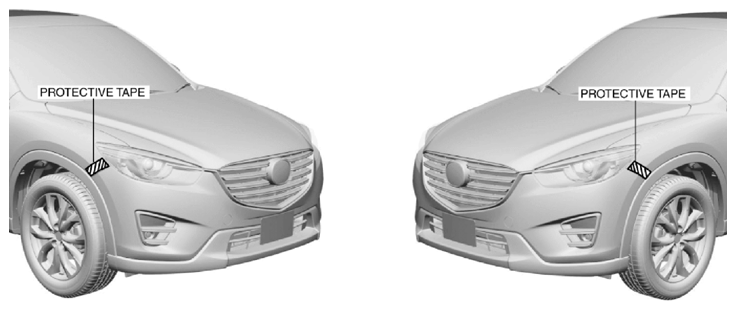

Fig 1: Applying Protective Tape To Vehicle Body Side
Courtesy of MAZDA MOTORS CORP.
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the fasteners.

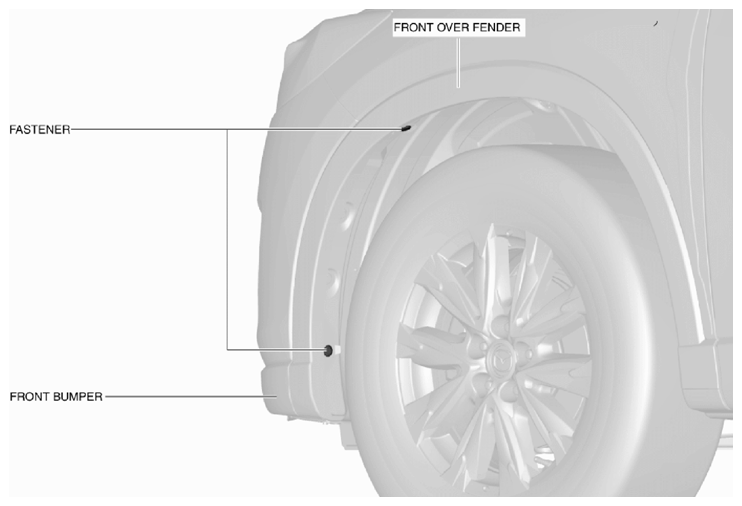

Fig 2: Identifying Front Bumper, Front Over Fender And Fastener
Courtesy of MAZDA MOTORS CORP.
Pull the front over fender in the direction of the arrow shown in the figure, set the front over fender out of the way while detaching the clips.
CAUTION:
- After removing the clips, insert a rag between the front fender panel and the front over fender to prevent the front fender panel and the clips from being damaged.

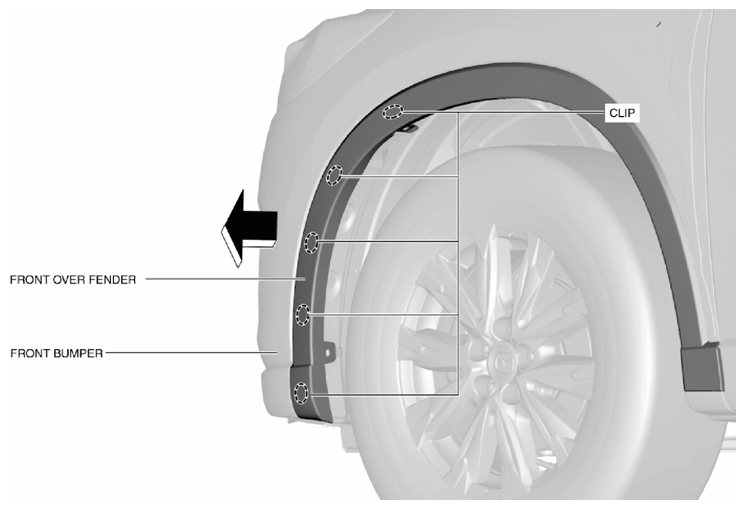

Fig 3: Pulling Front Over Fender
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and fasteners.

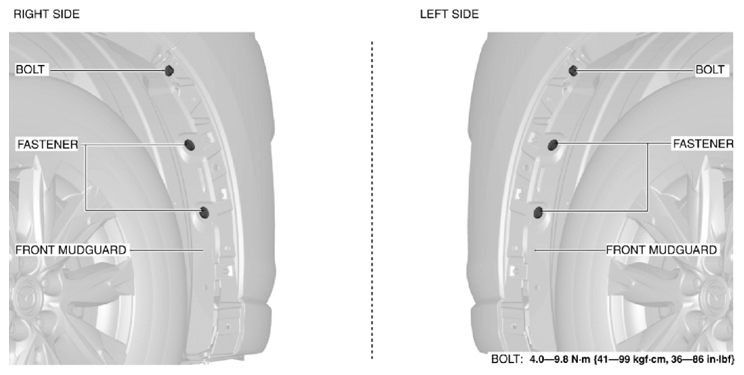

Fig 4: Identifying Front Mudguard, Bolts And Fasteners
Courtesy of MAZDA MOTORS CORP.
Remove the screws and fasteners.

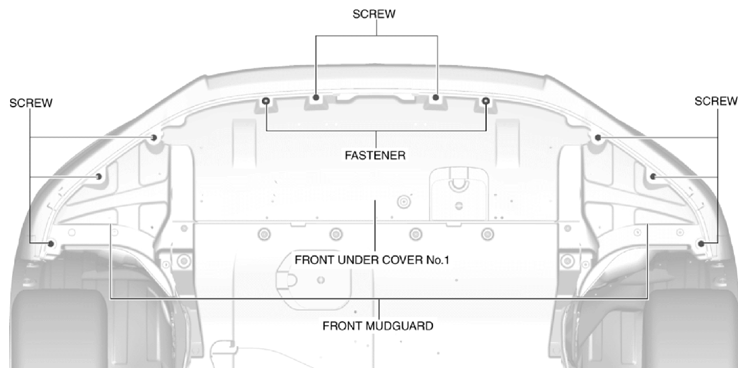

Fig 5: Identifying Front Under Cover No. 1, Front Mudguard, Screws And Fasteners
Courtesy of MAZDA MOTORS CORP.
Remove the fasteners which can be verified at the position where front under cover No. 1 was pulled back.

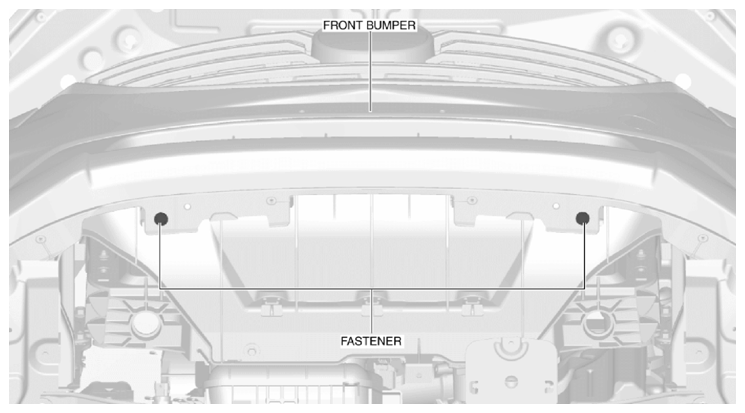

Fig 6: Identifying Front Bumper And Fasteners
Courtesy of MAZDA MOTORS CORP.
Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
Remove the screws and fasteners.

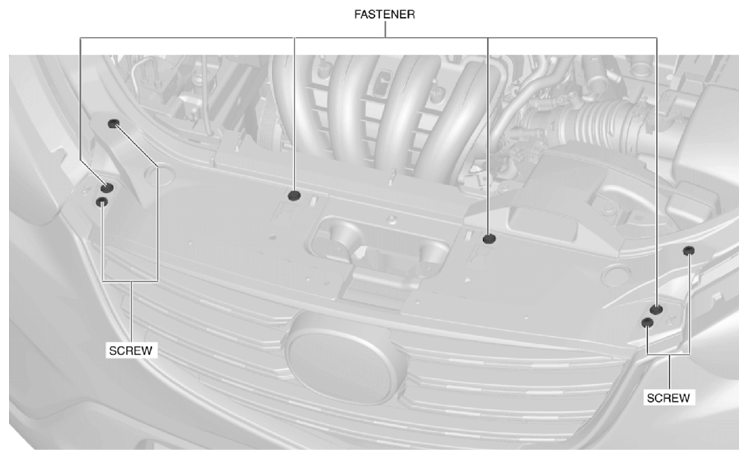

Fig 7: Identifying Front Bumper Screws And Fasteners
Courtesy of MAZDA MOTORS CORP.
Pull the front bumper in the direction of the arrow shown in the figure, then remove the tabs.
CAUTION:
- The front bumper and front bumper slider are engaged firmly. If they are disengaged forcibly the bumper could fall and be damaged. Perform the servicing carefully when disengaging the front bumper from the front bumper slider.
- When disengaging the front bumper from the front bumper slider, the front bumper could fall and be damaged. Support the front bumper so that it does not fall.

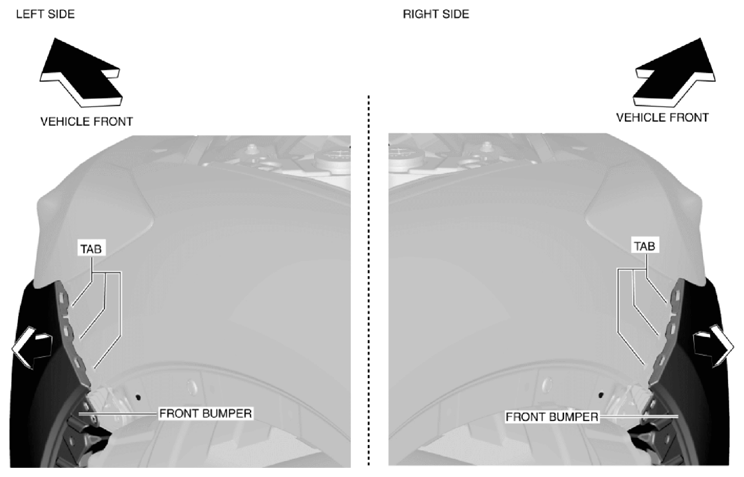

Fig 8: Pulling Front Bumper
Courtesy of MAZDA MOTORS CORP.

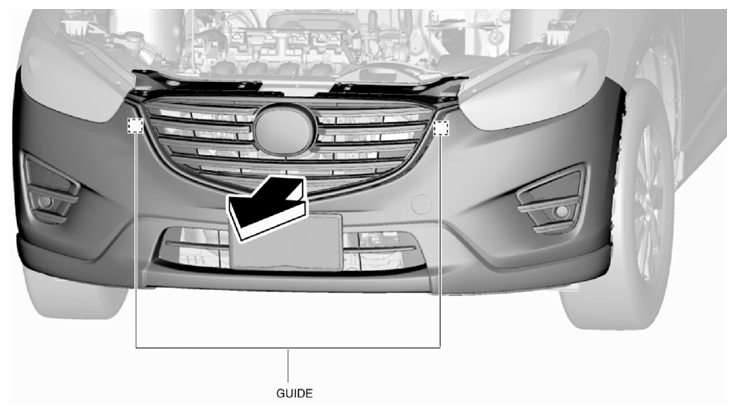

Pull the front bumper in the direction of the arrow shown in the figure and remove it while detaching the guides.

Fig 9: Pulling Front Bumper With Guides
Courtesy of MAZDA MOTORS CORP.
Disconnect the front fog light connector. (with front fog lights)
CAUTION:
- After removing front bumper, it may hit the front over fender and cause a damage and/or injury. Perform the following procedure to prevent the front over fender from being damaged.
- Fix the front over fender and front fender panel with protective tape.

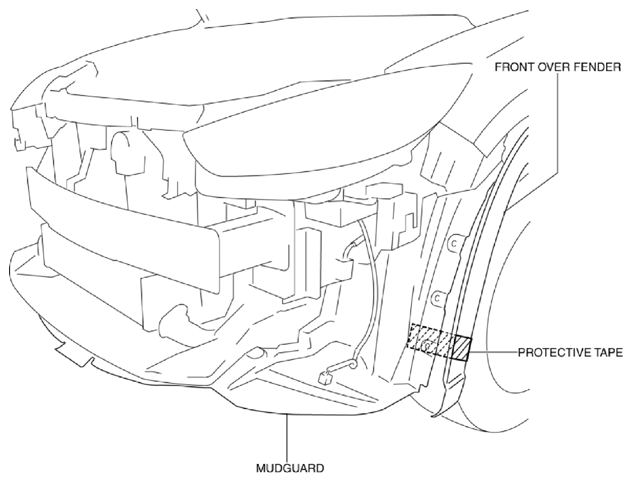

Fig 10: Applying Protective Tape To Front Over Fender And Front Fender Panel
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
