Bumper Stiffener Lower Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
    2. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION .)
    3. Seal plate (See SEAL PLATE REMOVAL/INSTALLATION .)
    4. Front under cover No. 1 (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
  3. Remove bolts A.

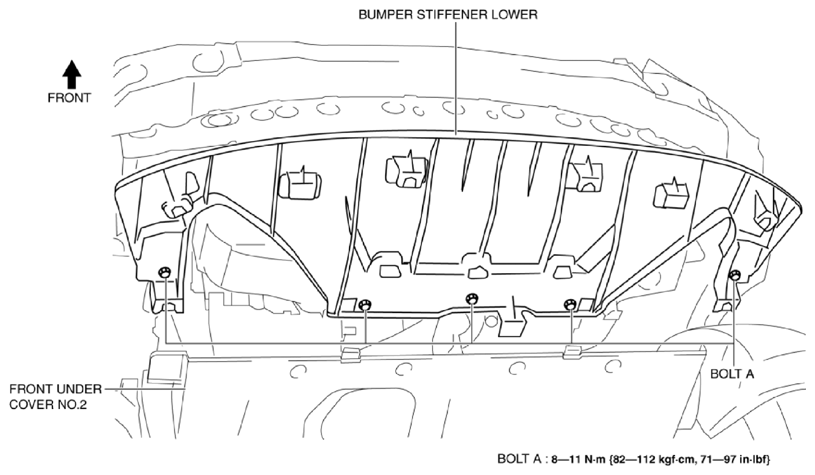

    Fig 1: Identifying Bumper Stiffener Lower, Front Under Cover No. 2 And Bolt A With Torque Specification
    G10938312Courtesy of MAZDA MOTORS CORP.
  4. Pull the bumper stiffener lower in the direction of the arrow (1), (2) shown in the figure, detach hooks B.

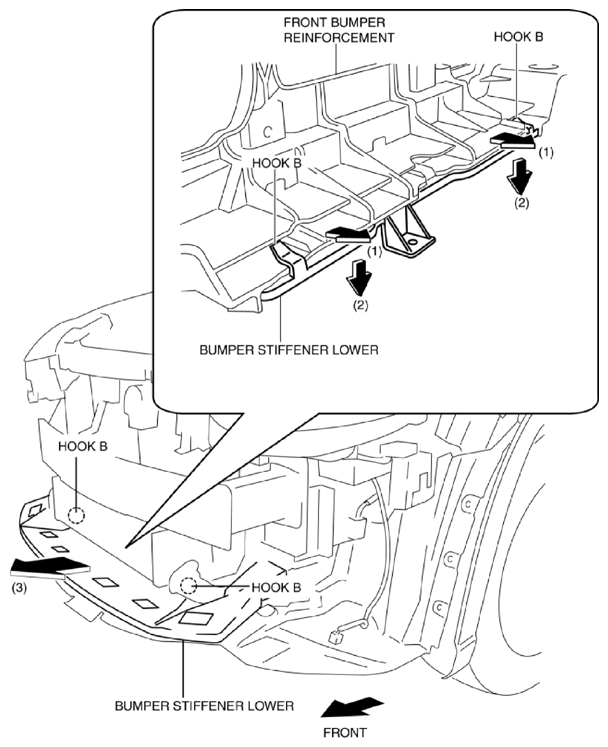

    Fig 2: Pulling Bumper Stiffener Lower
    G10938313Courtesy of MAZDA MOTORS CORP.
  5. Remove the bumper stiffener lower in the direction of the arrow (3) shown in the figure.
  6. Install in the reverse order of removal.
