Fuel-Filler Lid Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove bolts.

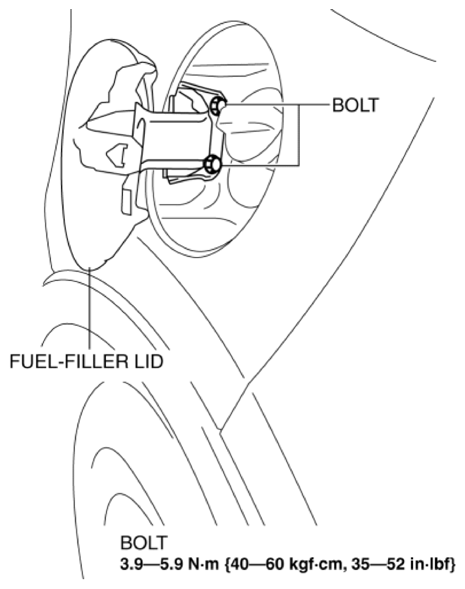

Fig 1: Identifying Fuel-Filler Lid And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the fuel-filler lid.
Install in the reverse order of removal.
Adjust the fuel-filler lid. (See FUEL-FILLER LID ADJUSTMENT .)
