Front Bumper Disassembly/Assembly

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fog lights. (with front fog lights) (See FRONT FOG LIGHT REMOVAL/INSTALLATION )
  2. Remove the radiator grille. (See RADIATOR GRILLE REMOVAL/INSTALLATION )
  3. Disassemble in the order indicated in the table.

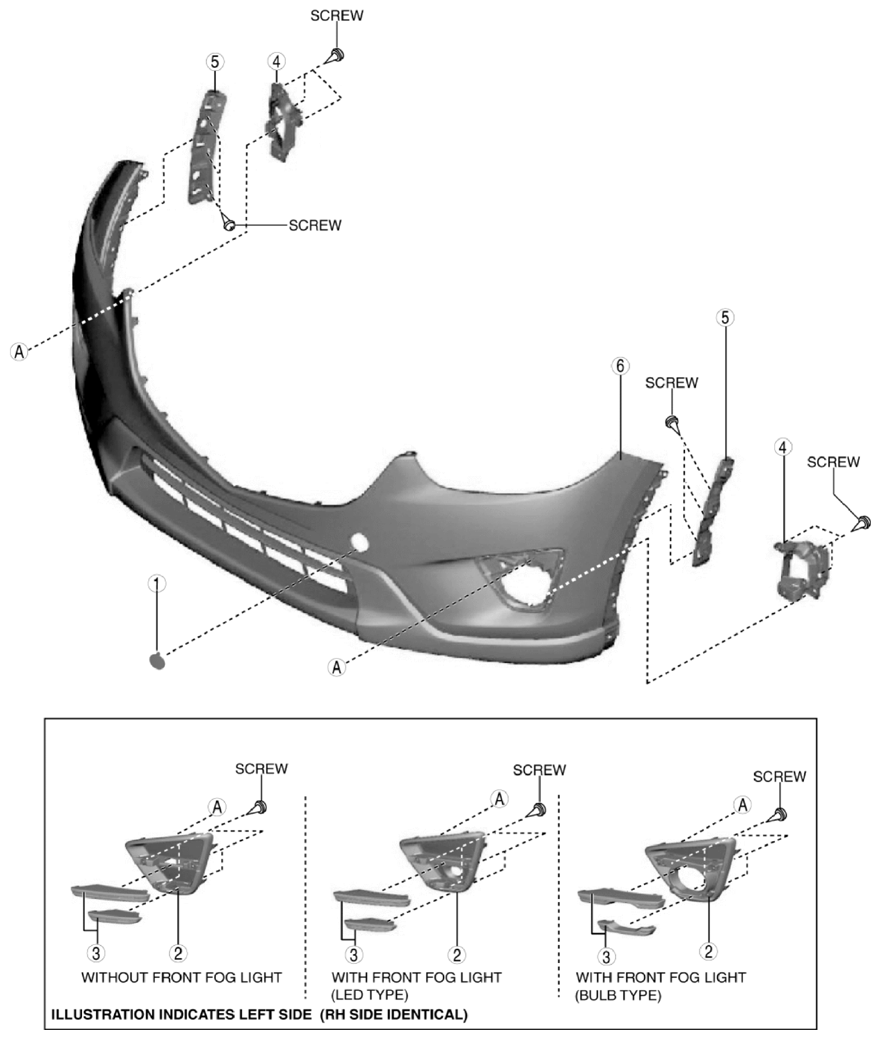

    Fig 1: Exploded View Of Front Bumper
    G10938304Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Towing hook cover
    2 Front fog light cover (with front fog light) Hole cover (without front fog lights)
    3 Front fog light cover garnish (with front fog lights) Hole cover garnish (without front fog lights)
    4 Front fog light bracket (with front fog lights (LED type))
    5 Front bumper bracket
    6 Front bumper face
  4. Assemble in the reverse order of disassembly.
