Shroud Upper Member Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
2. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION .)
3. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
Remove bolts.

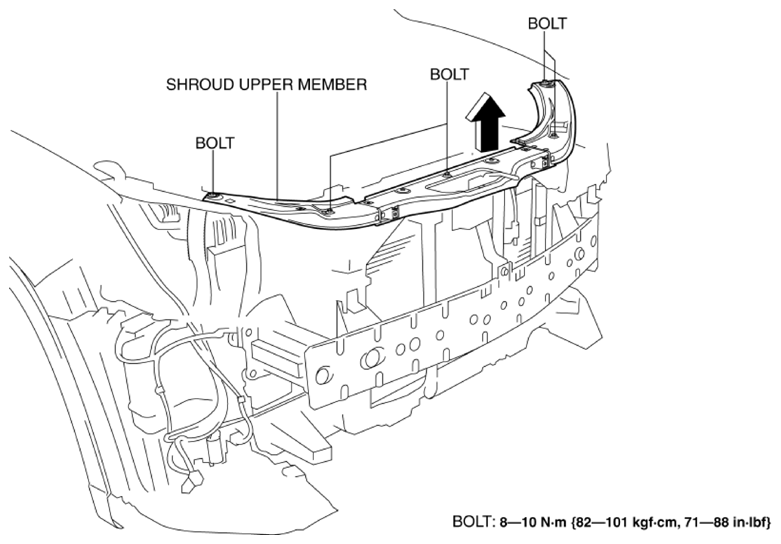

Fig 1: Removing Shroud Upper Member
Courtesy of MAZDA MOTORS CORP.
Remove the shroud upper member in the direction of the arrow shown in the figure.
Install in the reverse order of removal.
