Front Over Fender Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove fastener A.

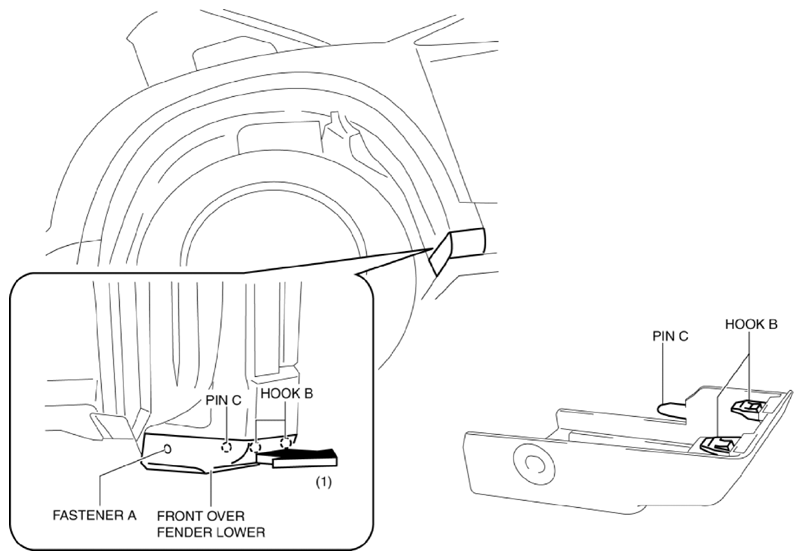

Fig 1: Pulling Front Over Fender Lower
Courtesy of MAZDA MOTORS CORP.
Pull the front over fender lower in the direction of the arrow (1) while removing hook B and pin C.
Remove fasteners D.

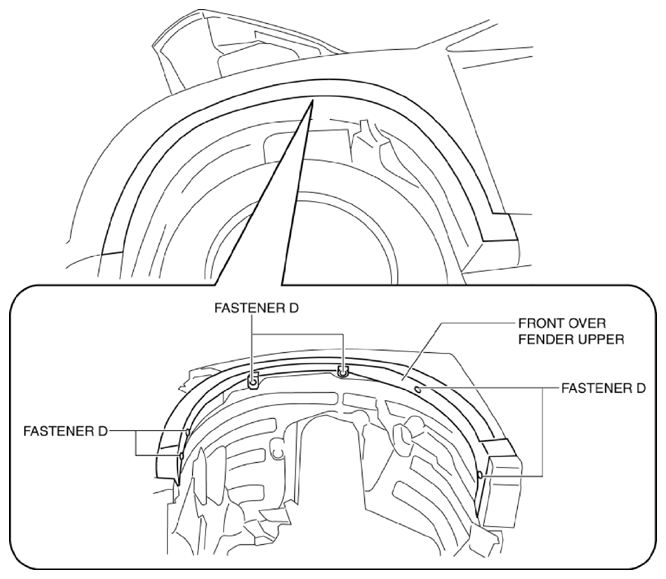

Fig 2: Identifying Front Over Fender Upper And Fasteners
Courtesy of MAZDA MOTORS CORP.
Pull the front over fender upper in the direction of the arrow (2) while removing clips E.

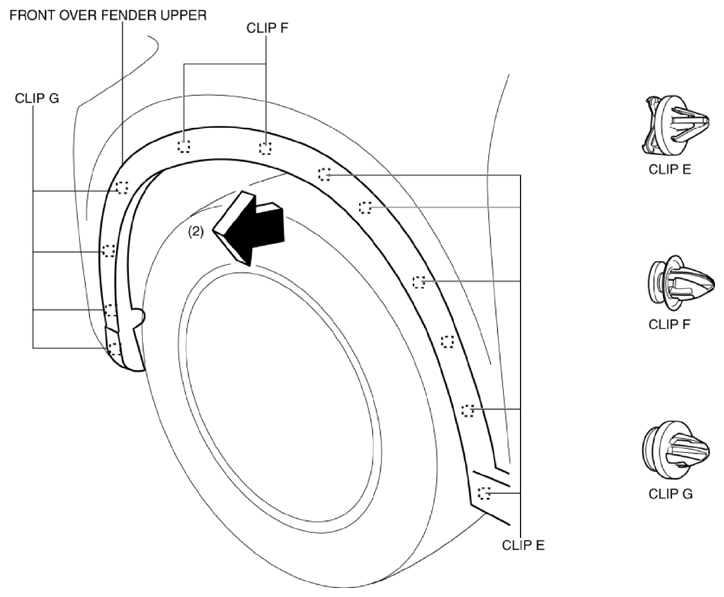

Fig 3: Pulling Front Over Fender Upper
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

WARNING:

When installing the front over fender, verify that clips E, F, G are not damaged, if they are damaged, replace them with new ones. Otherwise, the front over fender may fall off while the vehicle is being driven, leading to a serious accident.
