Energy-Absorbing Form Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)

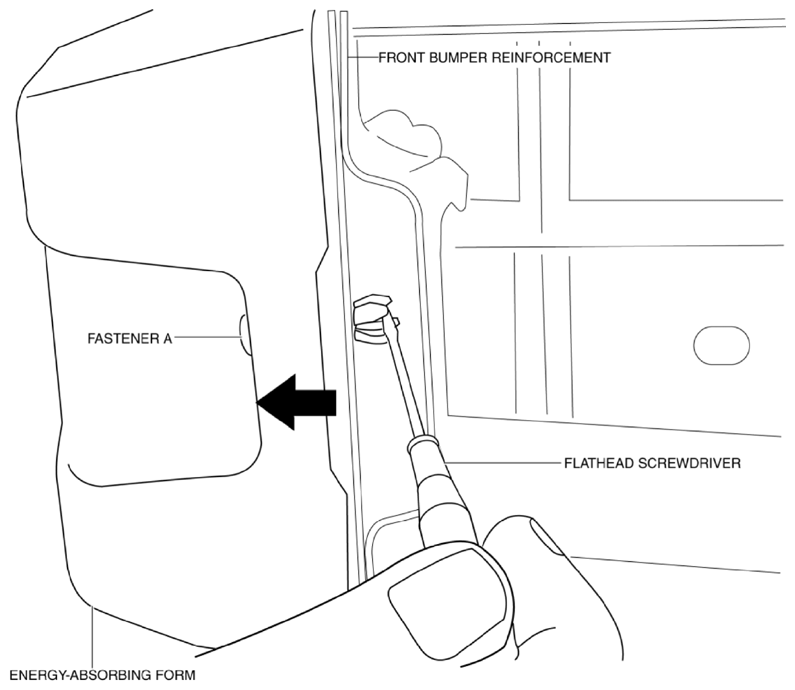

  4. Insert the flathead screwdriver shown in the figure, push fasteners A for back side of front bumper reinforcement arrow shown in the figure.
    Fig 1: Pushing Fasteners A For Back Side Of Front Bumper Reinforcement
    G10938310Courtesy of MAZDA MOTORS CORP.

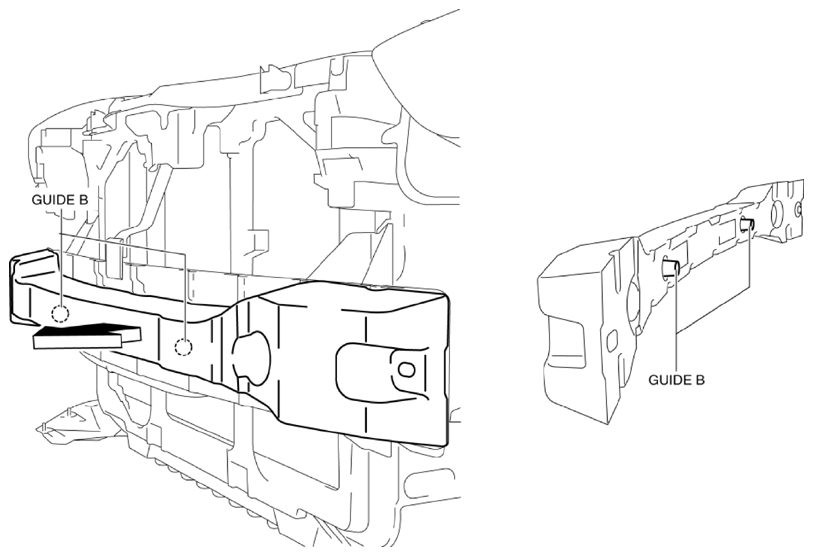

  5. Pull the energy-absorbing form in the direction of the arrow shown in the figure while detaching guides B
    Fig 2: Pulling Energy-Absorbing
    G10938311Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
